DTC 3-6: Throttle Position Sensor Signal - TPS
DTC 3-6: Throttle Position Sensor Signal - TPS

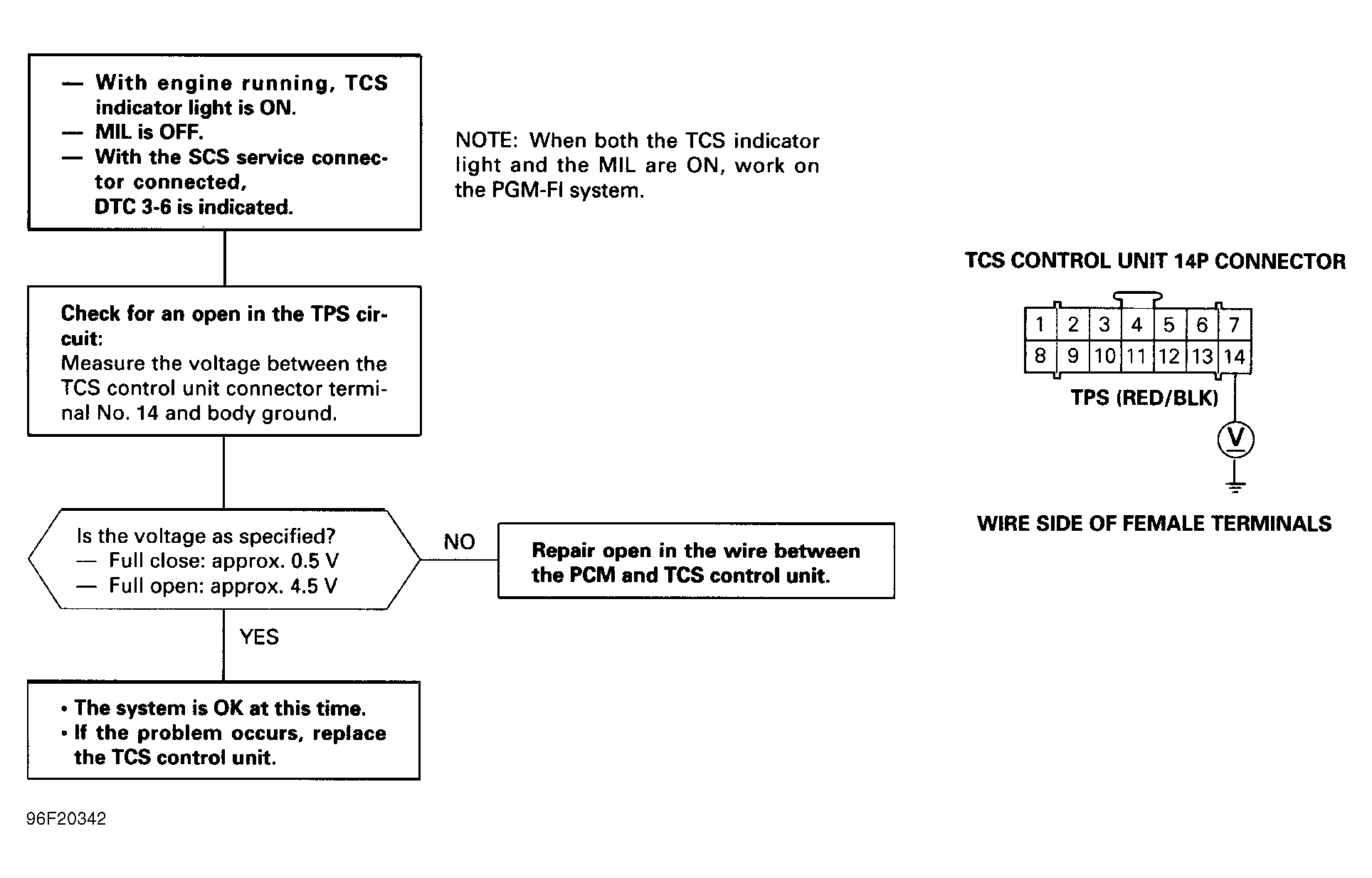

Fig 1: DTC 3-6: Throttle Position Sensor Signal - TPS
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
