DTC 4-9: Abs Inoperative
DTC 4-9: Abs Inoperative

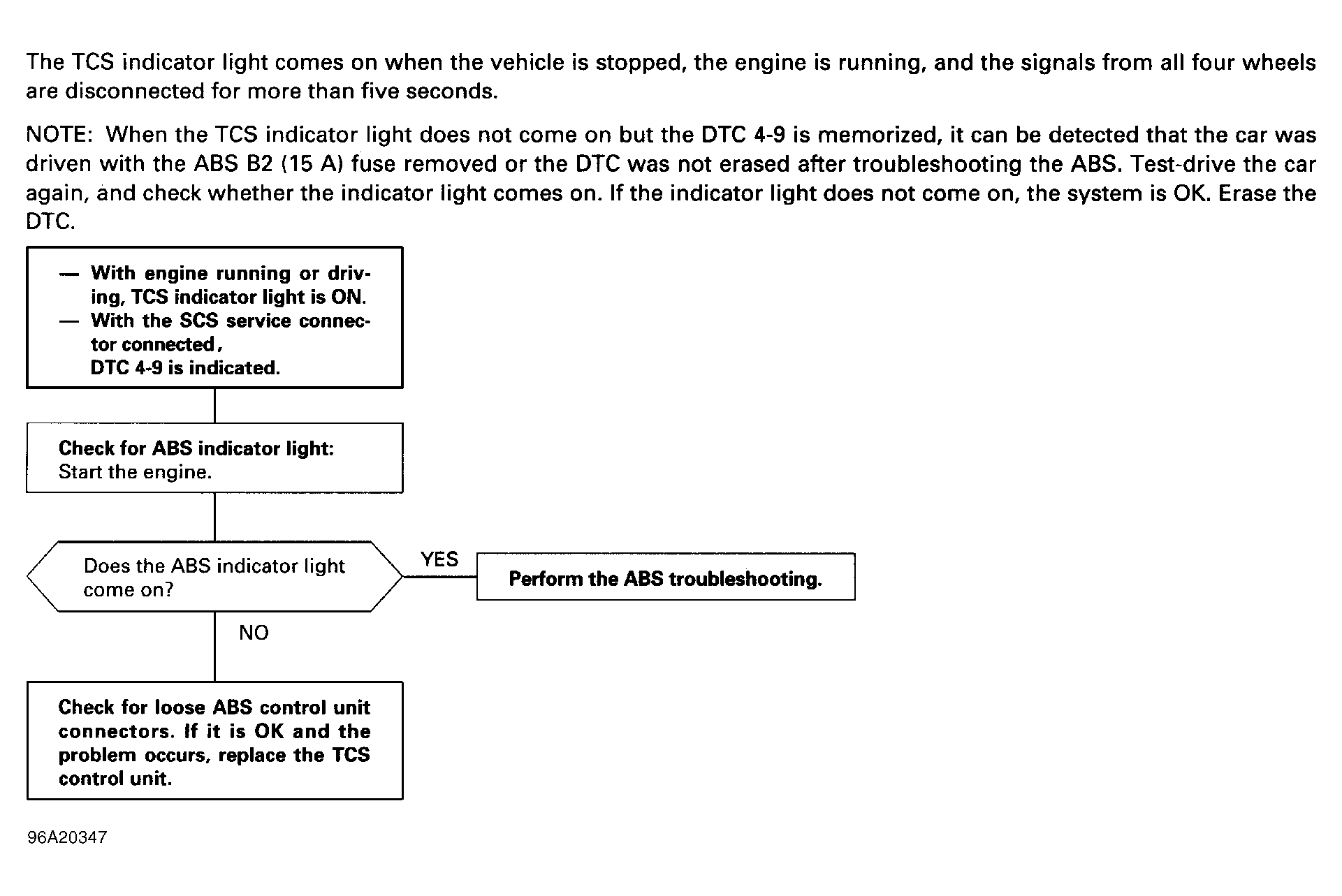

Fig 1: DTC 4-9: ABS Inoperative
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
