Without Memory Mirrors: Notes

  1. Remove the driver's door panel.
  2. Disconnect the 10P connector from the power mirror switch. See Fig 1 .

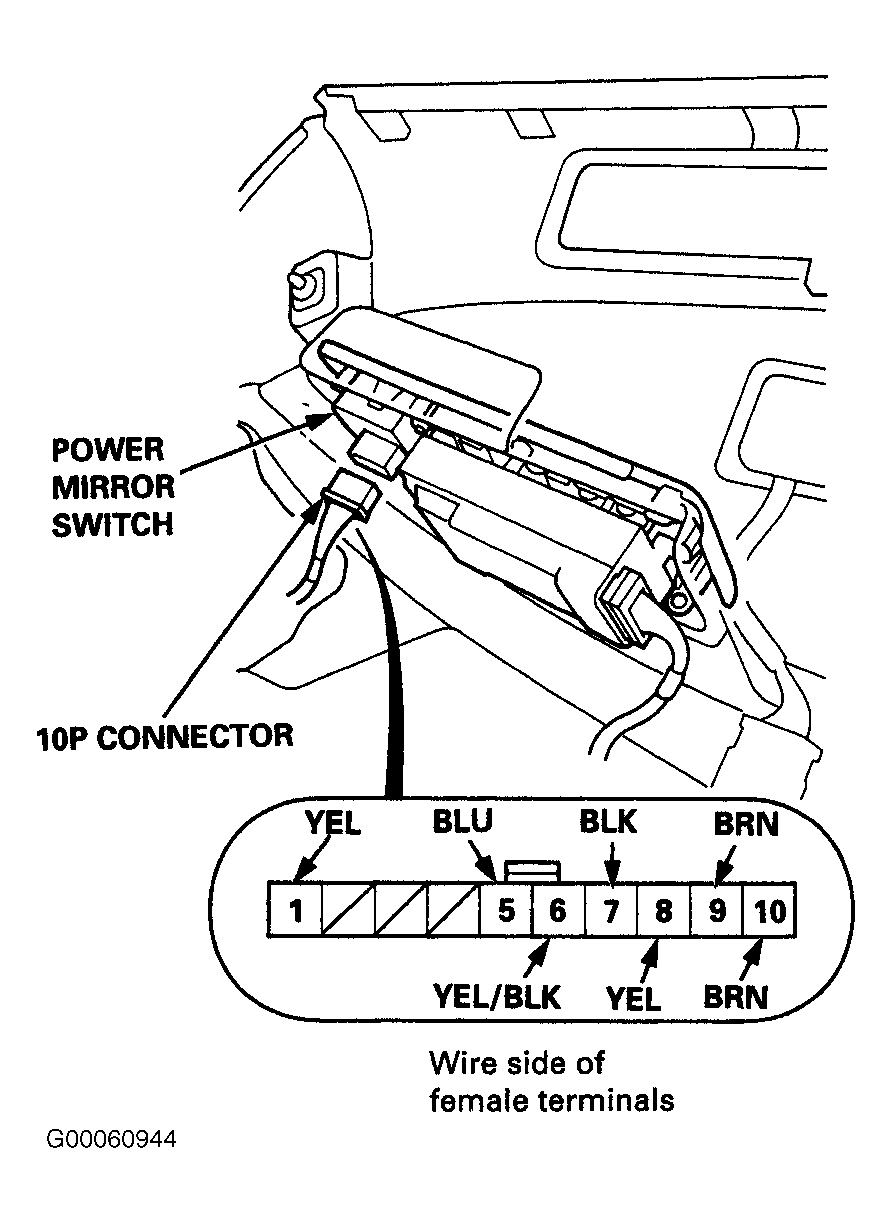

Fig 1: Identifying Power Mirror Switch Connector Terminals
G00060944
