Switch Test

Remove the driver's door panel. See DOOR PANEL .
Disconnect the connectors from the power mirror switch. See Figure .
Check for continuity between the terminal in each switch position according to the table. See Fig 1 .

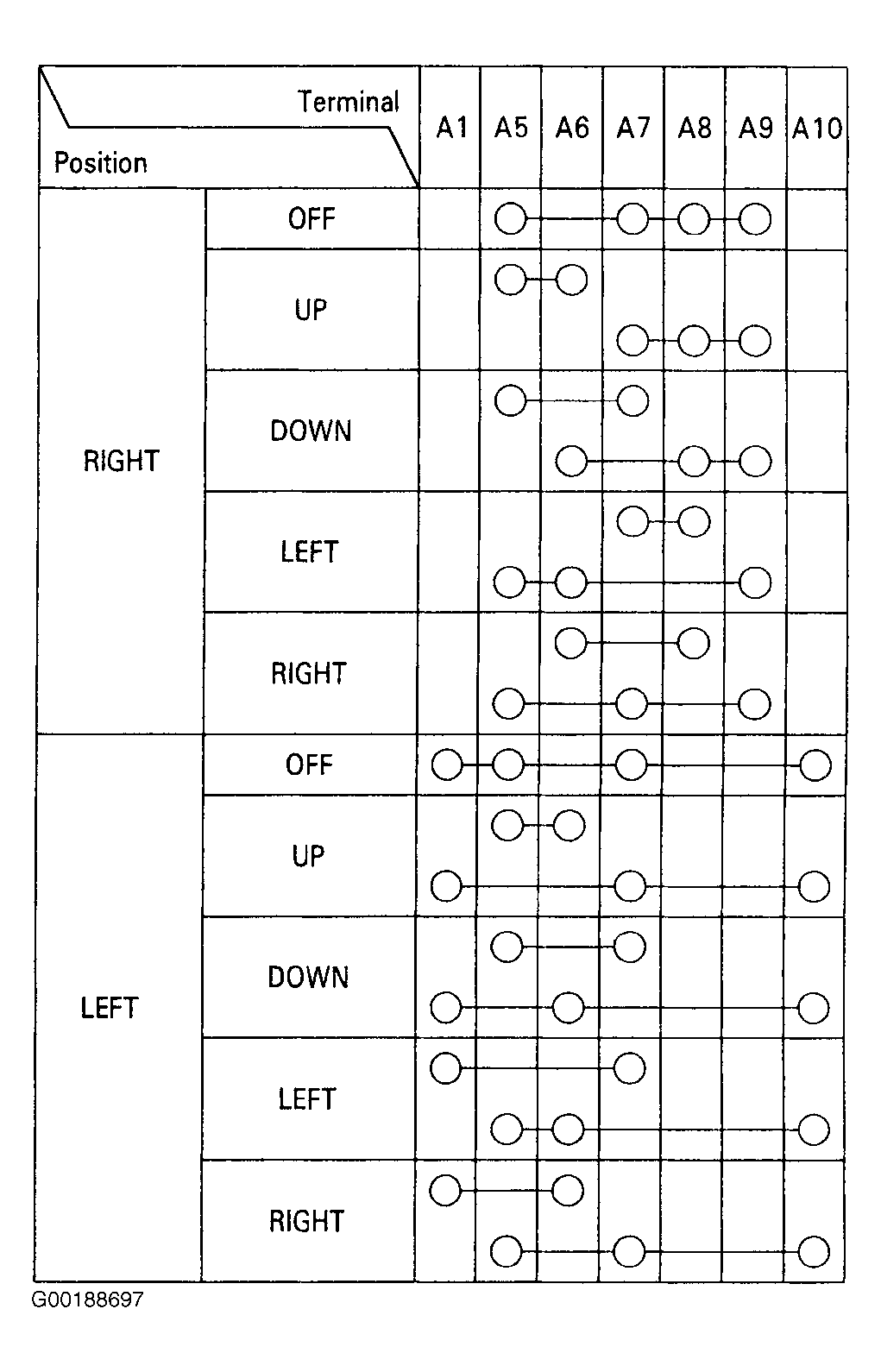

Fig 1: Switch Continuity Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
