Multiplex Power Window Control Unit Tests

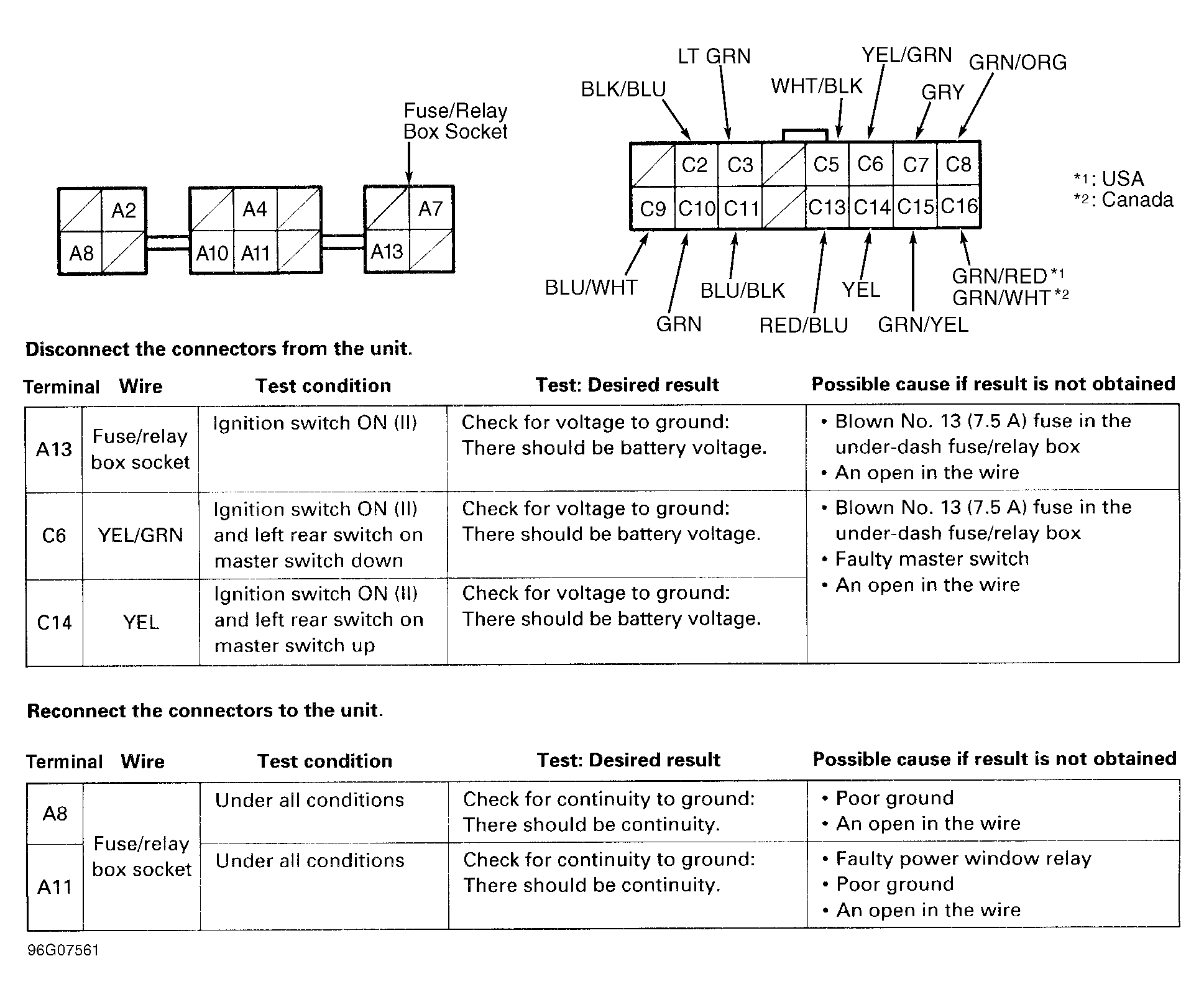

Fig 1: Driver's Multiplex Power Window Control Unit Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.

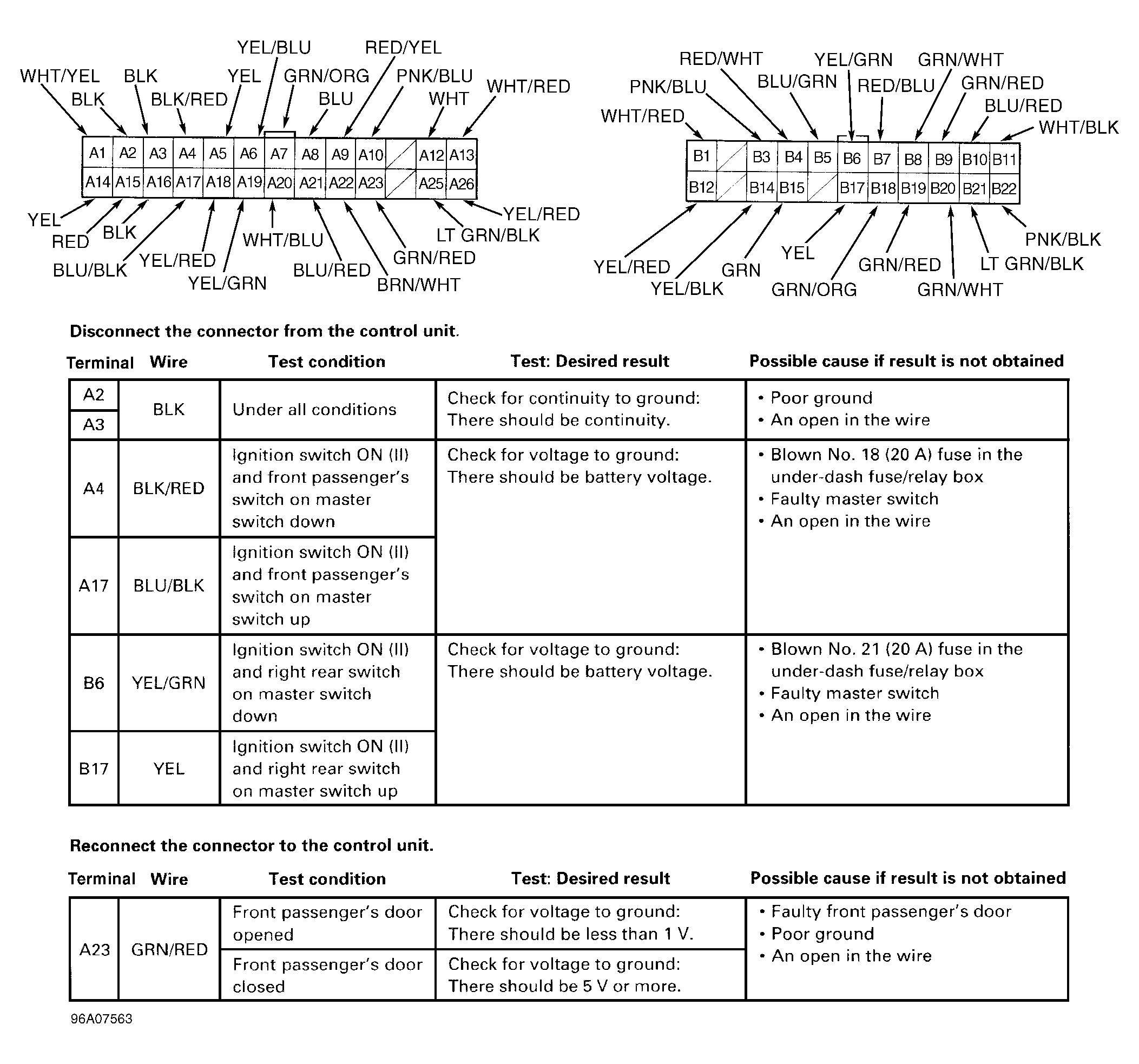

Fig 2: Door Multiplex Power Window Control Unit Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Passenger's Multiplex Power Window Control Unit Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
