Remove & Installation

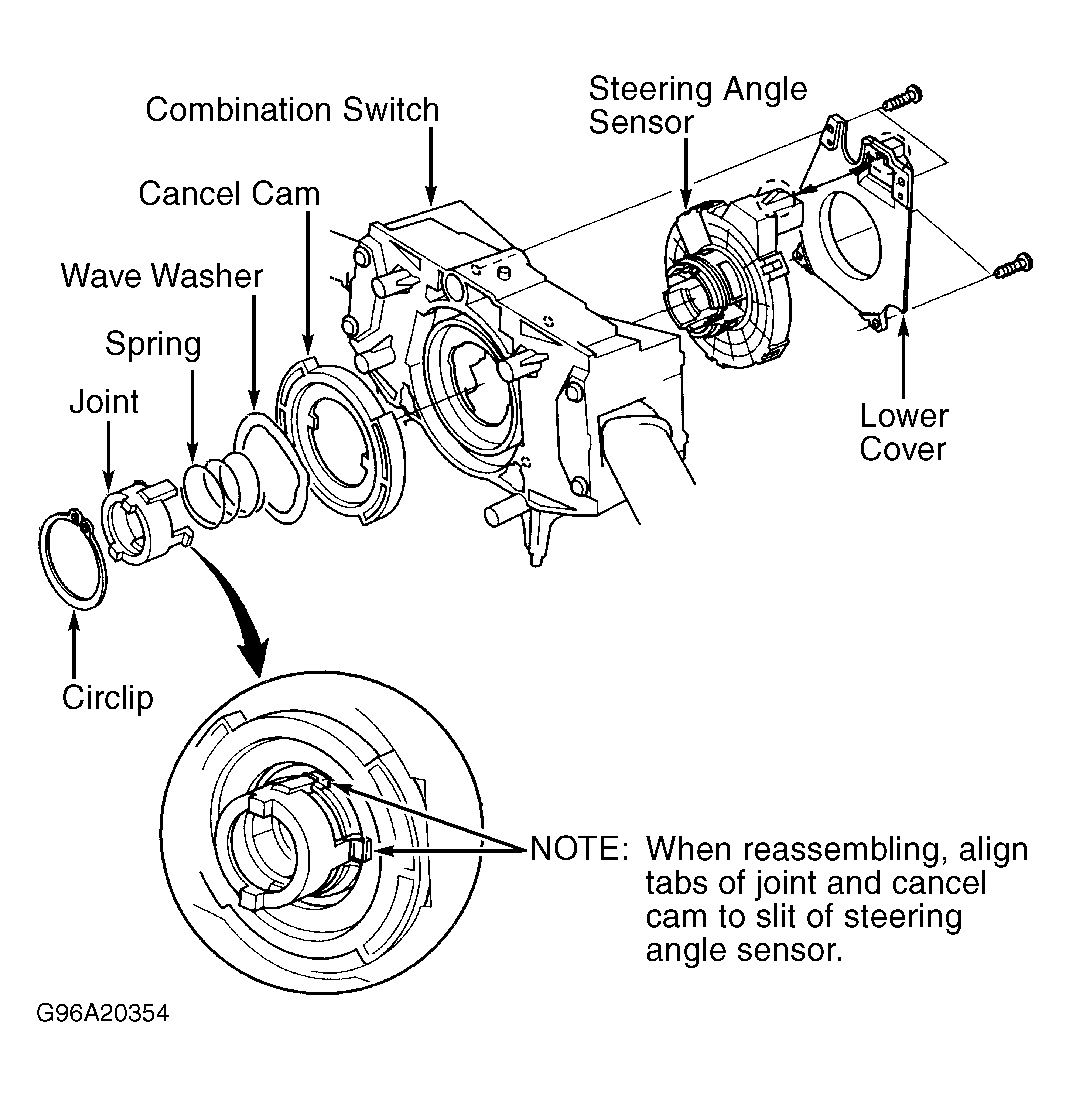

Disable air bag system. See AIR BAG RESTRAINT SYSTEM article. Remove steering wheel and combination switch. See STEERING COLUMN article. Remove circlip and steering angle sensor from combination switch. See Fig 1 . To install, reverse removal procedures. DO NOT apply grease or oil to steering angle sensor. Perform steering angle sensor test and ensure proper steering angle sensor operation. See STEERING ANGLE SENSOR TEST .
