Ignition Timing

IGNITION TIMING ⁽¹⁾ (Degrees BTDC @ RPM)

Application

⁽²⁾ Man. Trans.

⁽³⁾ Auto. Trans.

Integra

14-18 @ 700-800

14-18 @ 700-800

⁽¹⁾	Install Service Check Connector Tool (07PAZ-0010100 ) to service check connector before checking timing.

⁽²⁾	Manual transmission in Neutral.

⁽³⁾	Automatic transmission in Neutral or Park.

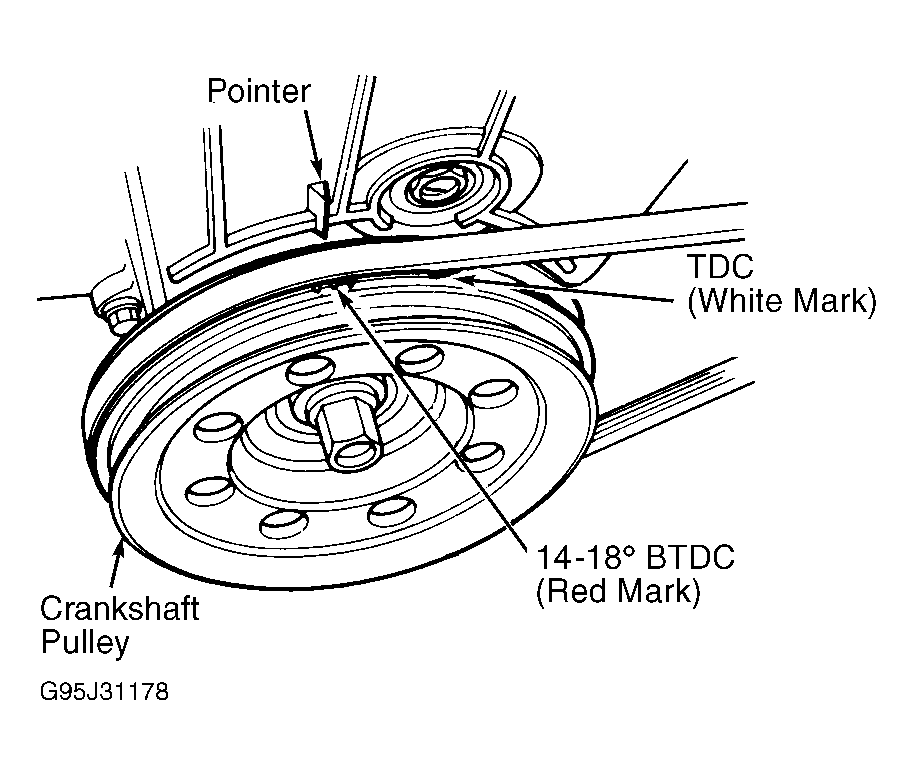

Fig 1: Locating Ignition Timing Mark (4-Cylinder)

G95J31178

Courtesy of AMERICAN HONDA MOTOR CO., INC.
