Vacuum Hose Diagram(S)
›
INTEGRA GS-R
INTEGRA GS-R

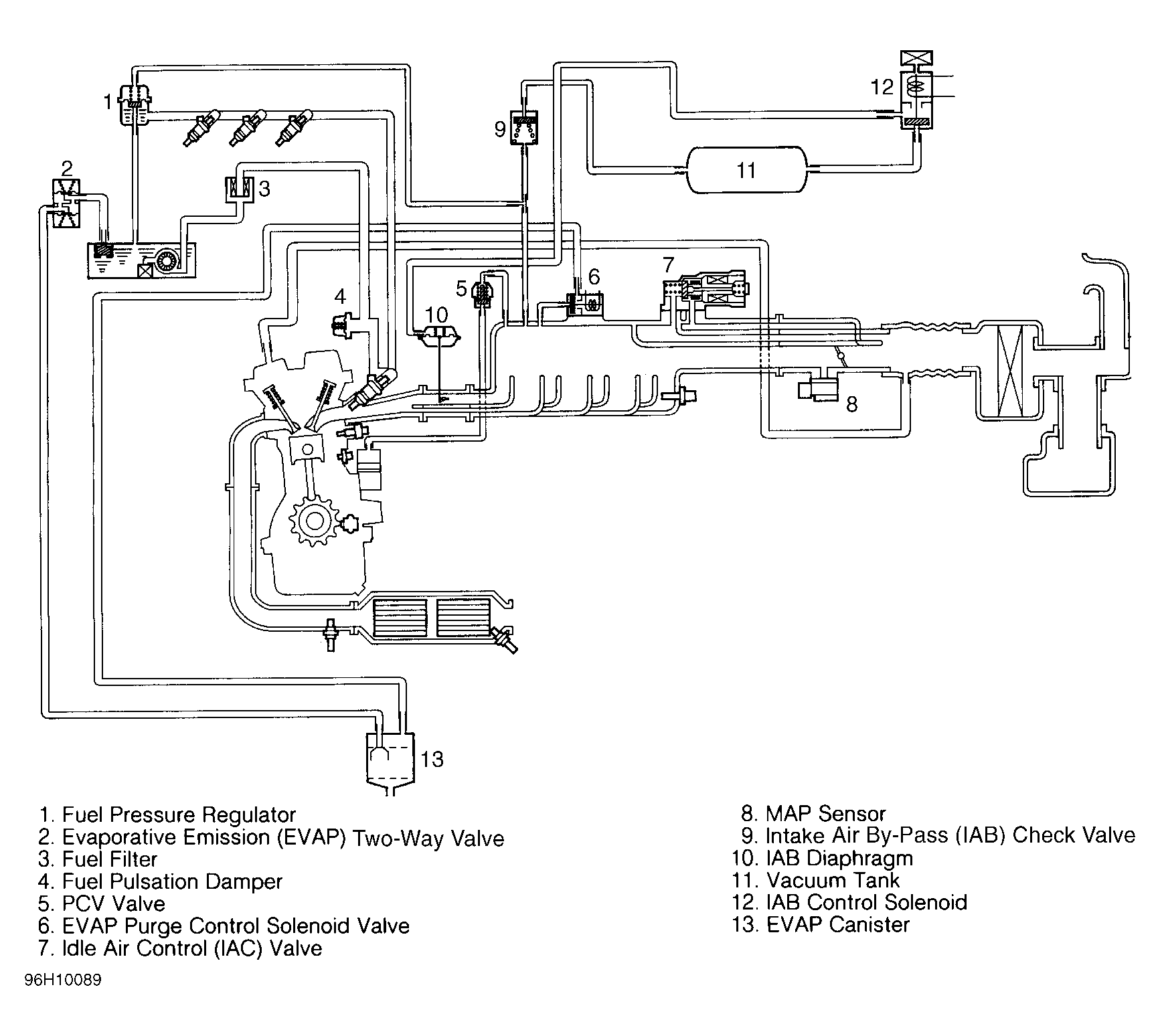

Fig 1: Vacuum Schematic
Courtesy of AMERICAN HONDA MOTOR CO., INC.

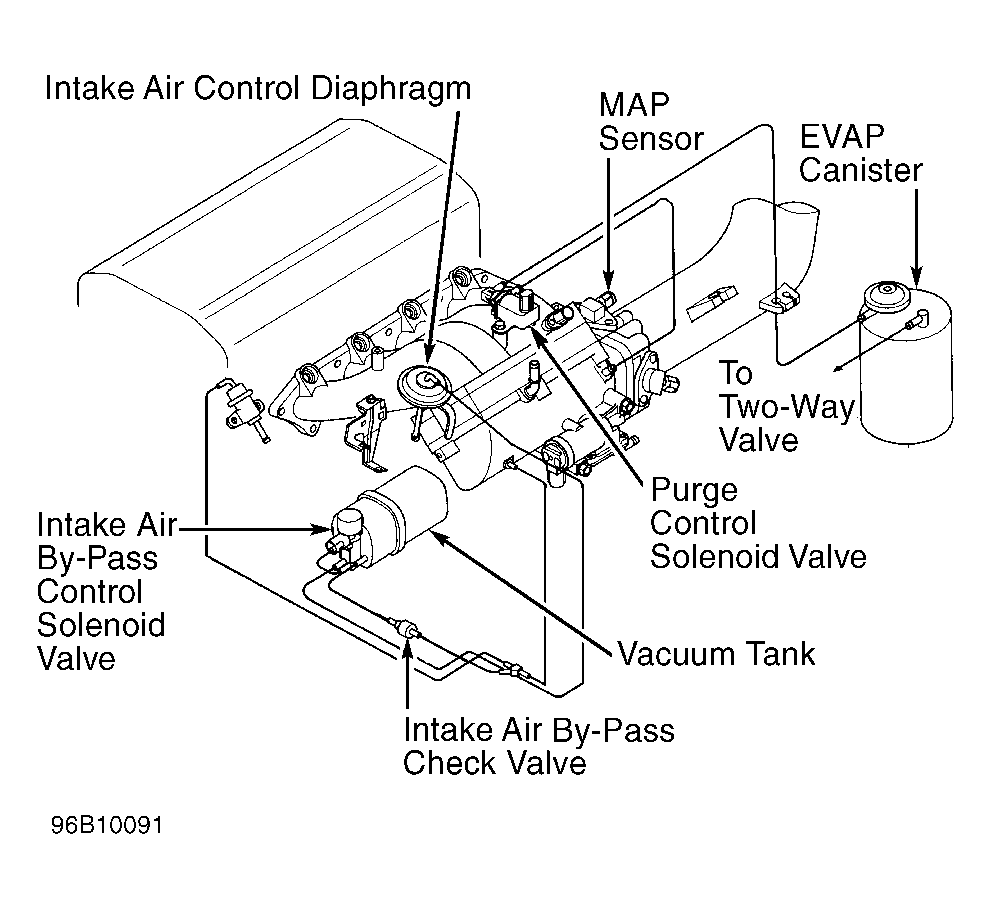

Fig 2: Vacuum Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
