DTC 2-1: Steering Angle Sensor

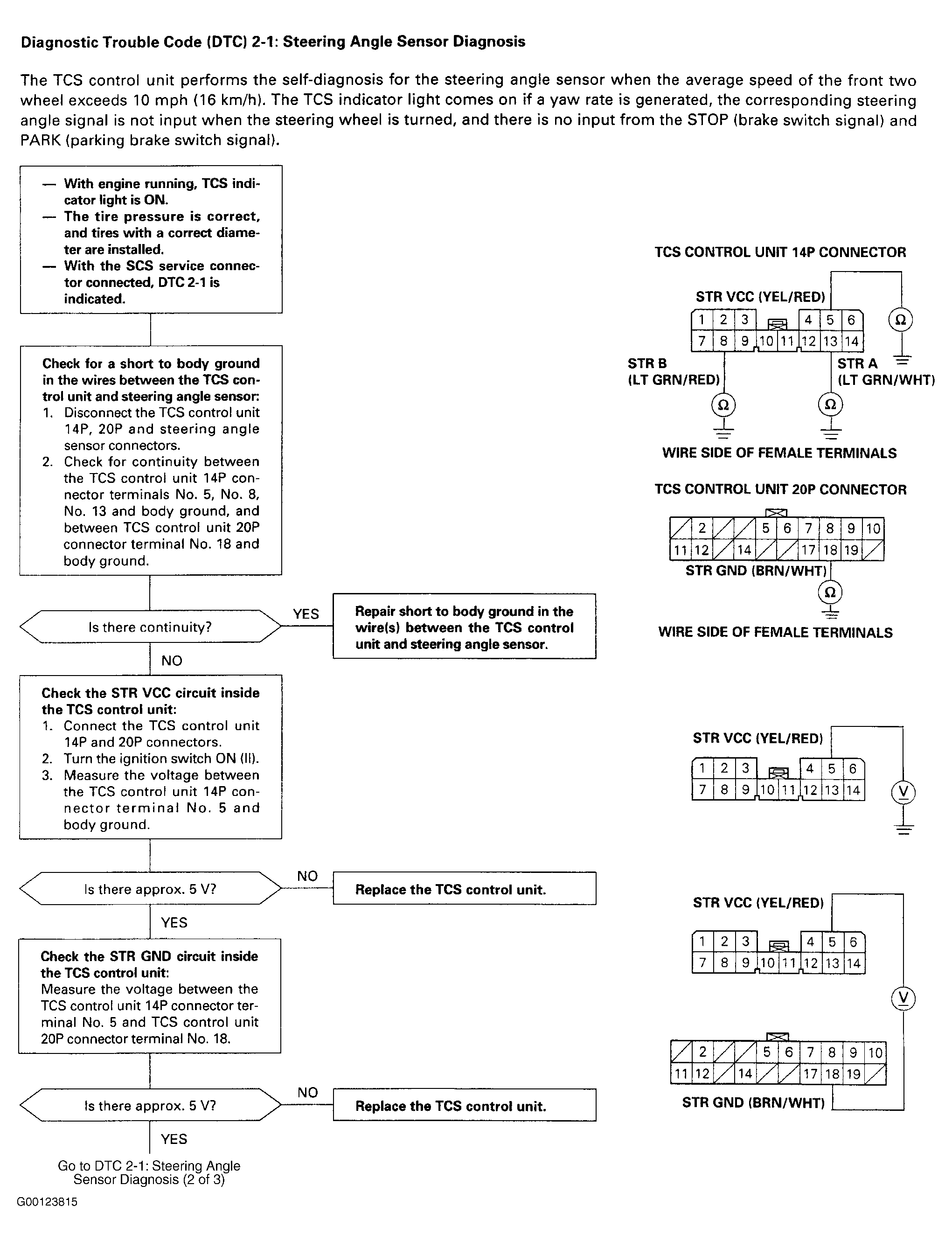

Fig 1: DTC 2-1: Steering Angle Sensor Diagnosis (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: DTC 2-1: Steering Angle Sensor Diagnosis (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: DTC 2-1: Steering Angle Sensor Diagnosis (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
