Electronic Steering: Overhaul: Notes

CAUTION: Do not disassemble EPS gearbox. If gearbox is faulty, replace it as an assembly.

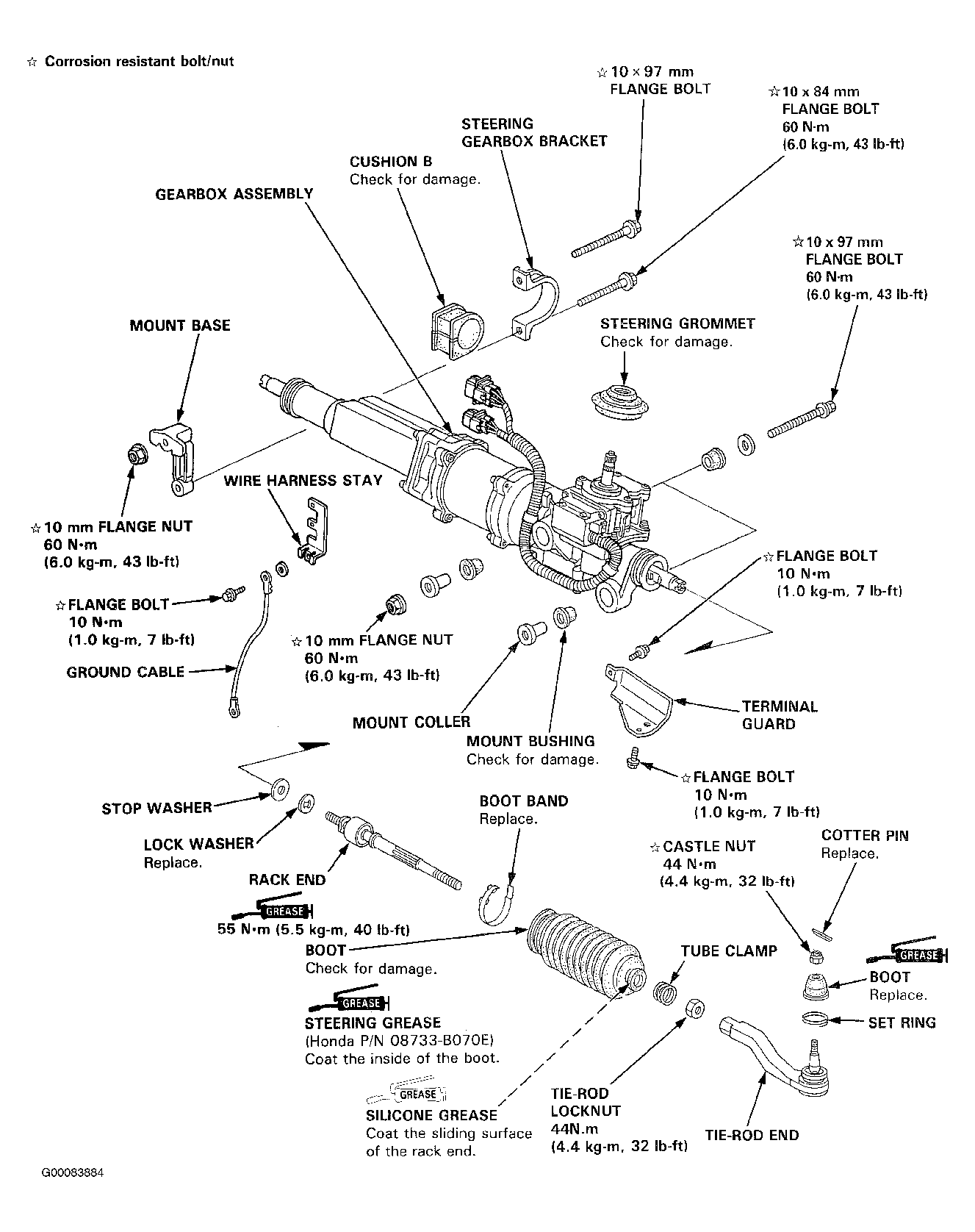

Fig 1: Exploded View Of Power Steering Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
