Alternator/Regulator Test

NOTE: Make sure the battery is sufficiently charged (see BATTERY ).

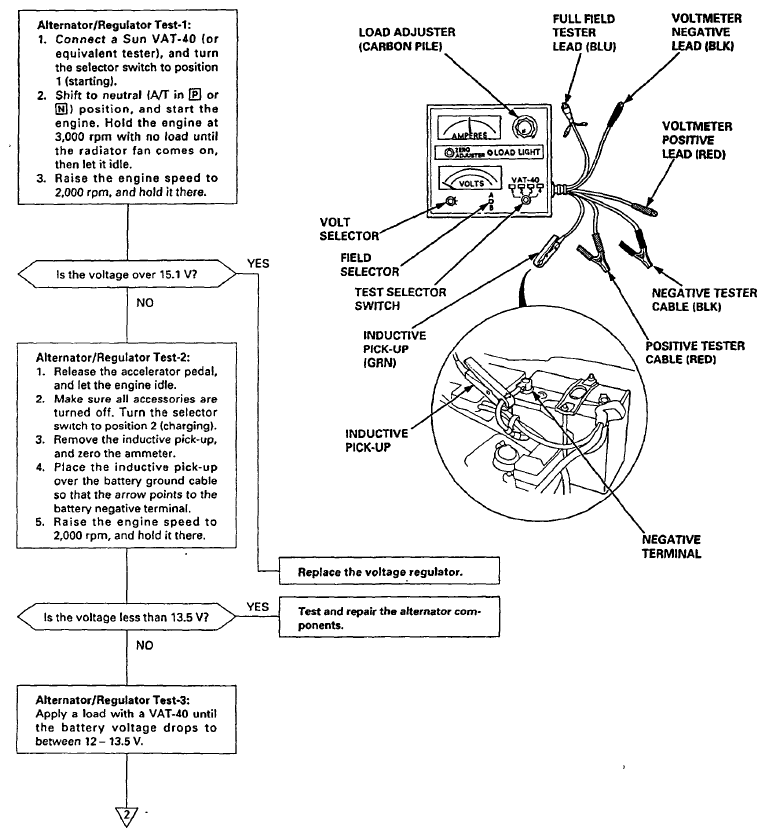

Fig 1: Alternator And Regulator Function Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

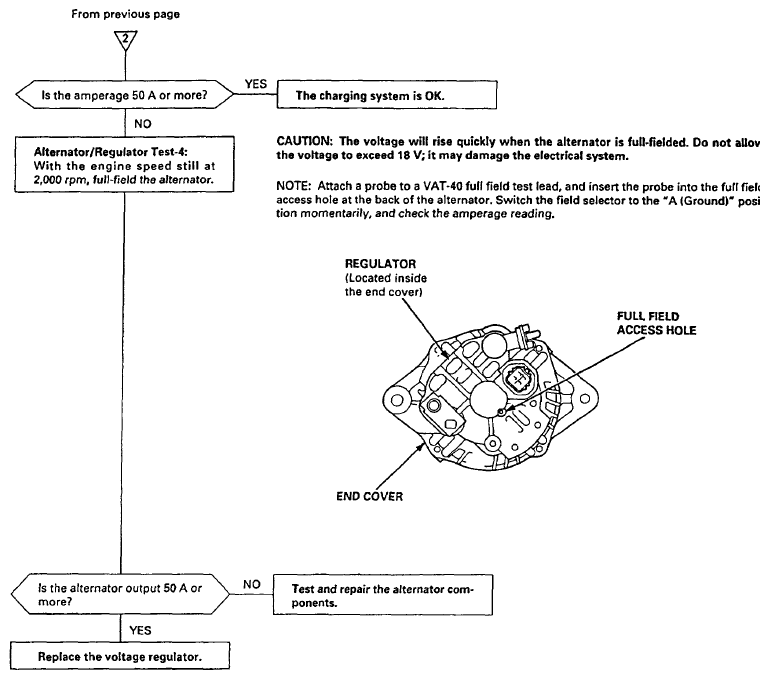

Fig 2: Alternator And Regulator Function Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
