Engine Coolant Temperature (ECT) Sensor
›
DTC P0116
›
Troubleshooting Flowchart
Troubleshooting Flowchart

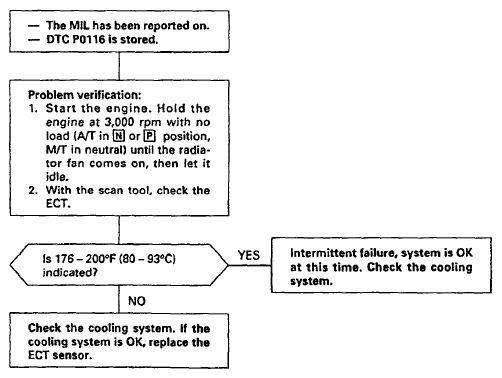

Fig 1: Diagnostic Trouble Code (P0116) - Flow Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
