Engine Oil Pressure Indicator Flasher System

For connector identification, see Figure. For input test, see Fig 1.

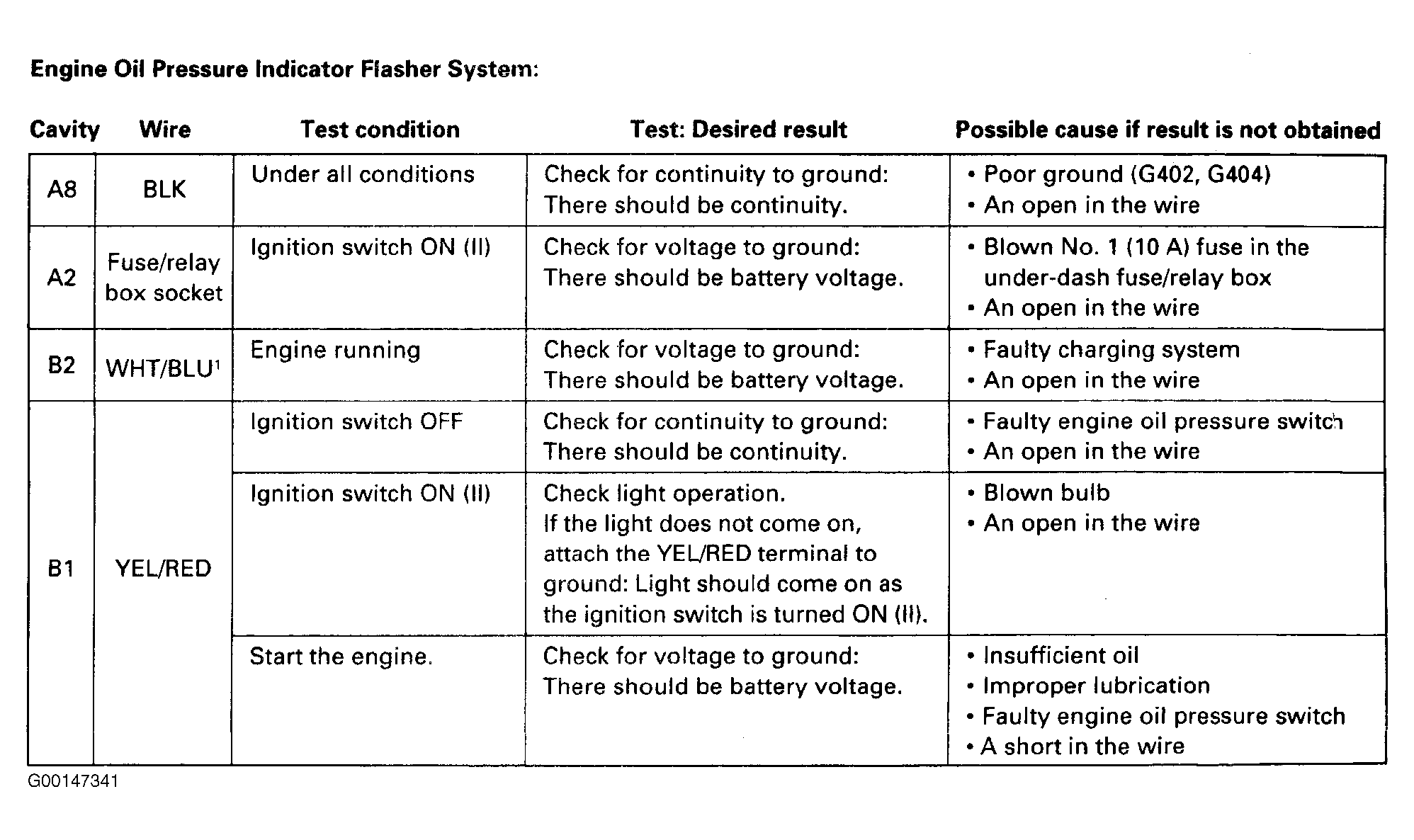

Fig 1: Engine Oil Pressure Indicator Flasher System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
