Power Window Key-Off Timer System

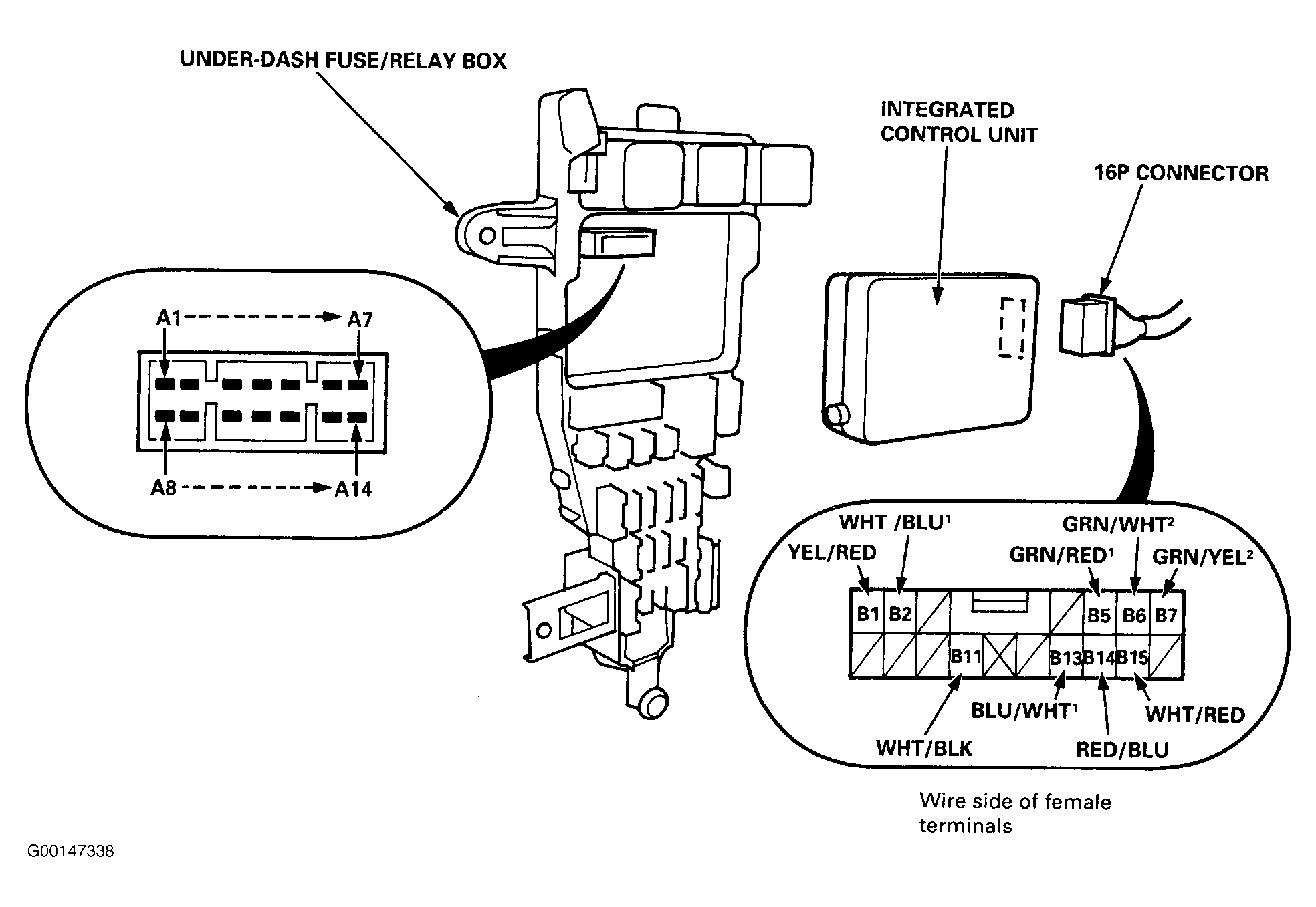

For connector identification, see Figure. For input test, see Fig 1.

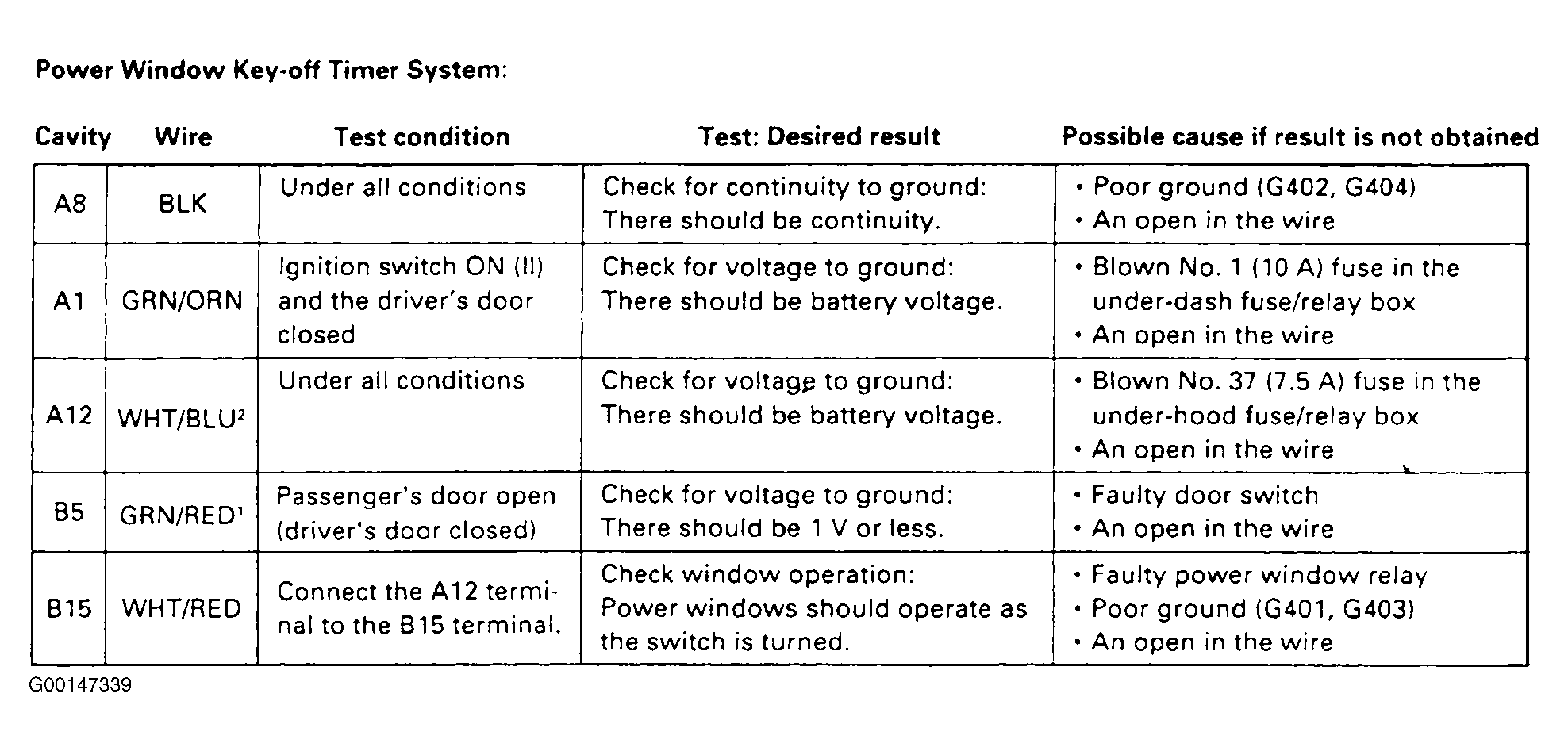

Fig 1: Power Window Key-Off Timer System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
