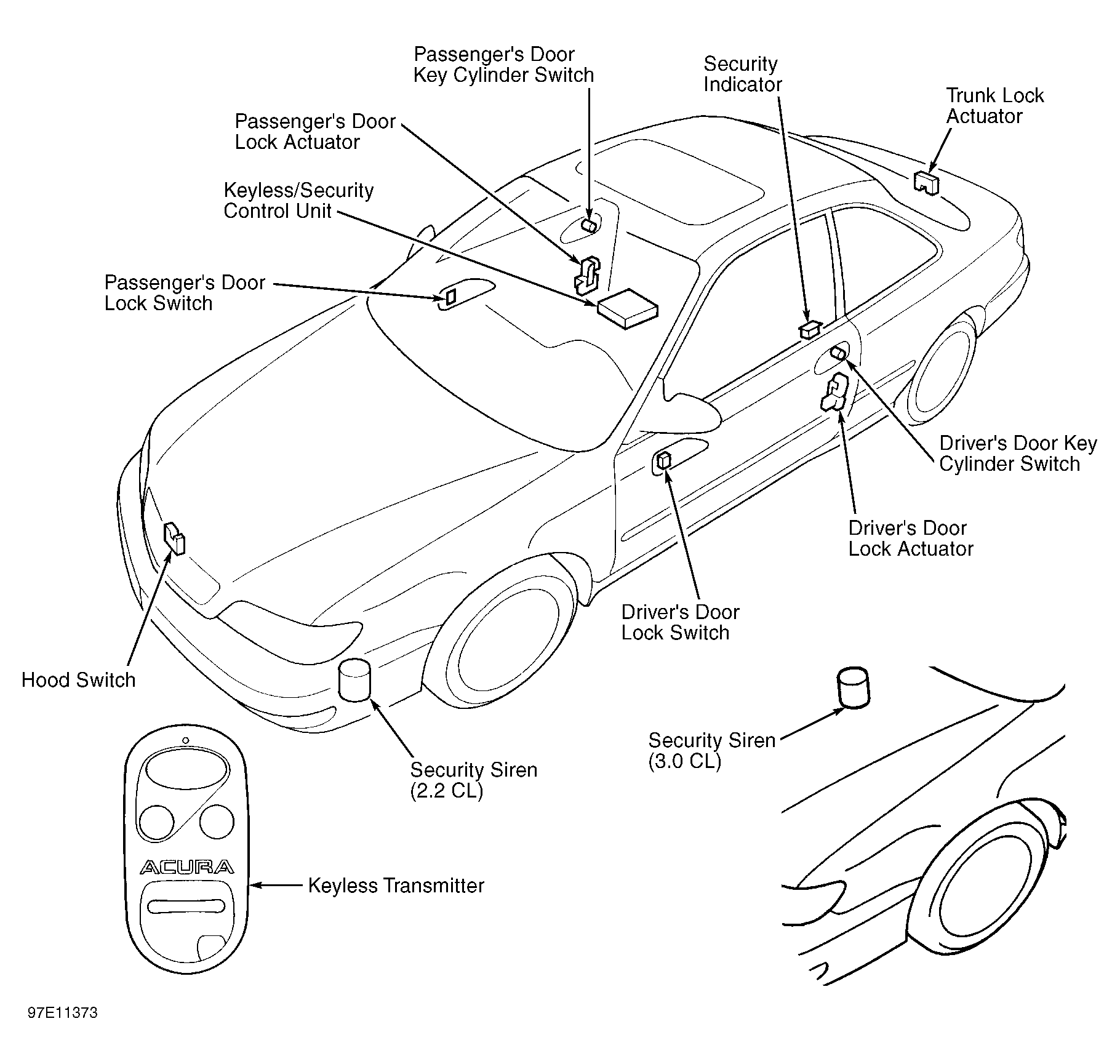

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||||
|---|---|---|---|---|---|
| Door Lock Actuators | In Each Door | ||||
| Anti-Theft System Indicator Light | Top Of Driver's Door Trim Panel | ||||
| Hood Switch | In Engine Compartment, Under Hood Latch | ||||
| Keyless Entry & Anti-Theft System Control Unit | Under Passenger's Seat | ||||
| Security Siren (2) | Under Left Front Fender | ||||
| Underdash Fuse/Relay Box | At Left Kick Panel | ||||
| Underhood Fuse/Relay Box | At Right Rear Of Engine Compartment | ||||
|
|||||
