Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in right rear corner of engine compartment. See Fig 1 or Fig 2 .

Fig 1: Locating Under-Hood Fuse/Relay Box (2.2L/2.3L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Under-Hood Fuse/Relay Box (3.0L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

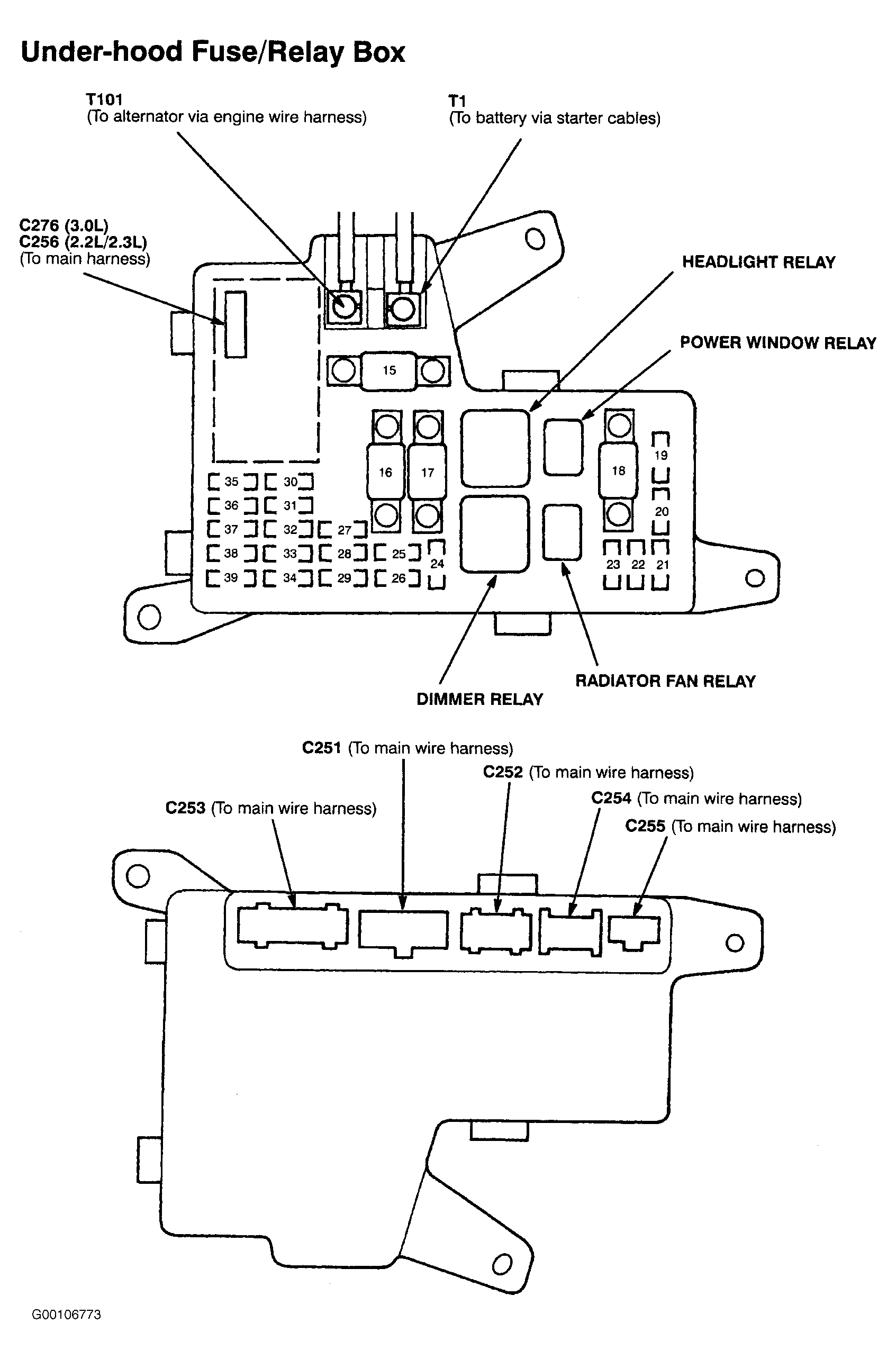

Fig 3: Identifying Under-Hood Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

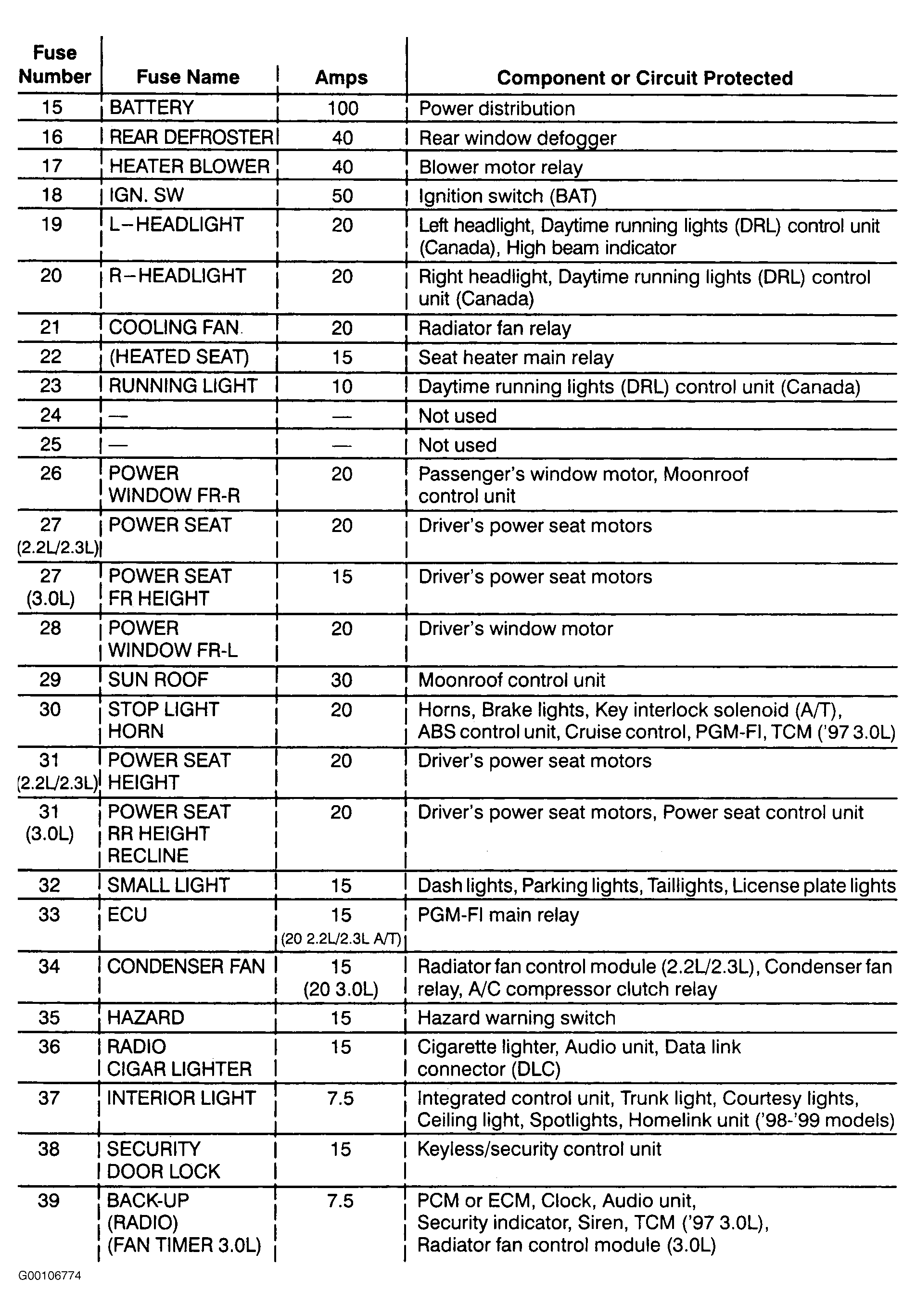

Fig 4: Under-Hood Fuse/Relay Box Legend

Courtesy of AMERICAN HONDA MOTOR CO., INC.
