Turn Signal/Hazard Relay Input Test

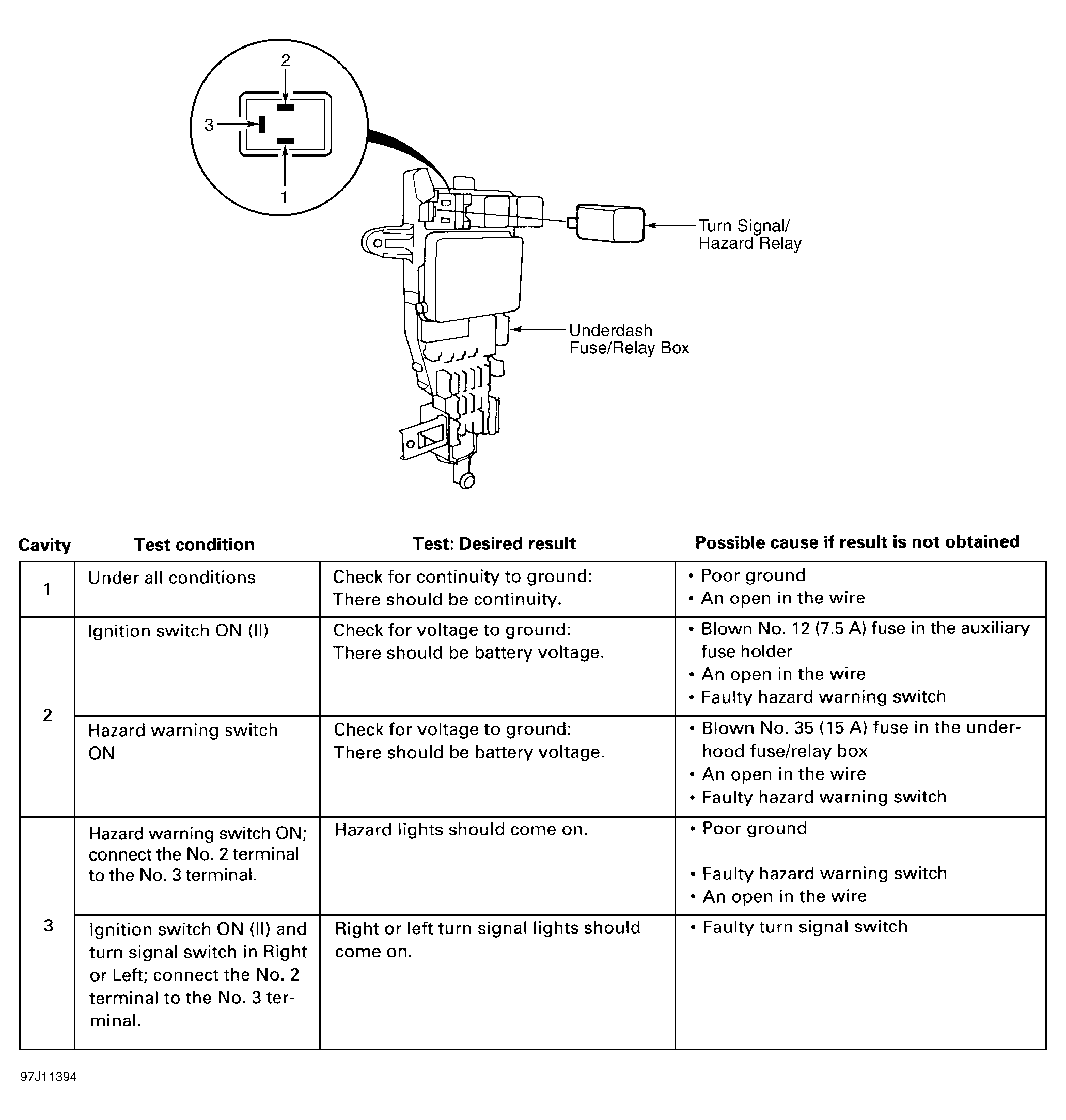

Remove turn signal/hazard relay from underdash fuse/relay box located in left kick panel. Check for bent, loose or corroded terminals. Repair as necessary and recheck system. If relay terminals are okay, perform turn signal/hazard relay input tests. Test each specified circuit for continuity or battery voltage as indicated. See Fig 1 . Correct any problems as directed and recheck system. If no problems are found, replace turn signal/hazard relay and recheck system.
