SRS Inflator Simulator Tools (96-033)

Publication date: 1996-07-23
Reference number: 96-033

SRS INFLATOR SIMULATOR TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 96-033, Date of Issue: July 23, 1996

Model(s): 1995 Acura 2.5TL

1996 Acura, all except NSX

Group: Special Tools

Bulletin No.: 96-033

Date: July 23, 1996

Use the special tools in the right column of the cross reference graphics for SRS troubleshooting in the Service Manuals. See Fig 1 thru Fig 3 .

NOTE: These tools may be shown in current Service Manuals.

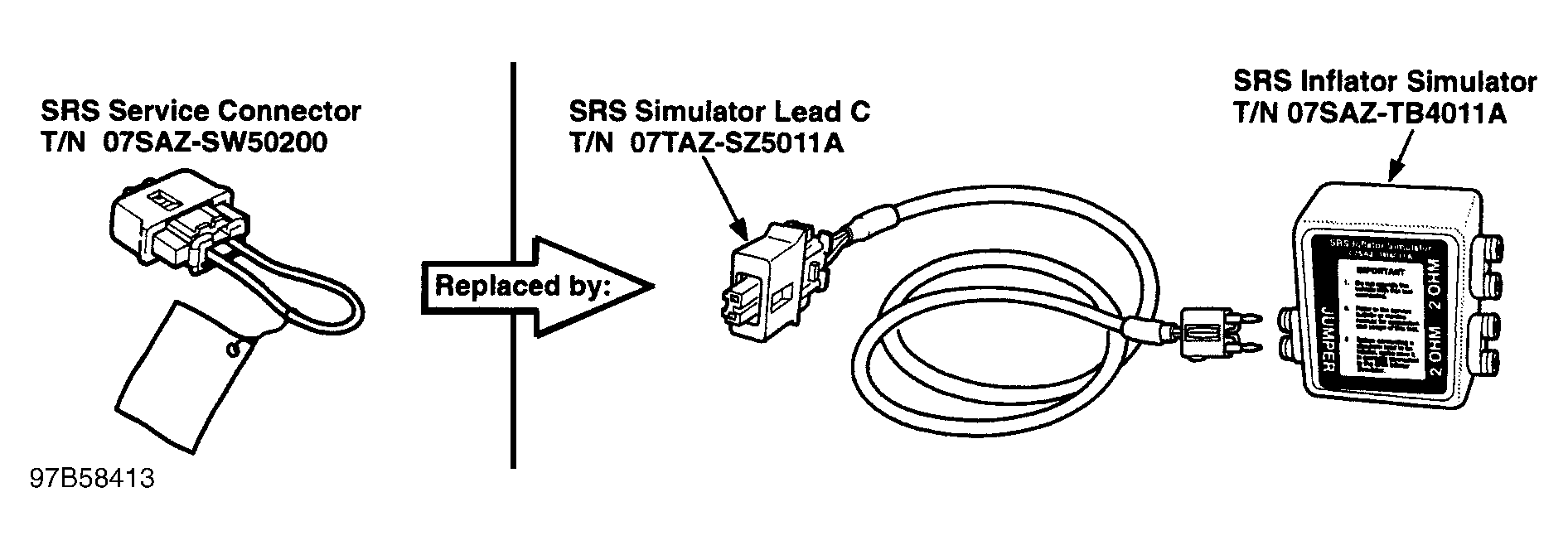

Fig 1: SRS Service Connector T/N 07SAZ-SW50200 Replacement

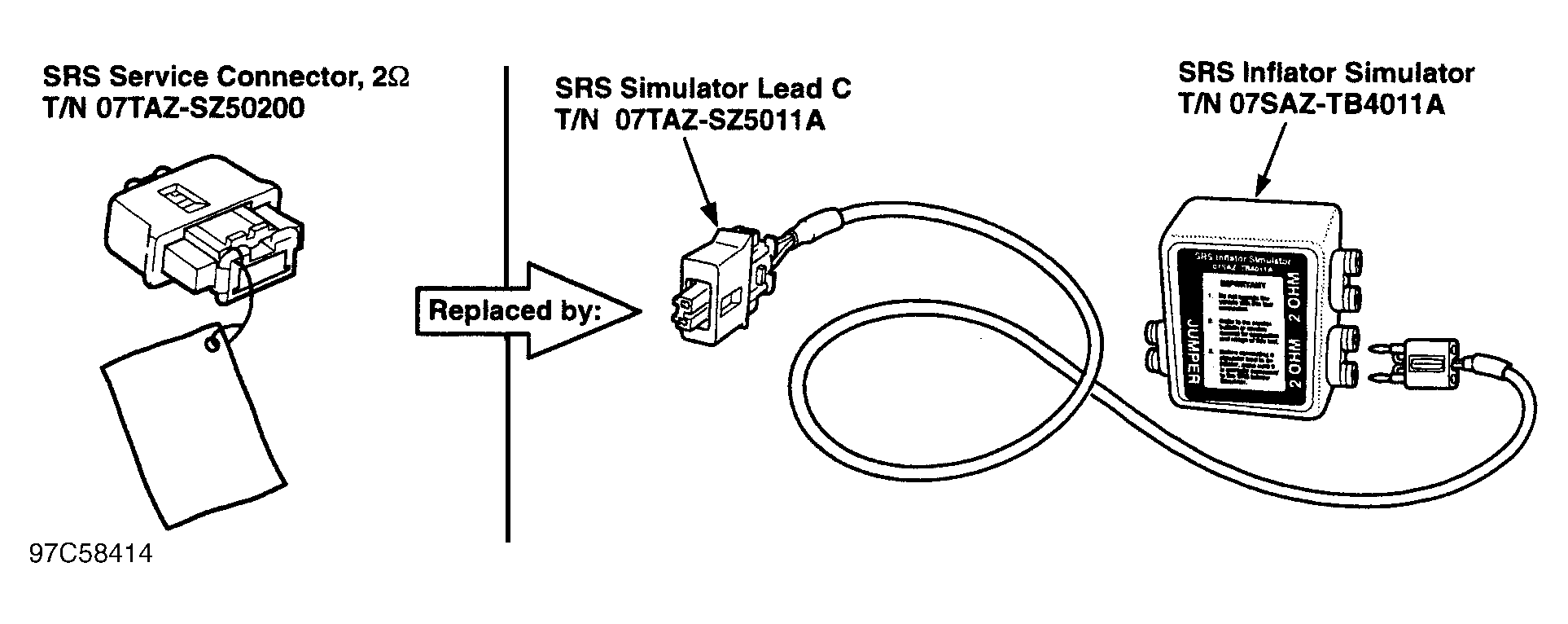

Fig 2: SRS Service Connector, 2 Ohms T/N 07TAZ-SZ50200 Replacement

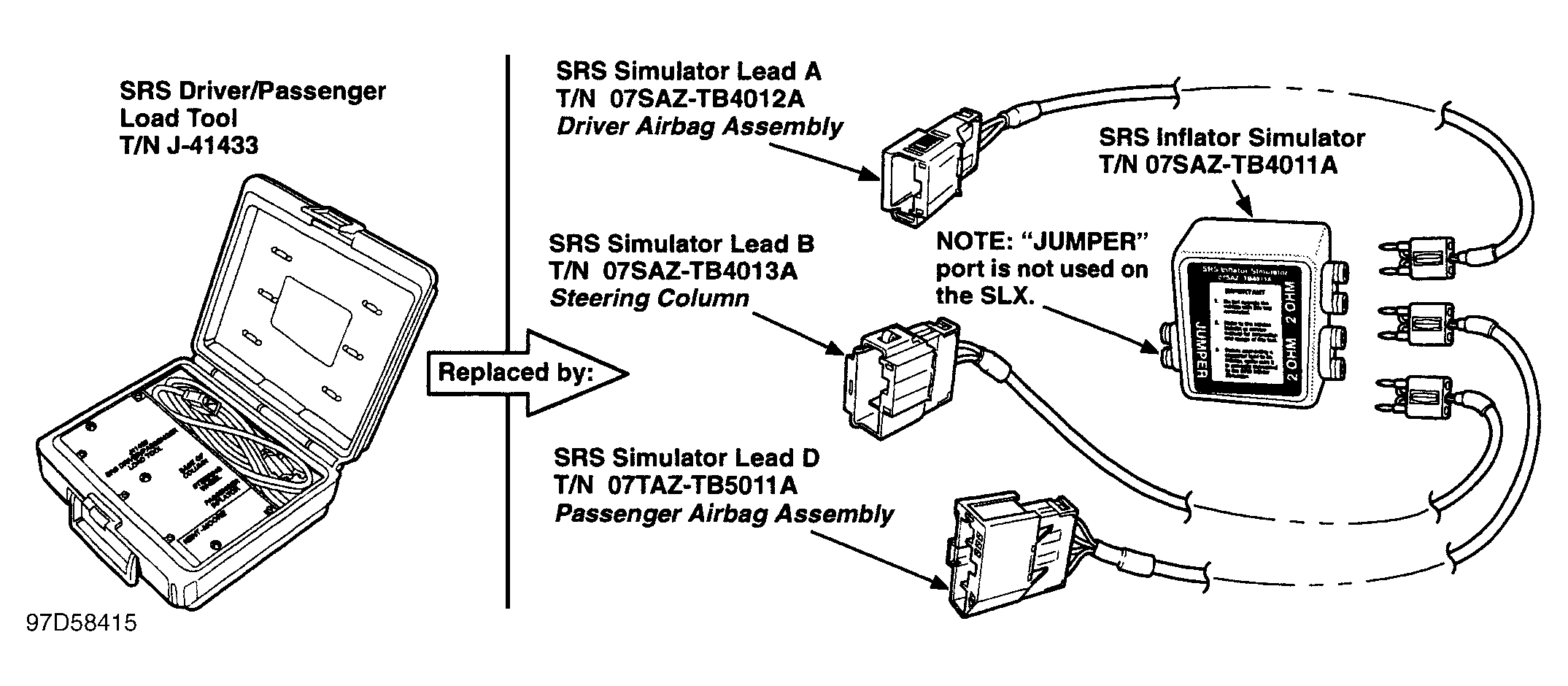

Fig 3: SRS Load Tool T/N J-41433 Replacement - (SLX Only)
