Engine Compartment Fuse Panel Identification
›
Notes
Engine Compartment Fuse Panel Identification: Notes

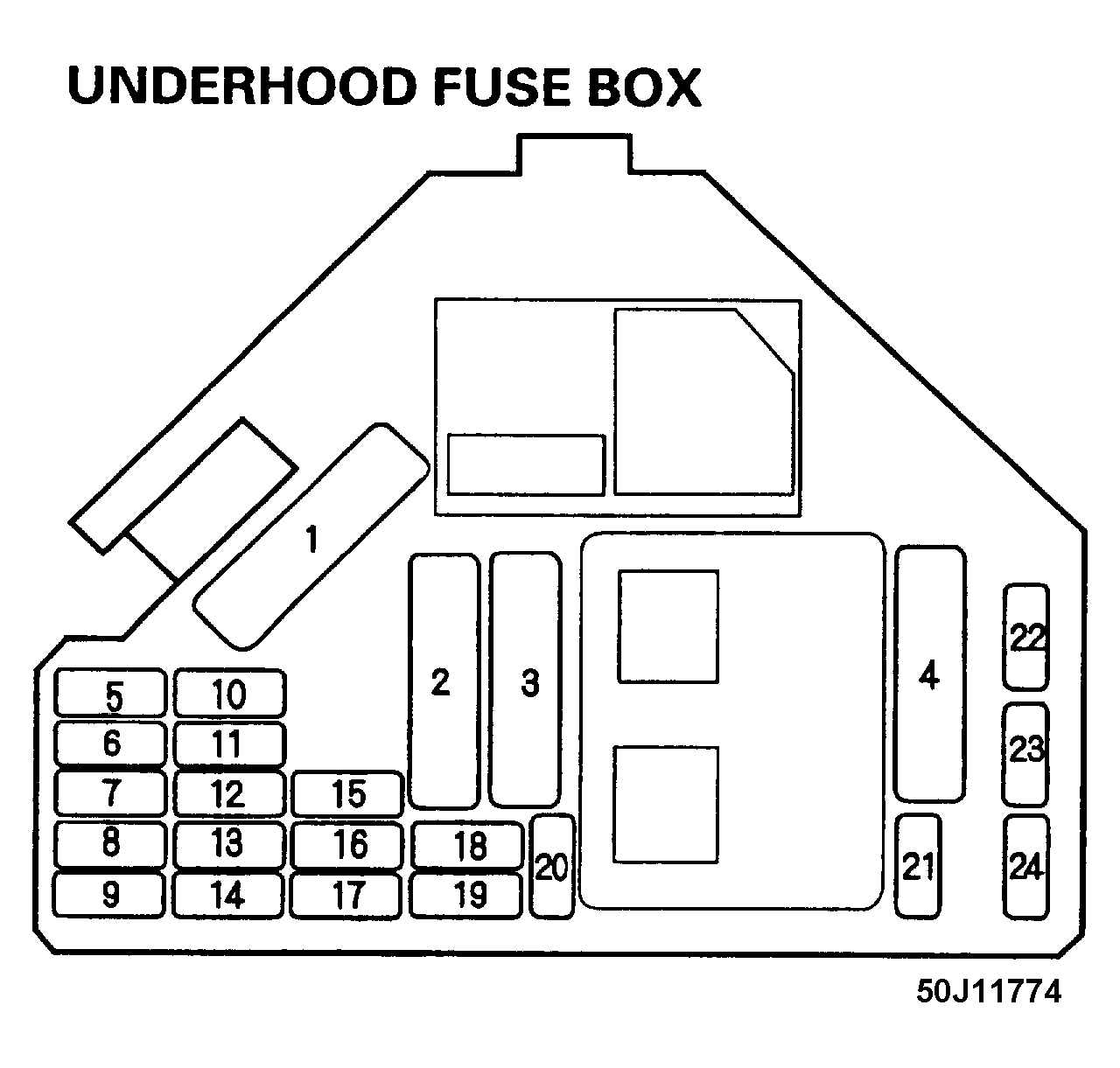

Fig 1: Engine Compartment Fuse Panel Identification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
