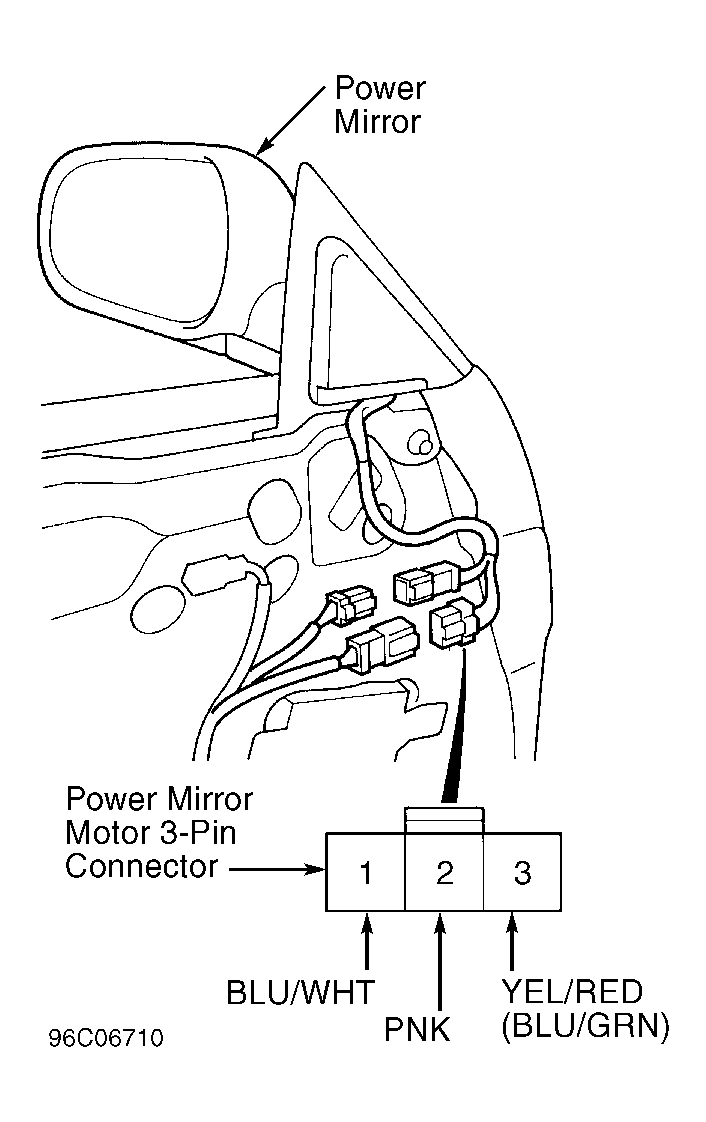

Power Mirror Switch Test
Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between specified switch terminals. See Fig 1 , Figure or Figure . See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. If switch does not test as specified, replace faulty power mirror switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. | |||
|---|---|---|---|---|
| Right Mirror | ||||
| Off | 3, 5, 6 & 10 | |||
| Up | 5 & 9; 3, 6 & 10 | |||
| Down | 3, 6 & 9; 5 & 10 | |||
| Left | 5, 6 & 9; 3 & 10 | |||
| Right | 3 & 9; 5, 6 & 10 | |||
| Left Mirror | ||||
| Off | 4, 5, 7 & 10 | |||
| Up | 5 & 9; 4, 7 & 10 | |||
| Down | 4, 7 & 9; 5 & 10 | |||
| Left | 5, 7 & 9; 4 & 10 | |||
| Right | 4 & 9; 5, 7 & 10 | |||
| Switch Light | ||||
| On/Off | (1) 2 & 8 | |||
|
||||
