Acura
›
1997
›
Integra GS-R, 2D Coupe
›
Repair and Diagnosis
›
Engine Performance
›
Engine Controls - Specifications - GS-R
›
Ignition System
›
Firing Order & Timing Marks
Firing Order & Timing Marks

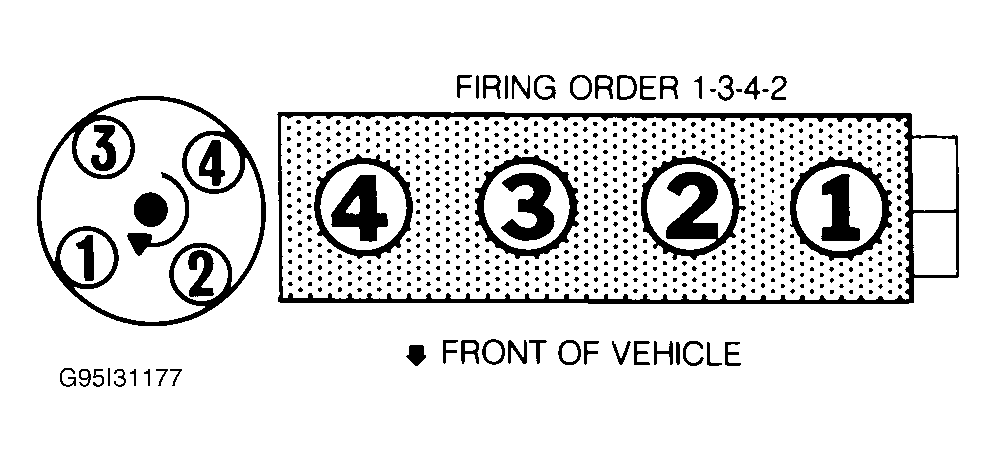

Fig 1: Firing Order & Distributor Rotation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
