Combination Switch
WARNING: This page is about a different car, the 1997 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, remove cruise control switch (part of combination switch assembly. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.

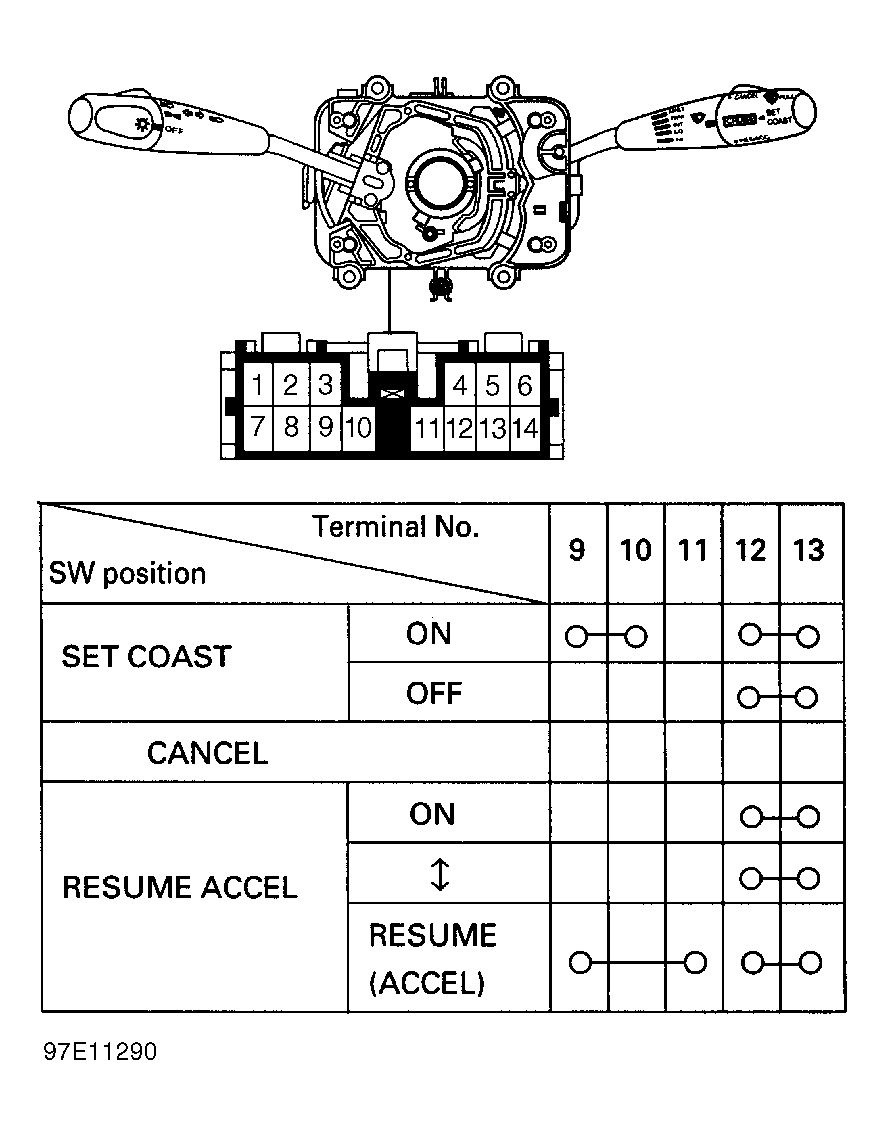

- Disconnect cruise control switch harness connector. Check continuity between specified terminals of combination switch connector with switch in appropriate position. See Fig 1 . Replace combination switch if readings are not as specified. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.
