Driver's Door Lock Switch Test
Remove the inner handle (see
OUTER HANDLE REMOVAL/INSTALLATION
).

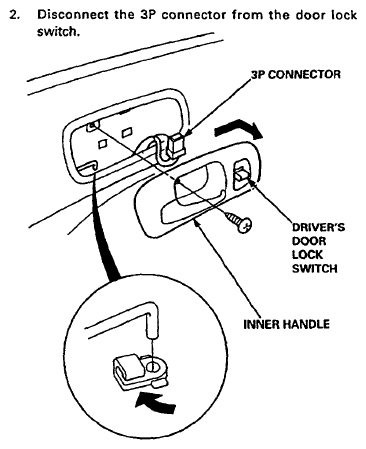

Disconnect the 3P connector from the door lock switch.
Fig 1: Disconnecting 3P Connector From Door Lock Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Fig 2: Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying Driver Door Lock Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
