Component Locations

COMPONENT LOCATIONS ⁽¹⁾

Component

Location

Door Lock Actuators

In Each Door

Anti-Theft System Indicator Light

Top Of Driver's Door Trim Panel

Hood Switch

In Engine Compartment,

Hood Switch

Under Hood Latch

Keyless Entry & Anti-Theft System Control Unit

Under Passenger's Seat

Security Siren ⁽²⁾

2.3CL

Under Left Front Fender

3.0CL

In Engine Compartment,

3.0CL

Near Center Of Firewall

Underdash Fuse/Relay Box

At Left Kick Panel

Underhood Fuse/Relay Box

At Right Rear Of Engine Compartment

⁽¹⁾	See Fig 1 .

⁽²⁾	May also be referred to as anti-theft system siren.

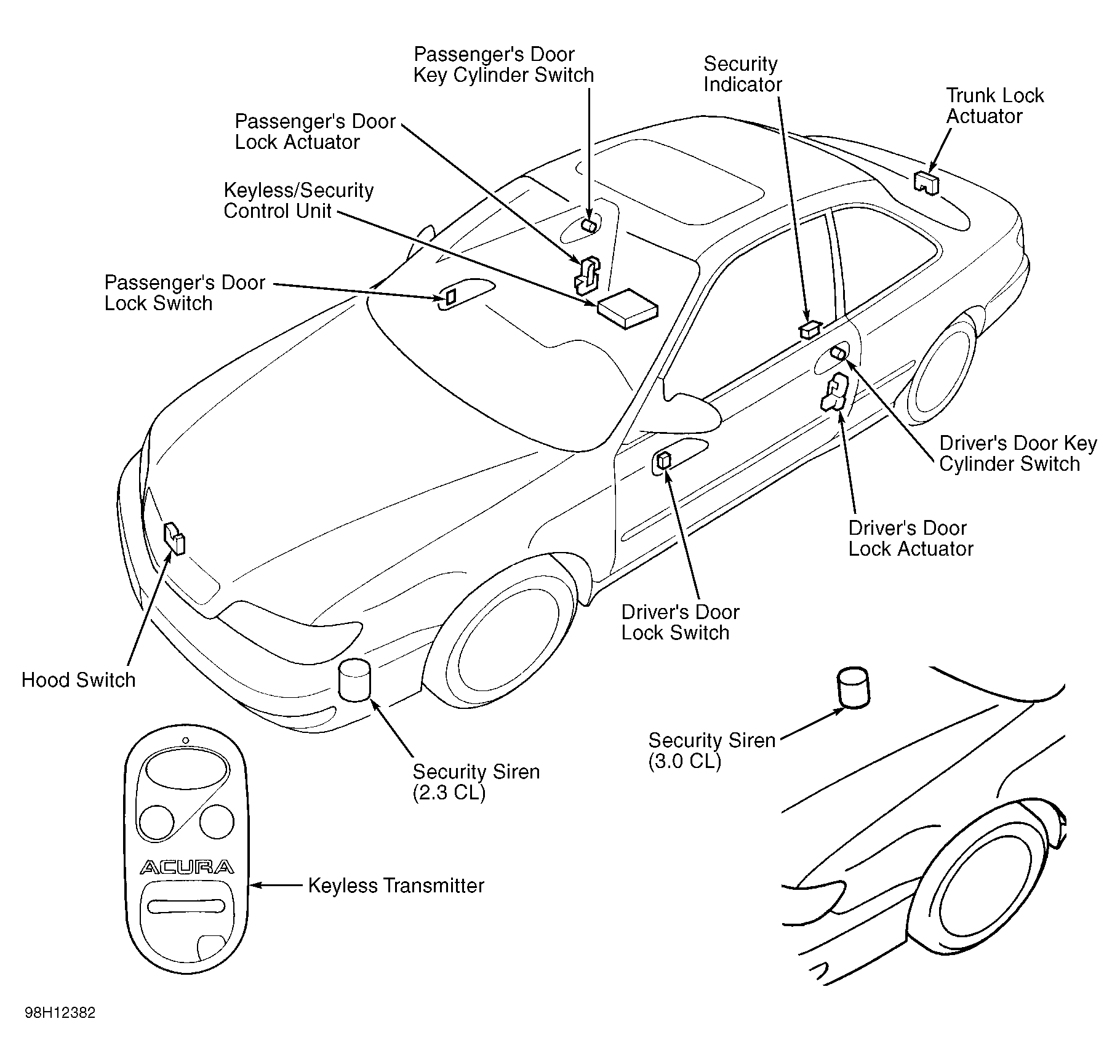

Fig 1: Locating Keyless Entry & Anti-Theft System Components

Courtesy of AMERICAN HONDA CO., INC.
