Integra (Hatchback)

Remove mirror panel and disconnect power mirror motor 8-pin connector. See Fig 1. Using jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST SPECIFICATIONS (INTEGRA) . If motor does not function as specified, replace faulty motor assembly.

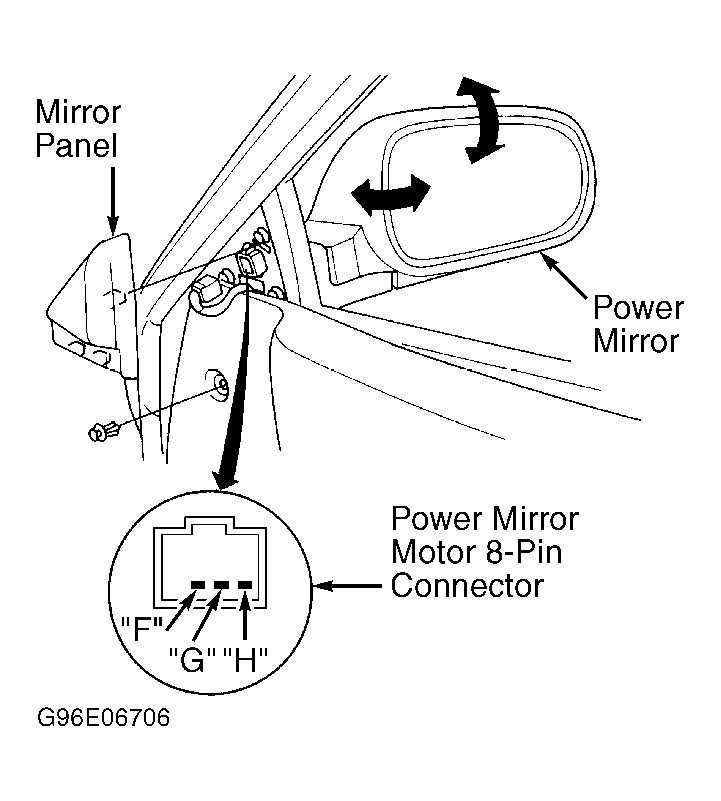

Fig 1: Power Mirror Motor Terminals (Integra Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
