Trouble Shooting: Notes

NOTE: Ensure all component terminals and ground connections are clean and tight. See WIRING DIAGRAMS . Check possible faults in order listed. Repair or replace components and circuits as necessary. Some wires have been assigned a superscript to distinguish them from other wires of similar color. For example, the Yellow/Green(1) wire is not the same as the Yellow/Green(2) wire.

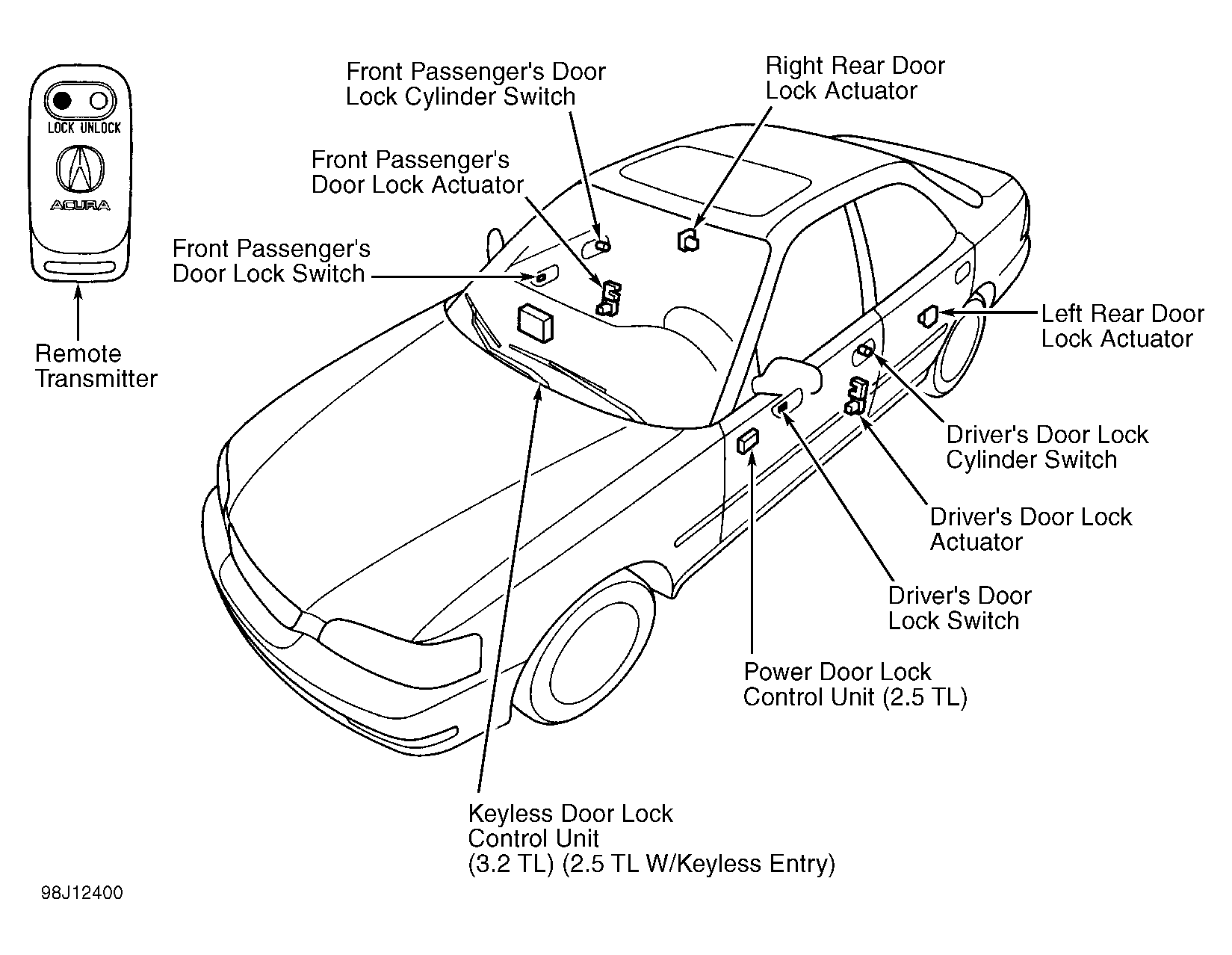

Fig 1: Locating Power Door Lock Components (3.2TL Shown; 2.5TL Is Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
