Section 12 (A/C-Heater System): Description
WARNING: This page is about a different car, the 1998 Acura Integra. However, it is still accessible from the selected car via links, so may be relevant.

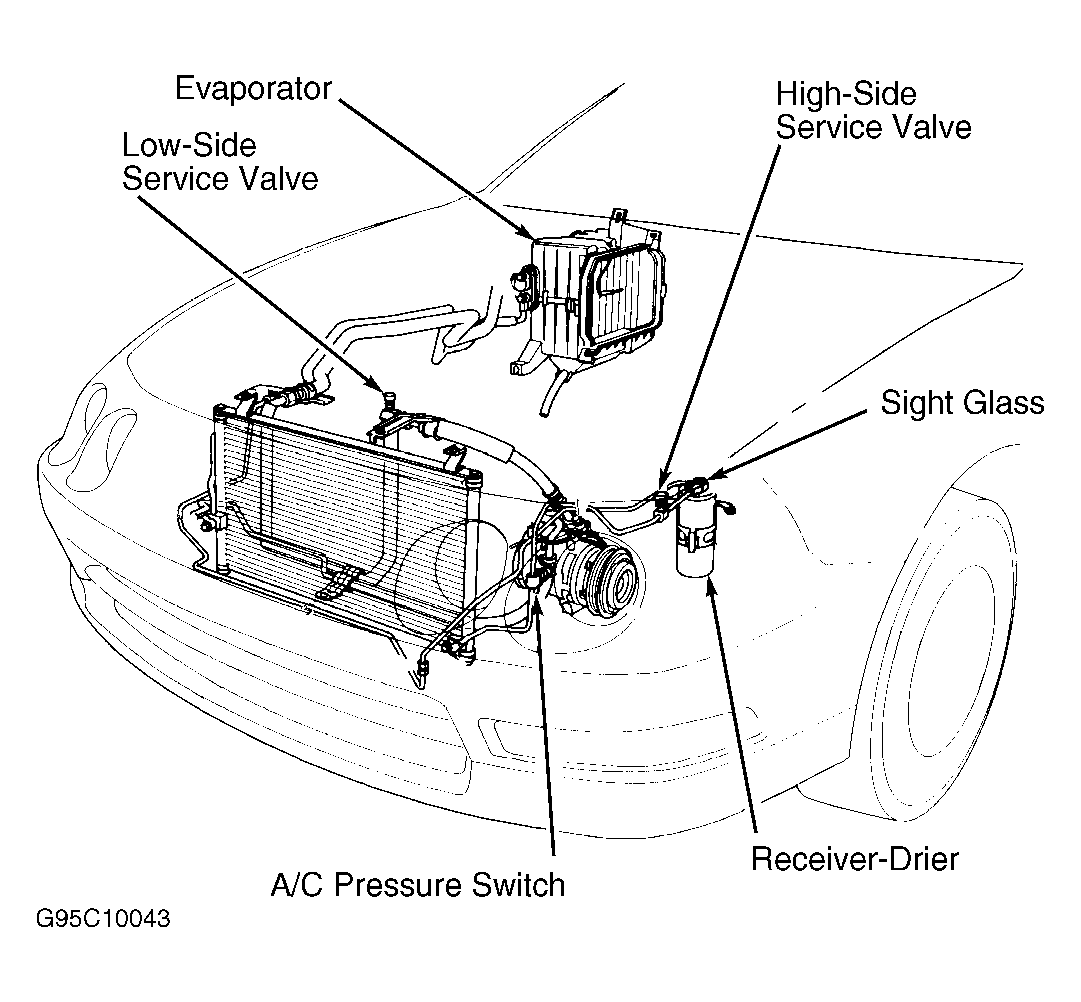

This is a cycling-clutch system that uses an expansion valve to control refrigerant flow. See Fig 1
and Figure
. The blower motor, heater core and evaporator are located under the instrument panel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
