Road Test
NOTE:
If shift lever cannot be moved from "P" position with brake pedal depressed and accelerator pedal at idle position, check shift interlock system. See appropriate SHIFT INTERLOCK SYSTEMS article.
- Warm engine to normal operating temperature. Apply parking brake and block wheels. Start engine. Move shift lever to "D4" position while depressing brake pedal. Depress accelerator pedal and release it suddenly. Engine should not stall.
- Repeat step 1 with shift lever in "D" position. Ensure engine does not stall. Manufacturer recommends monitoring of Throttle Position (TP) sensor voltage when performing road test to ensure proper throttle opening for verifying shift points and lock-up of torque converter.

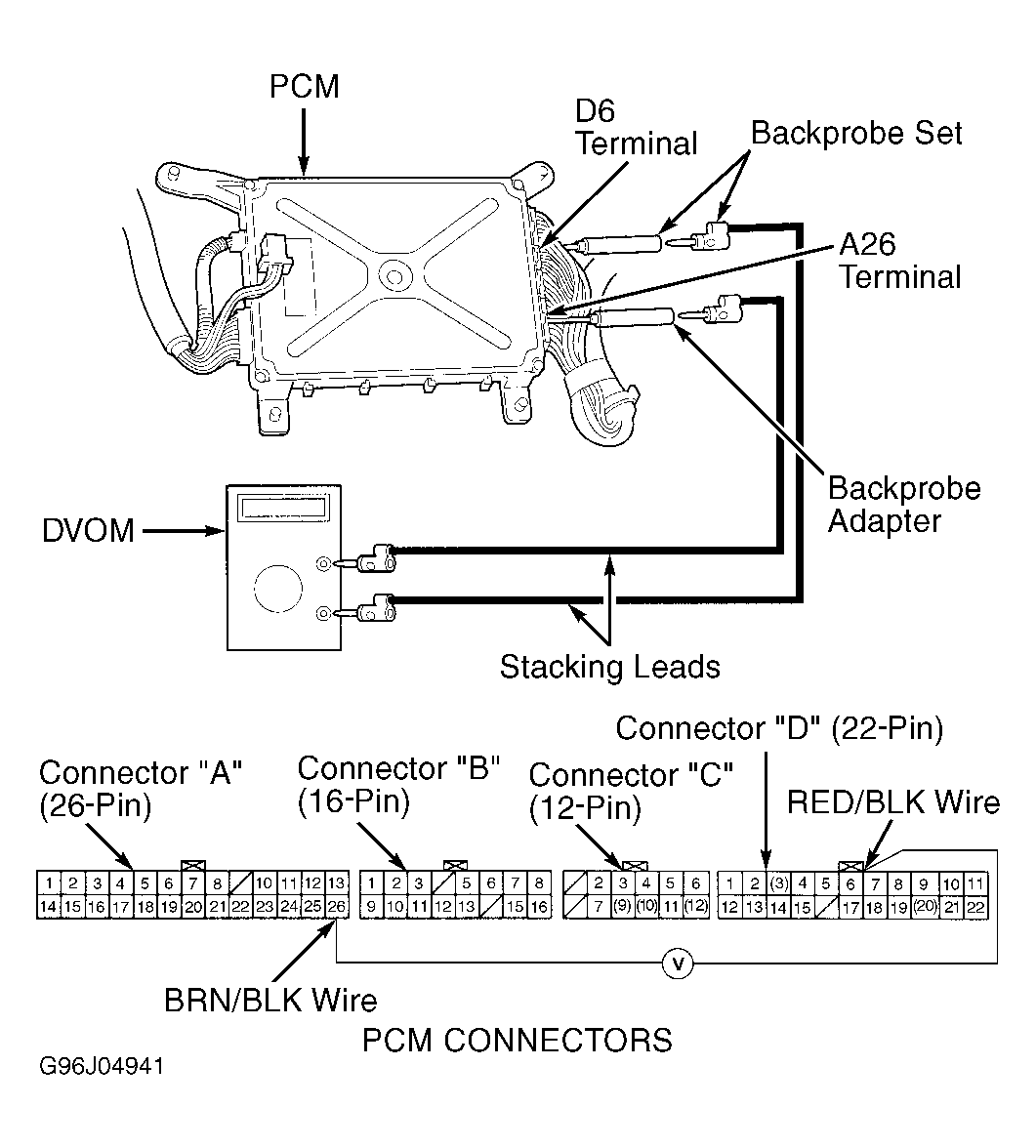

- Remove door sill molding and lower dash panel on passenger's side and remove small cover on passenger's side kick panel. Pull carpet back for access to the PCM. See Fig 1.
- Ensure ignition is off. Remove PCM cover located above PCM.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install Backprobe Test Set (07SAZ-001000A) or equivalent between PCM harness connector and DVOM leads. See Fig 1. Set DVOM to measure voltage. Connect DVOM positive lead to PCM harness connector terminal D6 and negative lead to terminal A26. See Fig 1.
- Road test vehicle and check for abnormal noise and clutch slippage. See CLUTCH APPLICATION table for clutch engagement.
- Ensure upshift and downshift points and torque converter lock-up are correct in relation to throttle position sensor voltage or throttle opening and vehicle speed with shift lever in "D4" position. See TRANSAXLE UPSHIFT SPECIFICATIONS and TRANSAXLE DOWNSHIFT SPECIFICATIONS
tables.
- With shift lever in "D4" position, accelerate to about 35 MPH so transaxle is in 4th gear. Move shift lever to "2" position. Ensure engine braking occurs.
CAUTION:
DO NOT shift from "D4" to "2" at speeds over 62 MPH or transaxle may be damaged.
- Place shift lever in "1" position. Accelerate from a stop at full throttle. Check for abnormal noise or clutch slippage. Upshifts and downshifts should not occur in this shift lever position.
- Place shift lever in "2" position. Accelerate from a stop at full throttle. Check for abnormal noise or clutch slippage. Upshifts and downshifts should not occur in this shift lever position.
- Place shift lever in "R" position. Accelerate from a stop at full throttle. Check for abnormal noise or clutch slippage.
- Park vehicle on a slope. Apply parking brake. Place shift lever in "P" position. Release parking brake. Ensure vehicle does not move. If vehicle moves, check for defective shift cable or parking components.
- Ensure ignition is off. Remove test harness and reinstall electrical connectors, PCM cover, carpet and door sill molding.
CLUTCH APPLICATION
| Shift Lever Position |
Elements In Use |
| "P" & "N" |
No Clutches Applied |
| "R" |
Reverse Clutch |
| "D4" |
| 1st Gear |
1st Clutch |
| 2nd Gear |
2nd Clutch |
| 3rd Gear |
3rd Clutch |
| 4th Gear |
4th Clutch |
| "D" |
| 1st Gear |
1st Clutch |
| 2nd Gear |
2nd Clutch |
| 3rd Gear |
3rd Clutch |
| "2" |
1st-Hold Clutch, 2nd Clutch |
| "1" |
1st-Hold Clutch, 1st Clutch |
TRANSAXLE UPSHIFT SPECIFICATIONS
| "D4" Position & Condition |
1st-2nd Gear |
2nd-3rd Gear |
3rd-4th Gear |
Lock-Up Clutch On |
| TP Sensor Voltage Is .822-.878 Volt & Coasting Downhill From Stop |
10-13 MPH |
21-24 MPH |
32-37 MPH |
21-25 MPH |
| TP Sensor Voltage Is 2.175-2.325 Volts & Accelerating From Stop |
25-29 MPH |
48-53 MPH |
73-79 MPH |
91-97 MPH |
| Full Throttle & Accelerating From Stop |
38-44 MPH |
70-78 MPH |
103-114 MPH |
95-106 MPH |
TRANSAXLE DOWNSHIFT SPECIFICATIONS
| "D4" Position & Condition |
Lock-Up Clutch Off |
4th-3rd Gear |
3rd-2nd Gear |
2nd-1st Gear |
| TP Sensor Voltage Is .822-.878v & Coasting Or Braking To A Stop |
21-25 MPH |
N/A |
16-19 MPH |
6-9 MPH |
| TP Sensor Voltage Is 2.175-2.325v & Vehicle Slowed By Grade Or Load |
72-78 MPH |
N/A |
N/A |
N/A |
| Full Throttle & Vehicle Slowed By Grade/Load |
93-104 MPH |
92-103 MPH |
59-66 MPH |
28-33 MPH |
