Mode Control Switch

WARNING: This page is about a different car, the 2001 Acura Integra, 2000 Acura Integra, and 1999 Acura Integra. However, it is still accessible from the selected car via links, so may be relevant.

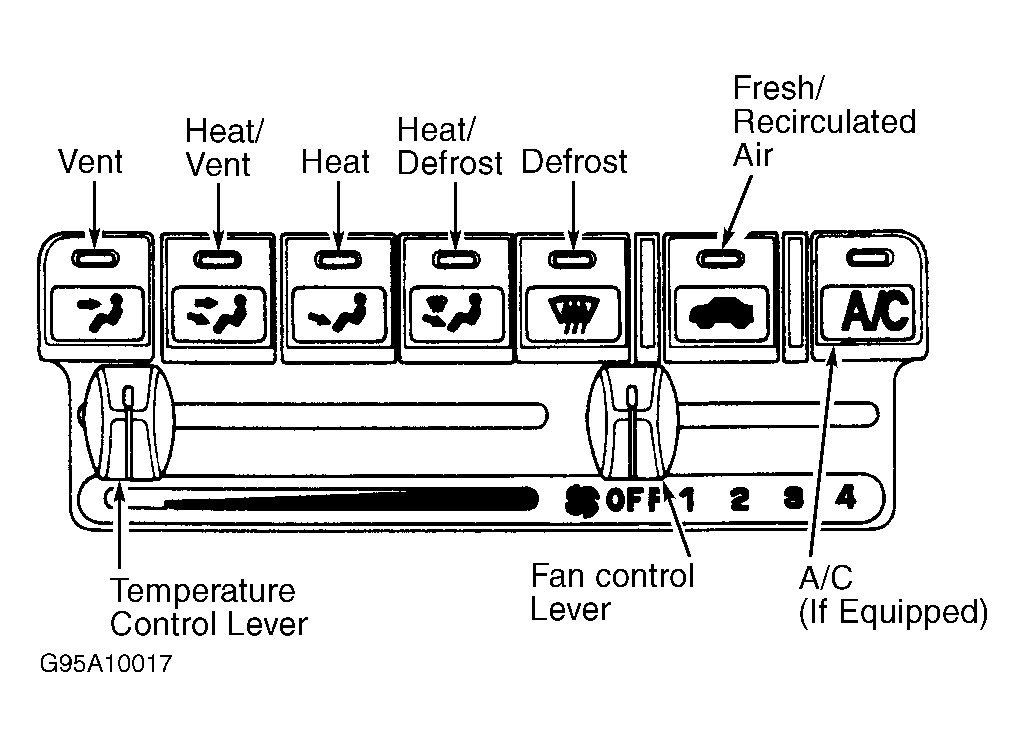

  1. With heat mode button depressed, continuity should exist between terminals No. 1 and 4. With heat/defrost mode button depressed, continuity should exist between terminals No. 2 and 4. See Figure and Figure .
  2. With defrost mode button depressed, continuity should exist between terminals No. 3 and 4. With vent mode button depressed, continuity should exist between terminals No. 4 and 7. With heat/vent mode button depressed, continuity should exist between terminals No. 4 and 8. If continuity is not as specified, replace heater control panel.
