Mode Control Motor

WARNING: This page is about a different car, the 2001 Acura Integra, 2000 Acura Integra, and 1999 Acura Integra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver's side lower instrument panel cover. Unplug connector from mode control motor. Ground terminal No. 8 and apply battery voltage to terminal No. 4 of mode control motor connector. See Fig 1 . Using a jumper wire, connect terminal No. 8 individually to terminals No. 1, 2, 3, 6 and 7 (in order listed) at mode control motor connector.
  2. Each time each wire is grounded, the mode control motor should run smoothly and stop. If motor does not operate as indicated, remove motor. See MODE CONTROL MOTOR  under REMOVAL & INSTALLATION.
  3. Check mode control linkage and doors for free movement. If doors and linkage bind, repair linkage or doors as necessary. If doors and linkage move freely, replace mode control motor.
NOTE: If motor does not run when terminal No. 1 is first grounded, ground that terminal again after grounding the other terminals. Motor is okay if it runs when grounding terminal No. 1 the second time.

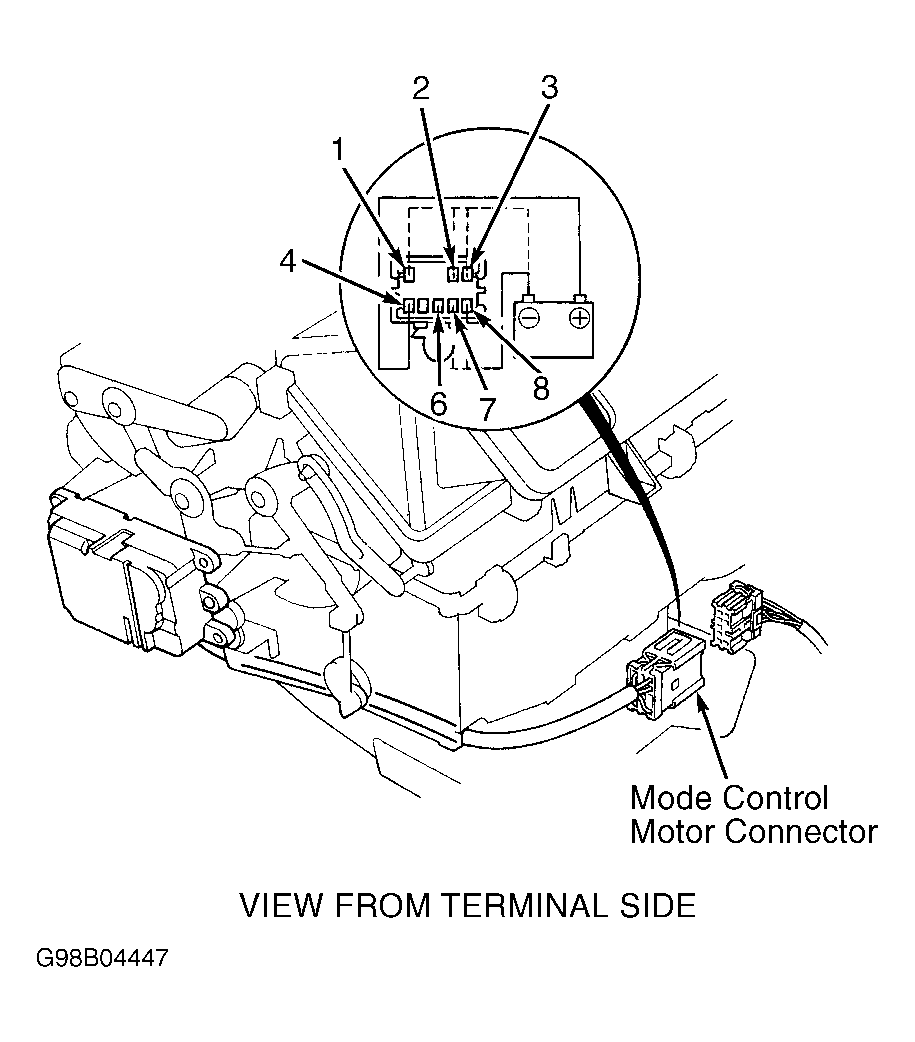

Fig 1: Identifying Mode Control Motor Connector Terminals
G98B04447Courtesy of AMERICAN HONDA MOTOR CO., INC.
