Hazard Warning Switch Test

WARNING: This page is about a different car, the 1997 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between specified switch terminals with switch in ON and OFF position. See Fig 1 . If continuity is not as specified, replace hazard warning switch. If continuity is as specified, check turn signal/hazard relay input. See TURN SIGNAL/HAZARD RELAY INPUT TEST under SYSTEM TESTS.

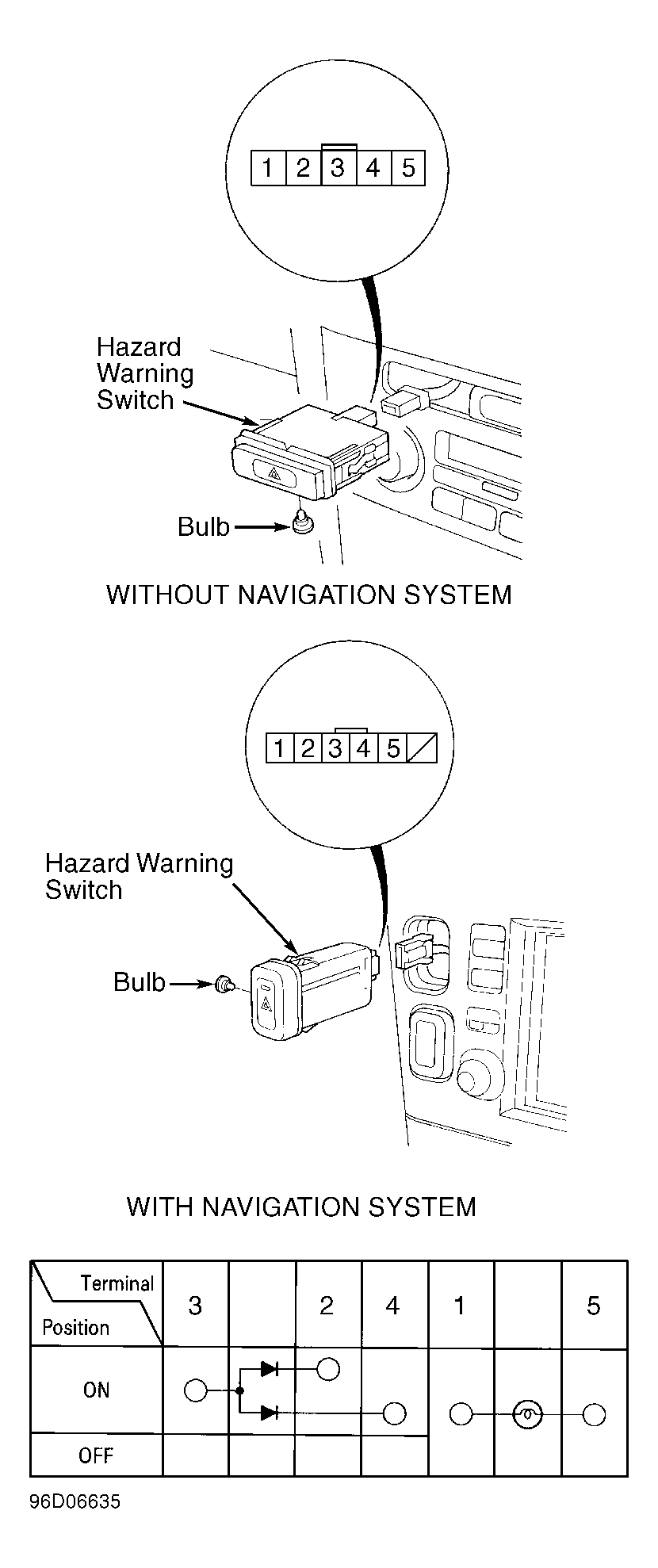

Fig 1: Testing Hazard Warning Switch
G96D06635Courtesy of AMERICAN HONDA MOTOR CO., INC.
