Symptom Troubleshooting Index

These symptoms DO NOT trigger Diagnostic Trouble Codes (DTCs) or cause the [D 4 ] indicator to blink. If the MIL was reported ON or the [D 4 ] indicator has been blinking, check for DTCs. But if the vehicle has one of the symptoms in the following chart, check the probable causes(s) for it, in the sequence listed, until you find the problem.

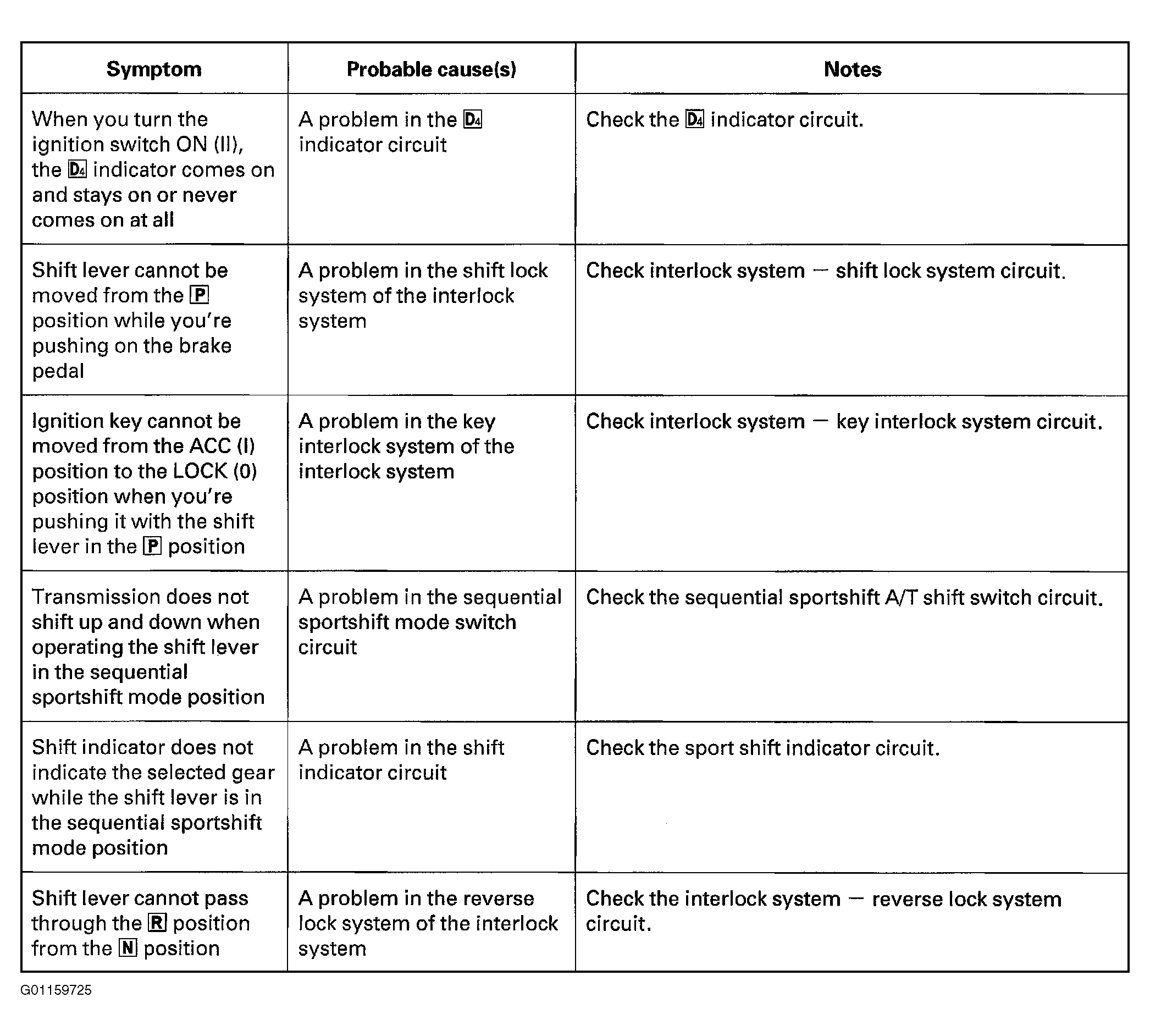

Fig 1: Symptom Troubleshooting Index (1 of 10)
G01159725

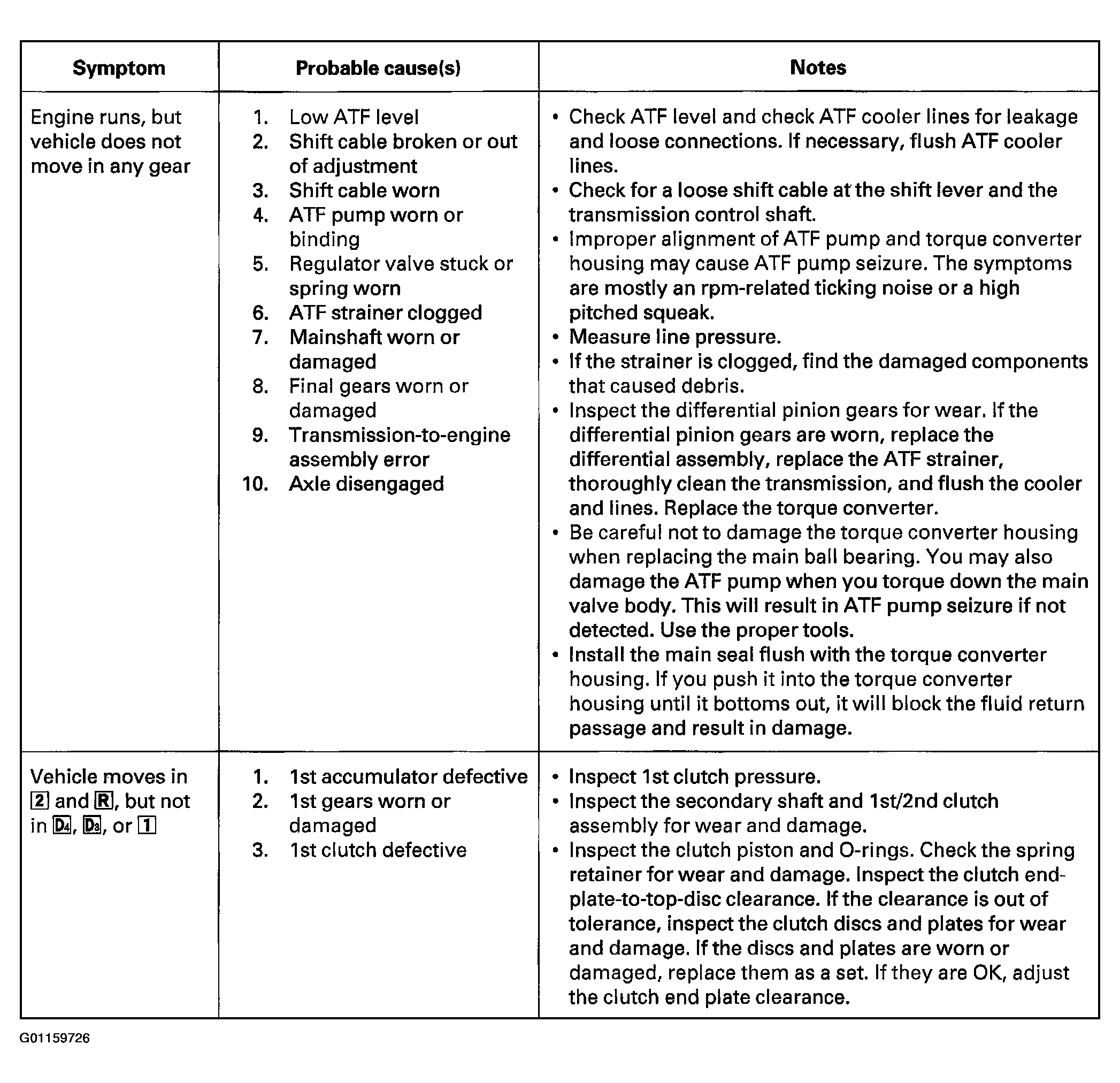

Fig 2: Symptom Troubleshooting Index (2 of 10)
G01159726

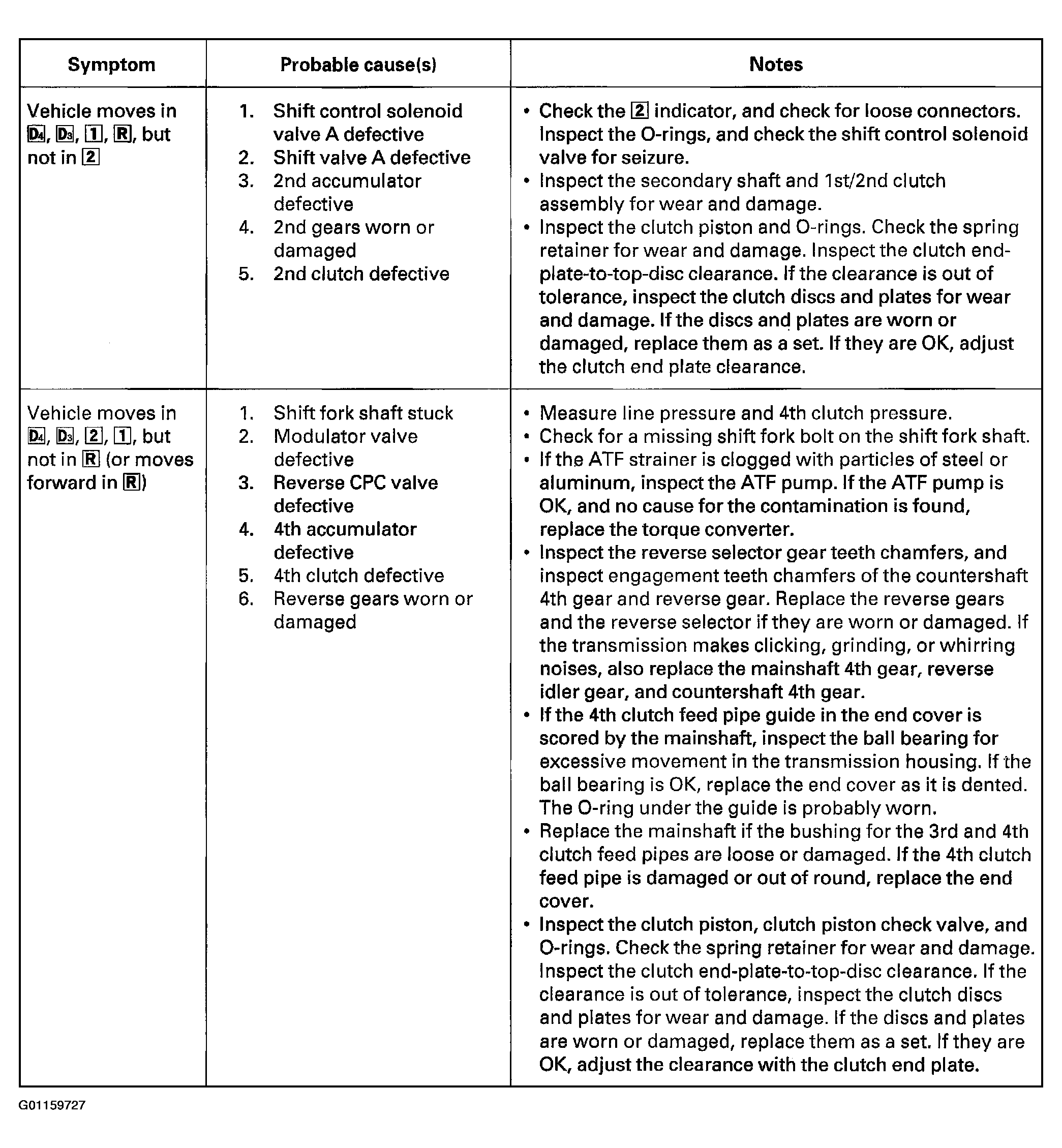

Fig 3: Symptom Troubleshooting Index (3 of 10)
G01159727

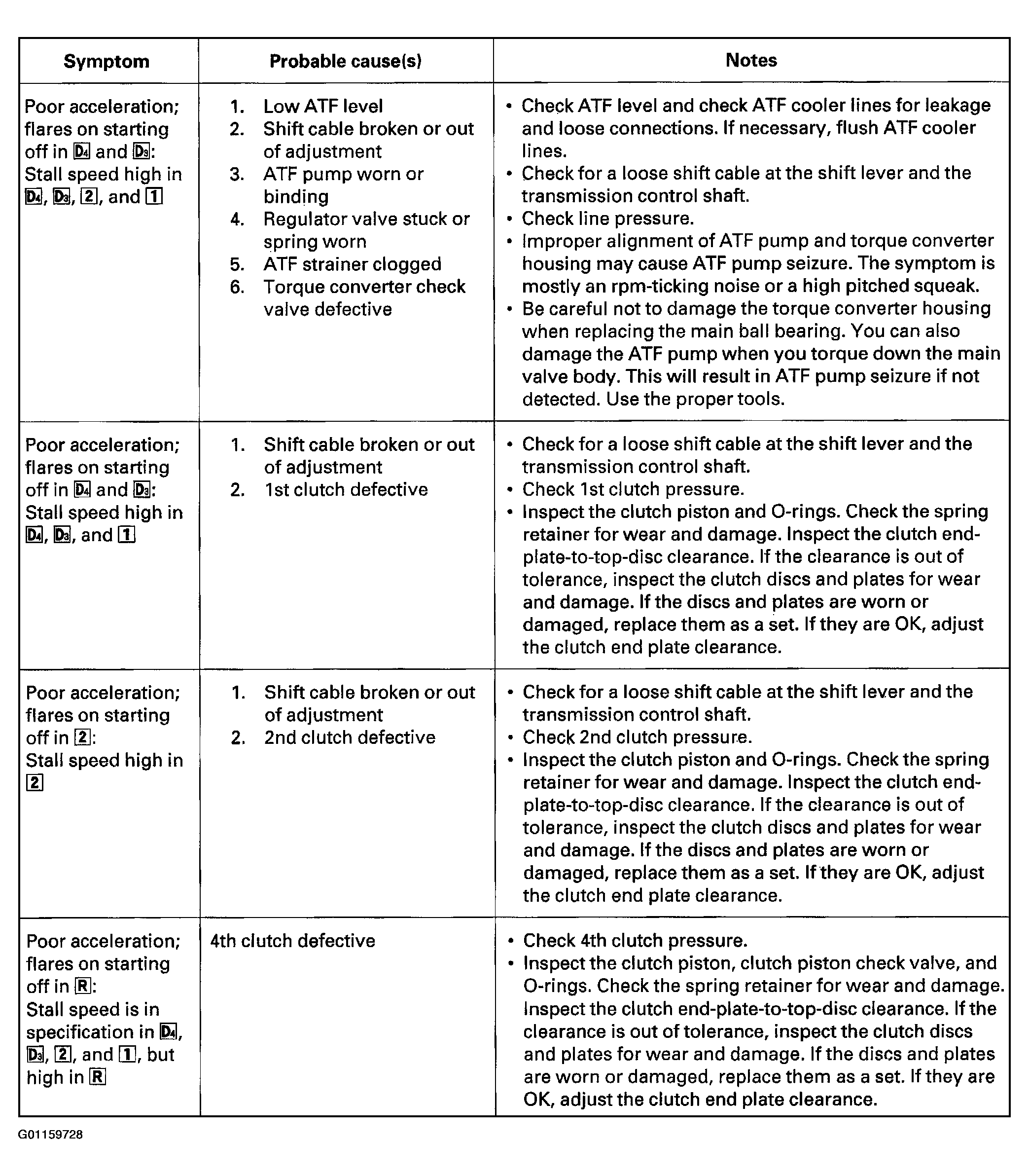

Fig 4: Symptom Troubleshooting Index (4 of 10)
G01159728

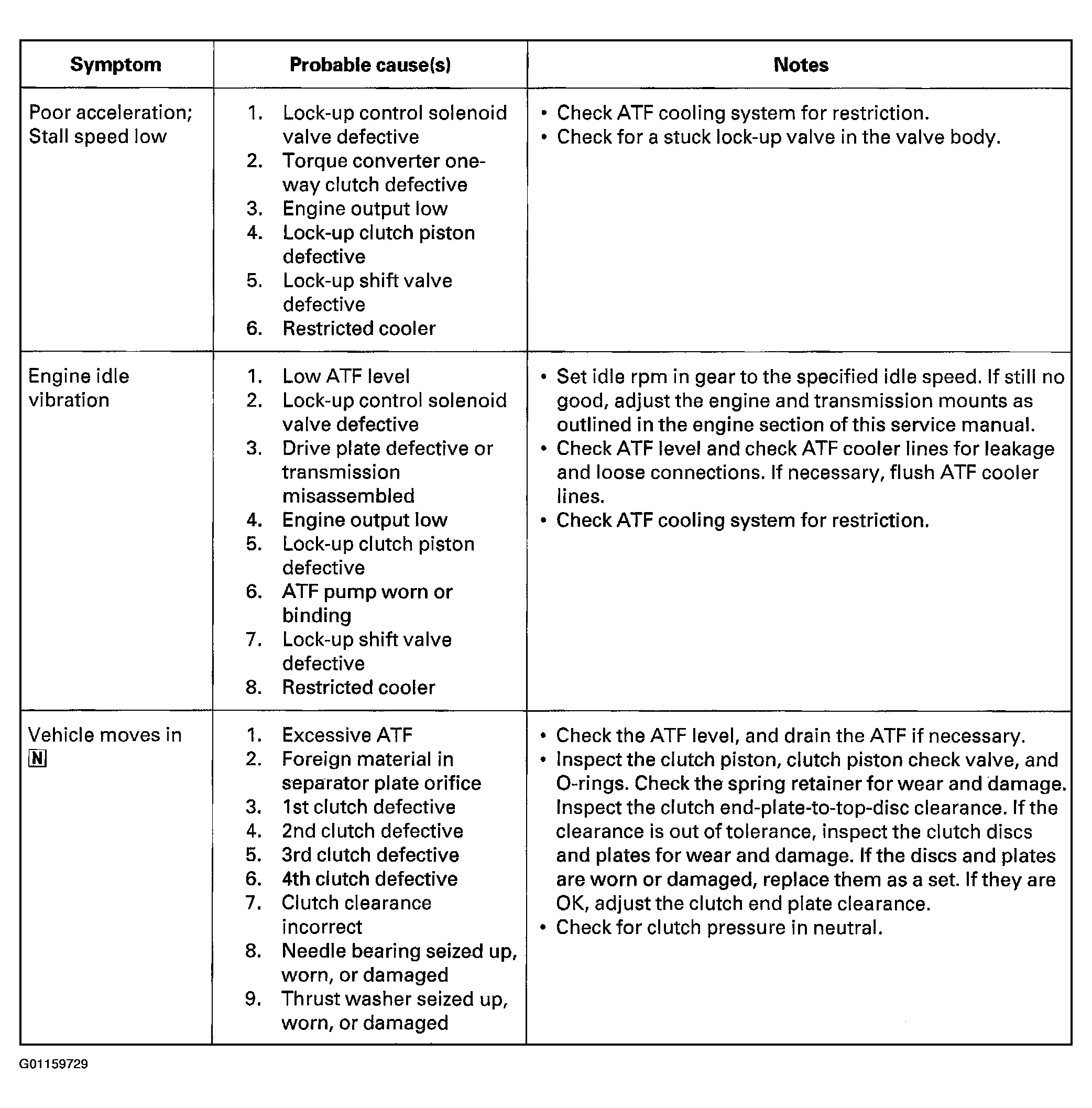

Fig 5: Symptom Troubleshooting Index (5 of 10)
G01159729

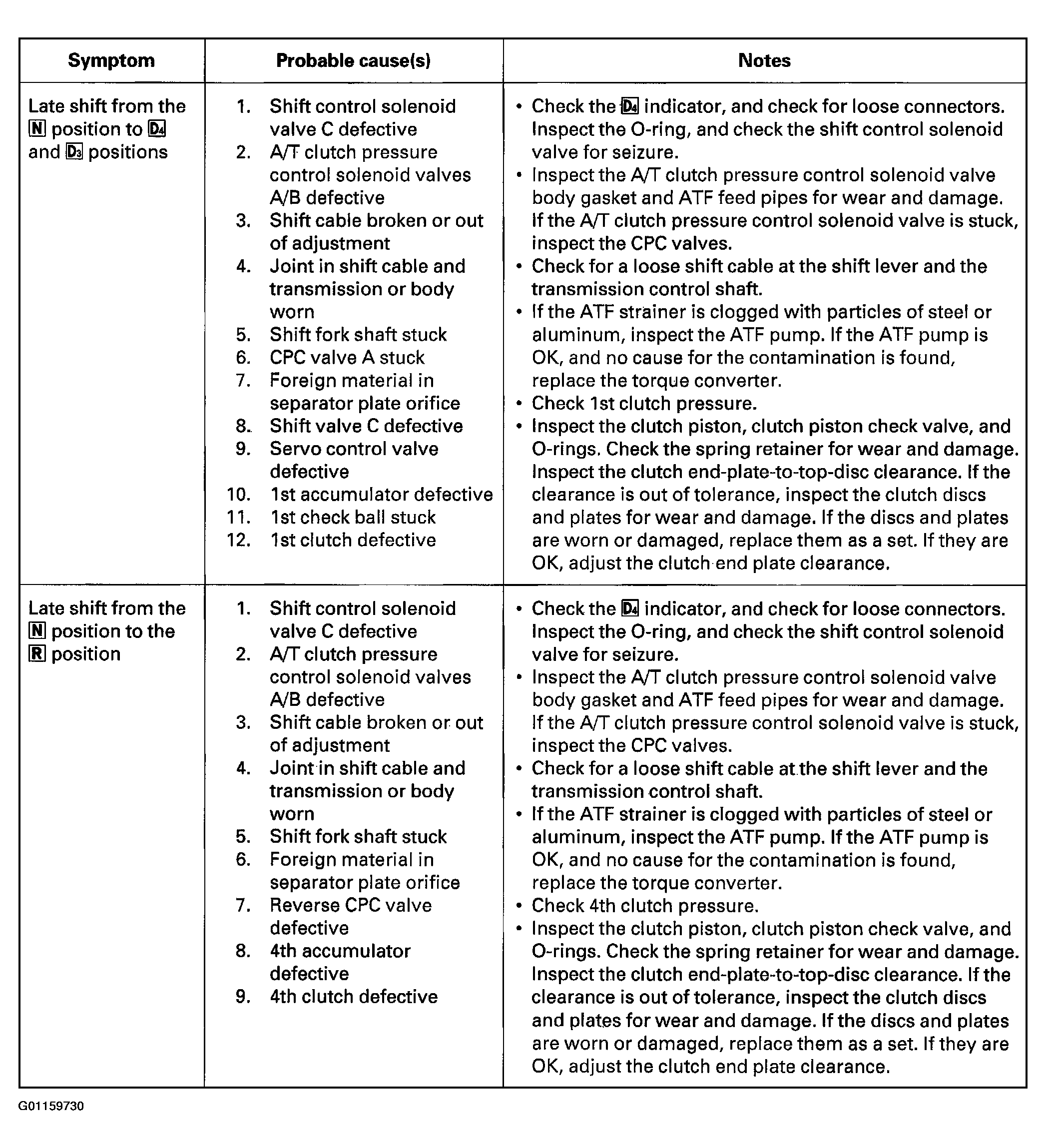

Fig 6: Symptom Troubleshooting Index (6 of 10)
G01159730

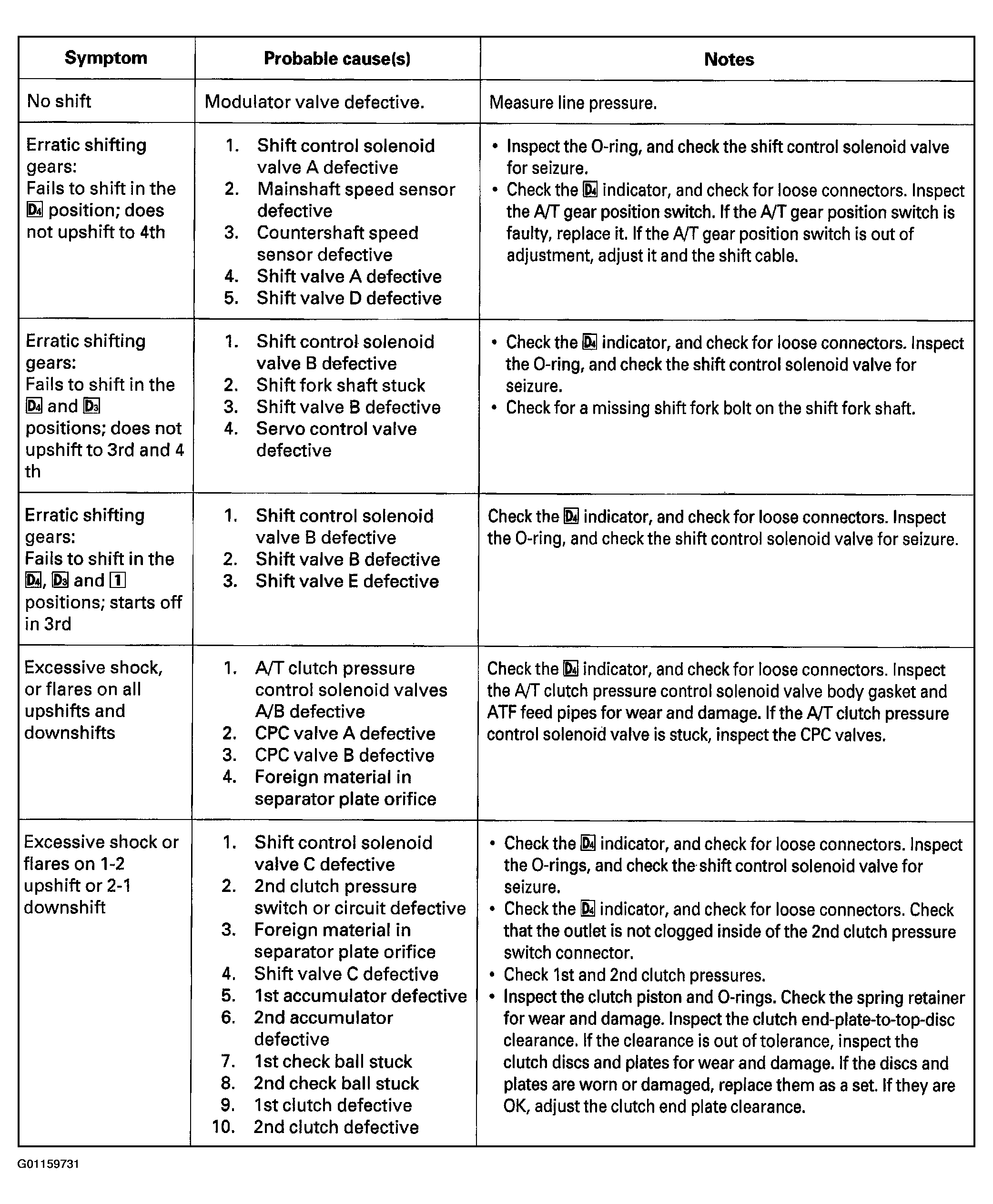

Fig 7: Symptom Troubleshooting Index (7 of 10)
G01159731
Fig 8: Symptom Troubleshooting Index (8 of 10)
G01159732

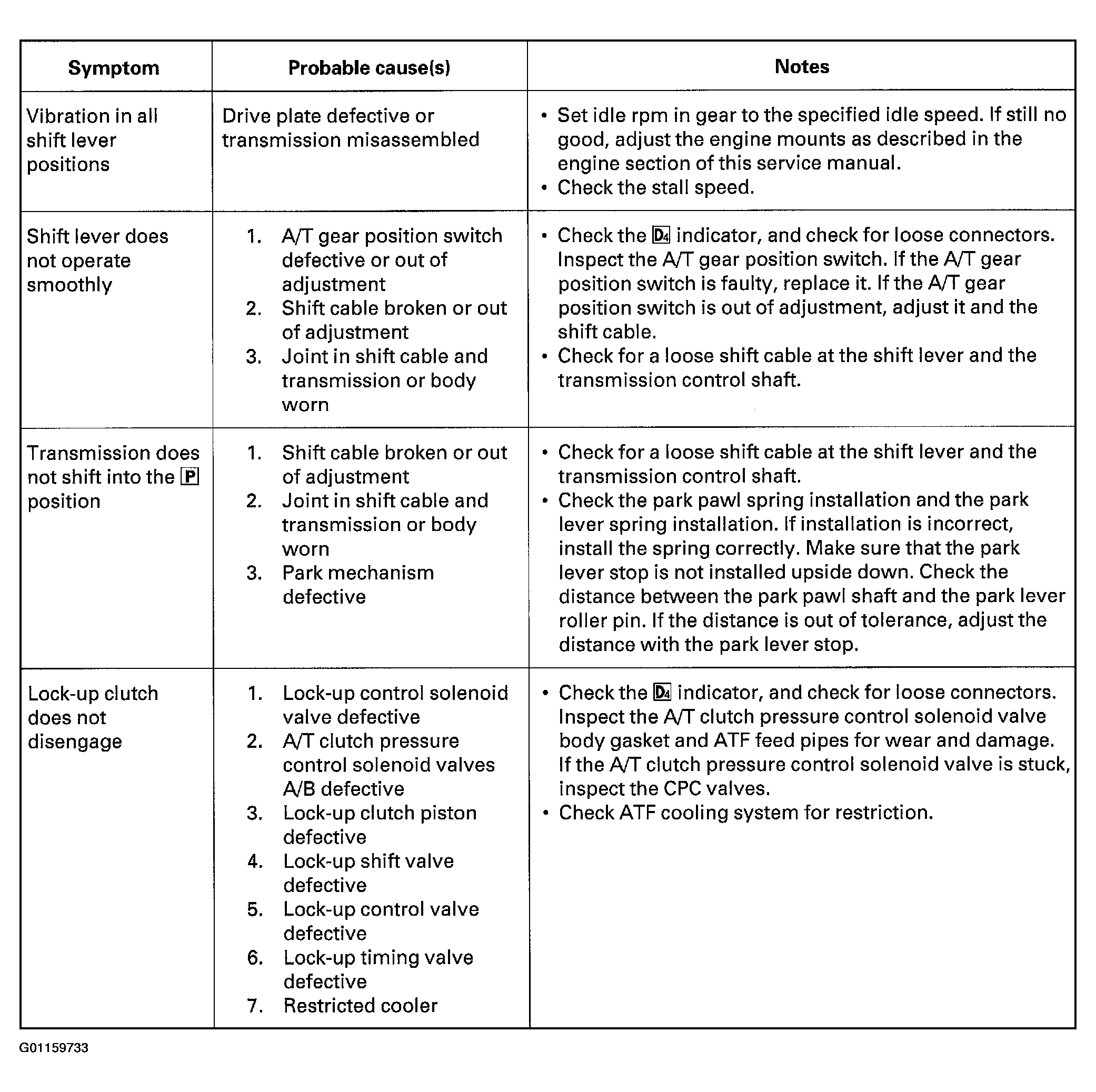

Fig 9: Symptom Troubleshooting Index (9 of 10)
G01159733

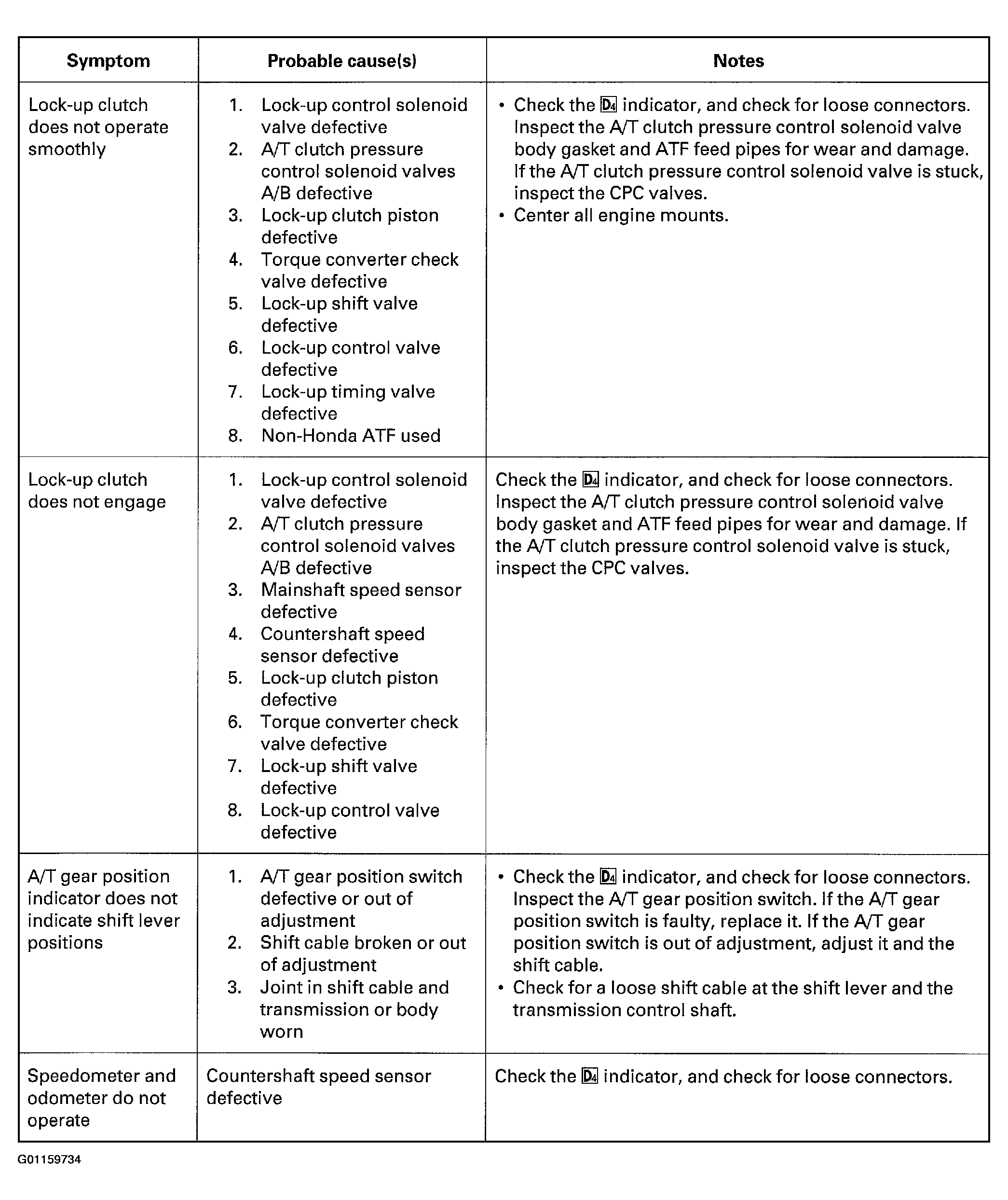

Fig 10: Symptom Troubleshooting Index (10 of 10)
G01159734
