System Description
›
Transmission Sectional View
Transmission Sectional View

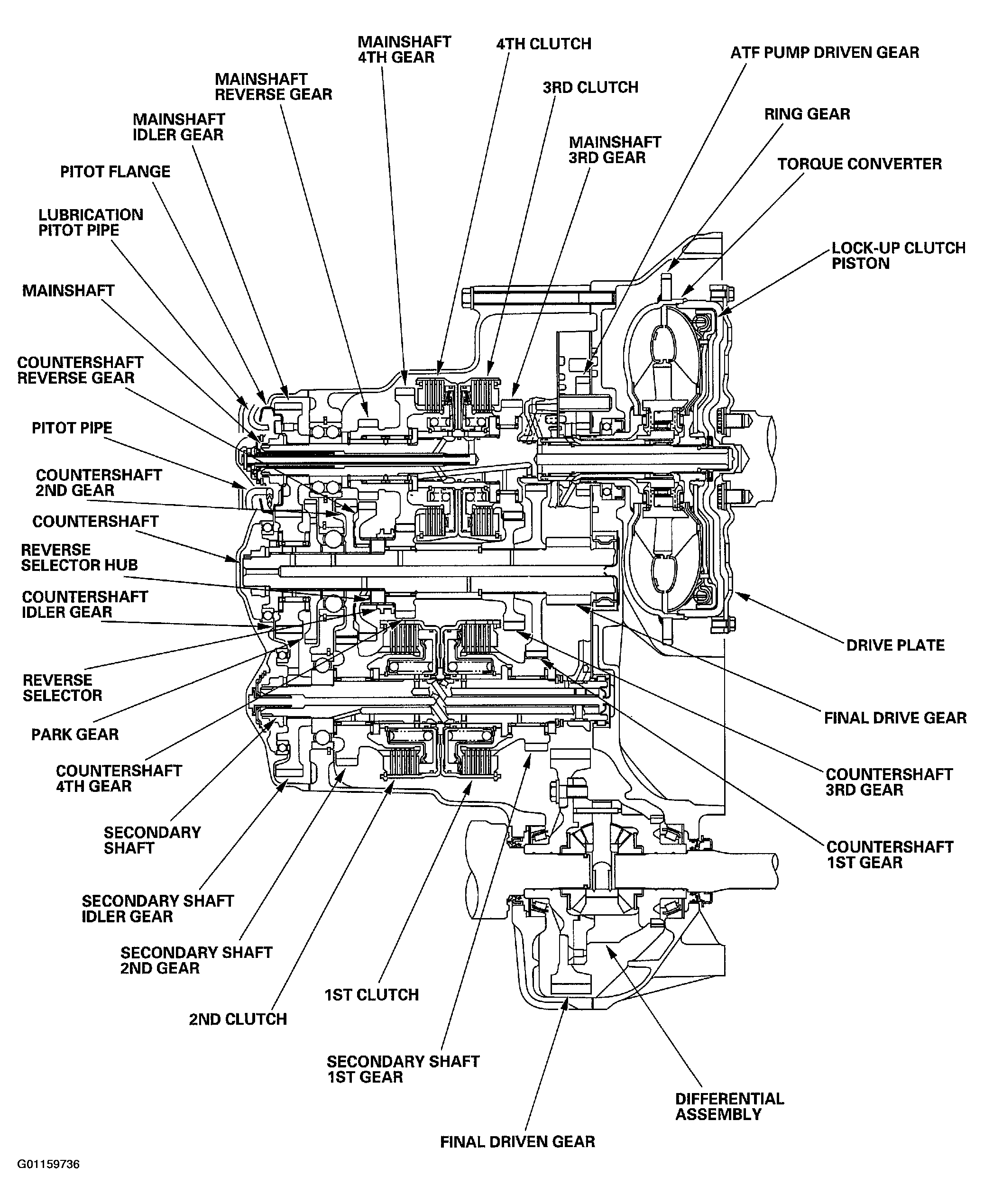

Fig 1: Identifying Transmission Sectional View
