Right Rear Window Switch Connector End View
Right Rear Window Switch Connector End View

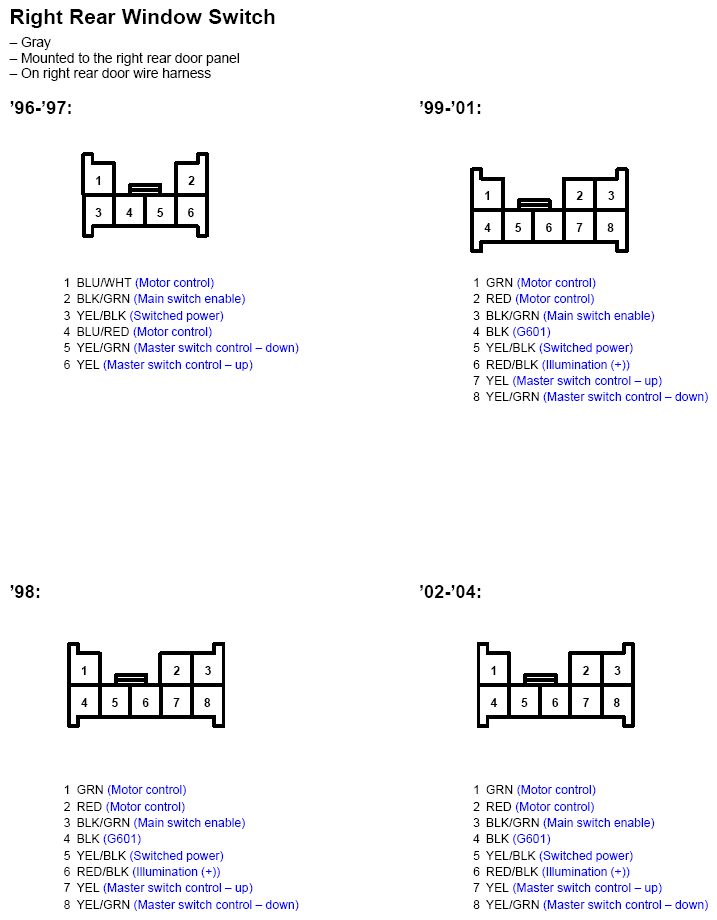

Fig 1: Right Rear Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
