A/T Gear Position Switch

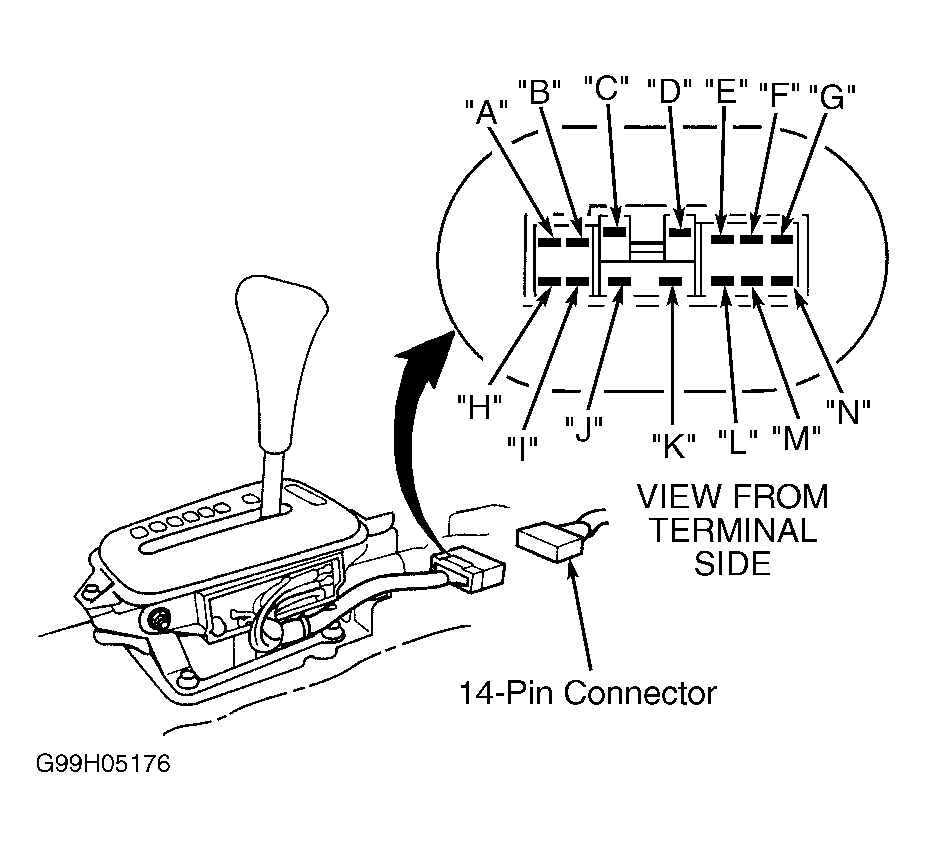

Remove console. Disconnect gear position switch 14-pin connector. Check for continuity within range of free play as specified in each gear position while moving gear shift lever without touching push button. See A/T GEAR POSITION SWITCH CONTINUITY table. See Fig 1 . If continuity does not exist within range of free play as specified, adjust position switch. If continuity still does not exist as specified, replace gear position switch.
A/T GEAR POSITION SWITCH CONTINUITY
| Gear Shift Position | Continuity Between Terminals | ||
|---|---|---|---|
| 1 | A & B | ||
| 2 | (1) I, A & E | ||
| D3 | (1) I, A & F | ||
| D4 | (1) I, A & G | ||
| N | A & N, J & K | ||
| R | A & M, C & D | ||
| P | A & L, J & K | ||
|
|||
