VSS Input Test

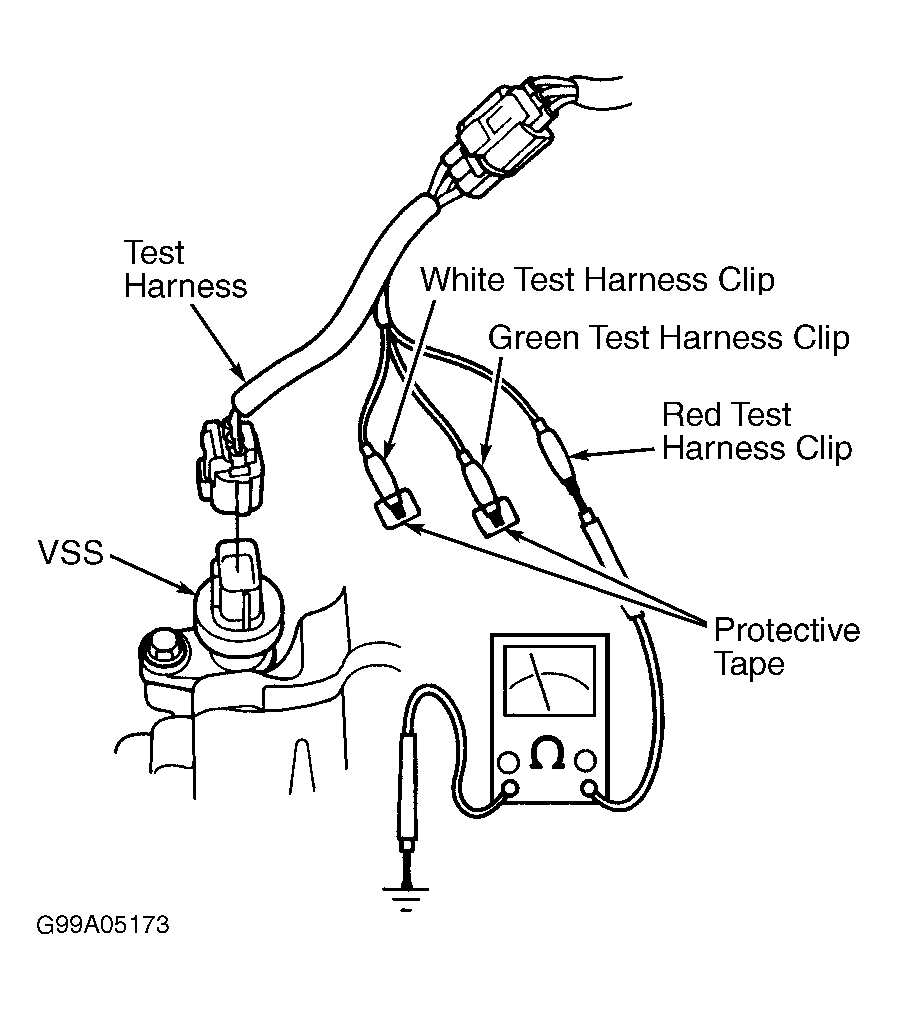

- Turn ignition switch to OFF position. Disconnect 3-pin connector from VSS. VSS is located on transaxle. Install Test Harness (07LAJ-PT3020A) to engine wire harness only. Connect DVOM positive probe to Red test harness clip and negative probe to ground See Fig 1
. If continuity exists, go to next step. If continuity does not exist, check for open or poor ground connection in Black wire between VSS and ground. WIRING DIAGRAMS
.
- Connect positive lead of DVOM to White test harness clip and negative DVOM probe to Red test harness clip. Turn ignition switch to ON position. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 15 (7.5-amp) and Black/Yellow wire for open or short to ground.
- Connect DVOM positive probe to Green test harness clip. Connect DVOM negative probe to Red test harness clip. Turn ignition switch to ON position. If 5 or more volts exists, go to next step. If 5 volts does not exist, repair open or short to ground in Blue/White wire. Blue/White wire can have a short to ground caused by a short in any connected component.
- Turn ignition switch to OFF position. Connect test harness connector to VSS. Raise and support vehicle. Place transmission in neutral and turn ignition switch to ON position. Rotate one front wheel while the other front wheel is kept from rotating. If DVOM reading varies between zero volts and 5 volts or greater, go to next step. If DVOM reading does not vary between zero volts and 5 volts or greater, replace VSS. See VEHICLE SPEED SENSOR (VSS)
under REMOVAL & INSTALLATION.
- Disconnect 16-pin connector "B" from instrument cluster. Using DVOM, measure voltage between ground and 16-pin instrument cluster connector "B" terminal No. 6 (Orange wire). See Fig 2
. Rotate one front wheel while the other front wheel is kept from rotating. If DVOM reading varies between zero volts and 5 volts or greater, replace speedometer. See INSTRUMENT CLUSTER
under REMOVAL & INSTALLATION. If DVOM reading does not vary between zero volts and 5 volts or greater, repair open in Orange wire and/or Blue/White wire between VSS and instrument cluster 16-pin connector "B".
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
