Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
ABS Control Unit	Behind Glove Compartment
ABS Fail-Safe Relays	In Underhood Relay Box B
ABS Motor Relay	In Underhood Fuse/Relay
ALB Or ABS Fuse	In Underhood Fuse/Relay Box
Inspection Connector	Under Glove Box
Service Check Connector	Under Glove Compartment
Solenoid Unit	Left Front Of Luggage Compartment
Speed Sensor	At Respective Wheel
Underhood Fuse/Relay Box	Right Front Of Luggage Compartment

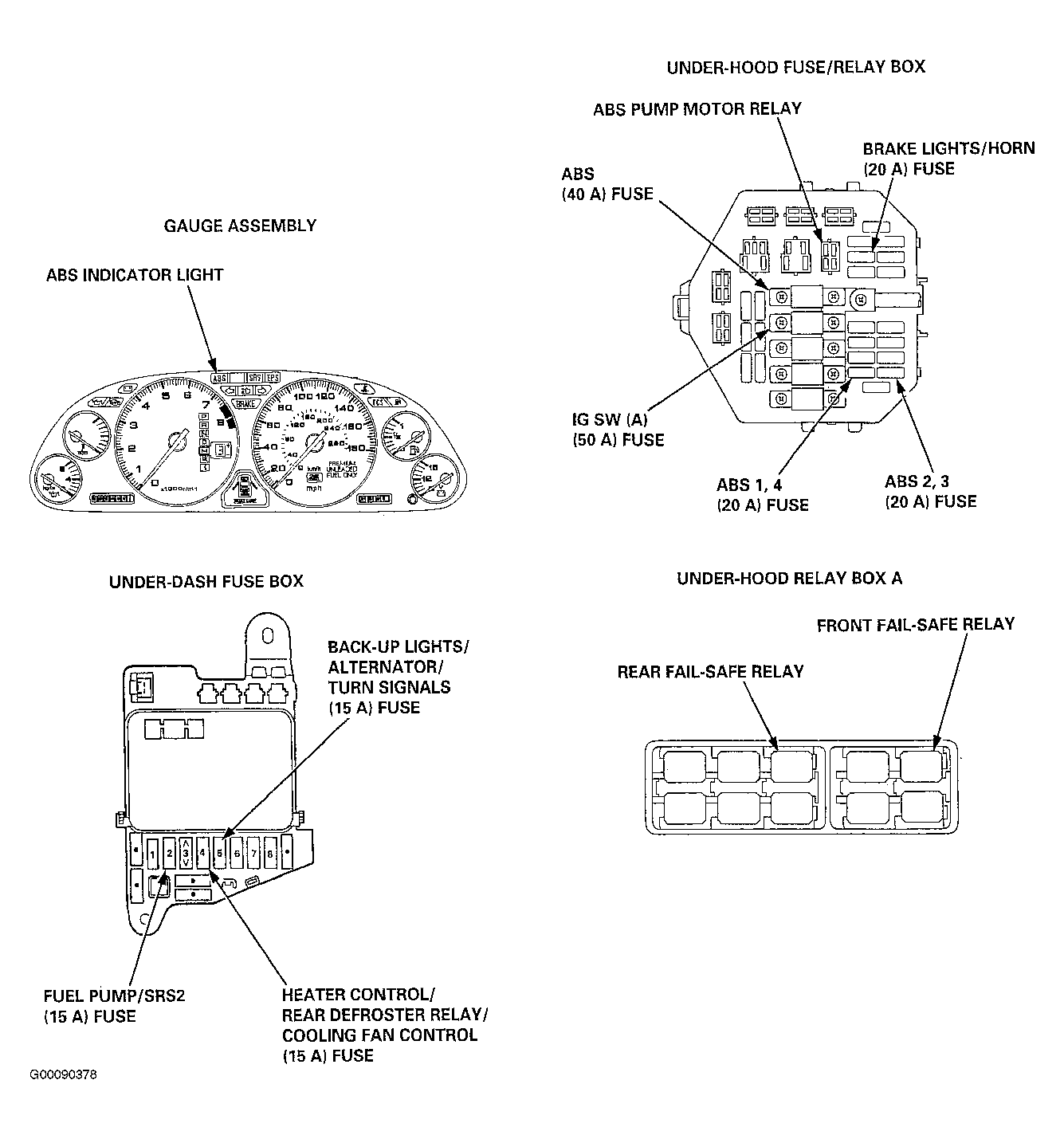

Fig 1: Locating ABS Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

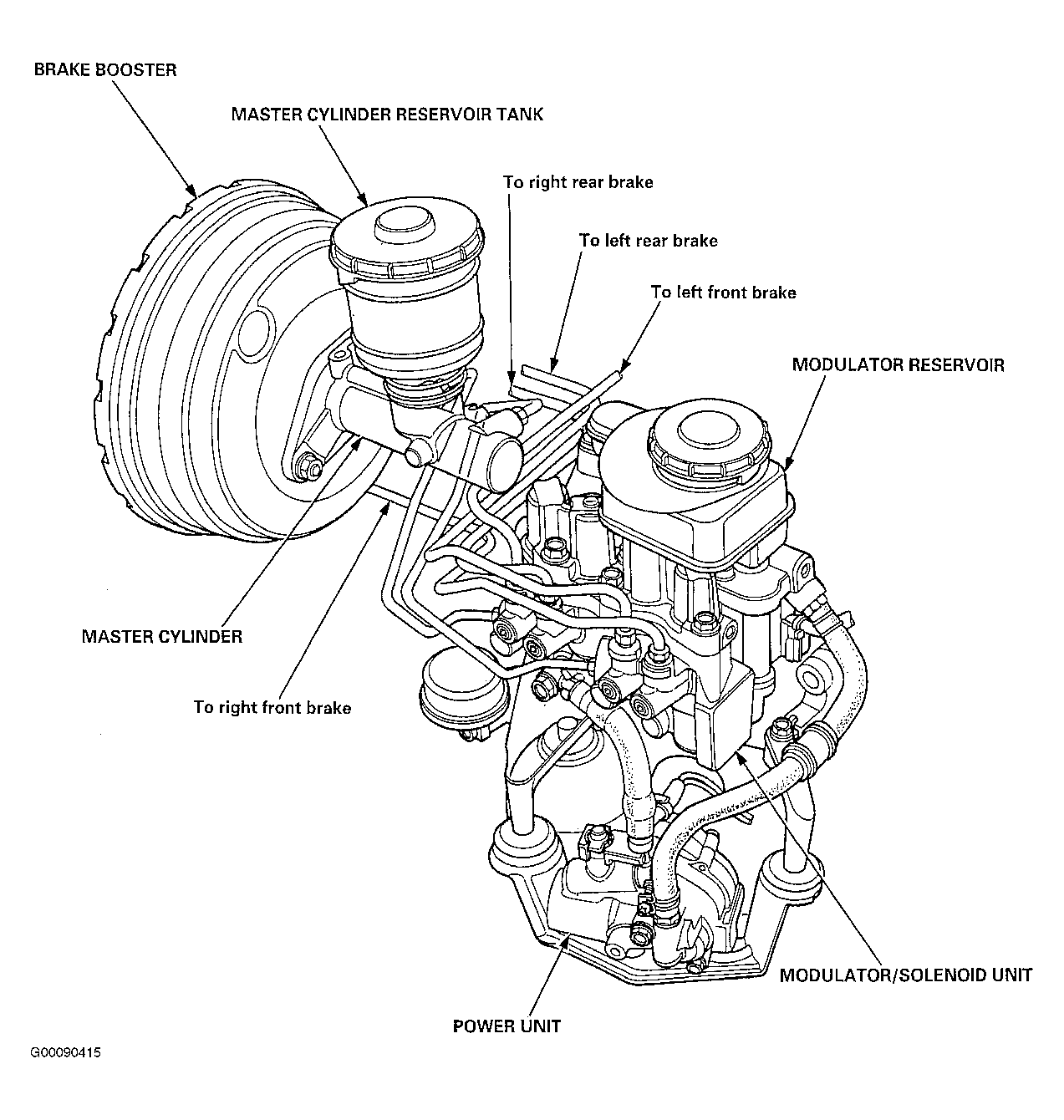

Fig 2: Locating ABS Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating ABS Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
