Pin Voltage Test

NOTE: For pin voltage test, see Fig 1 -Fig 4 .

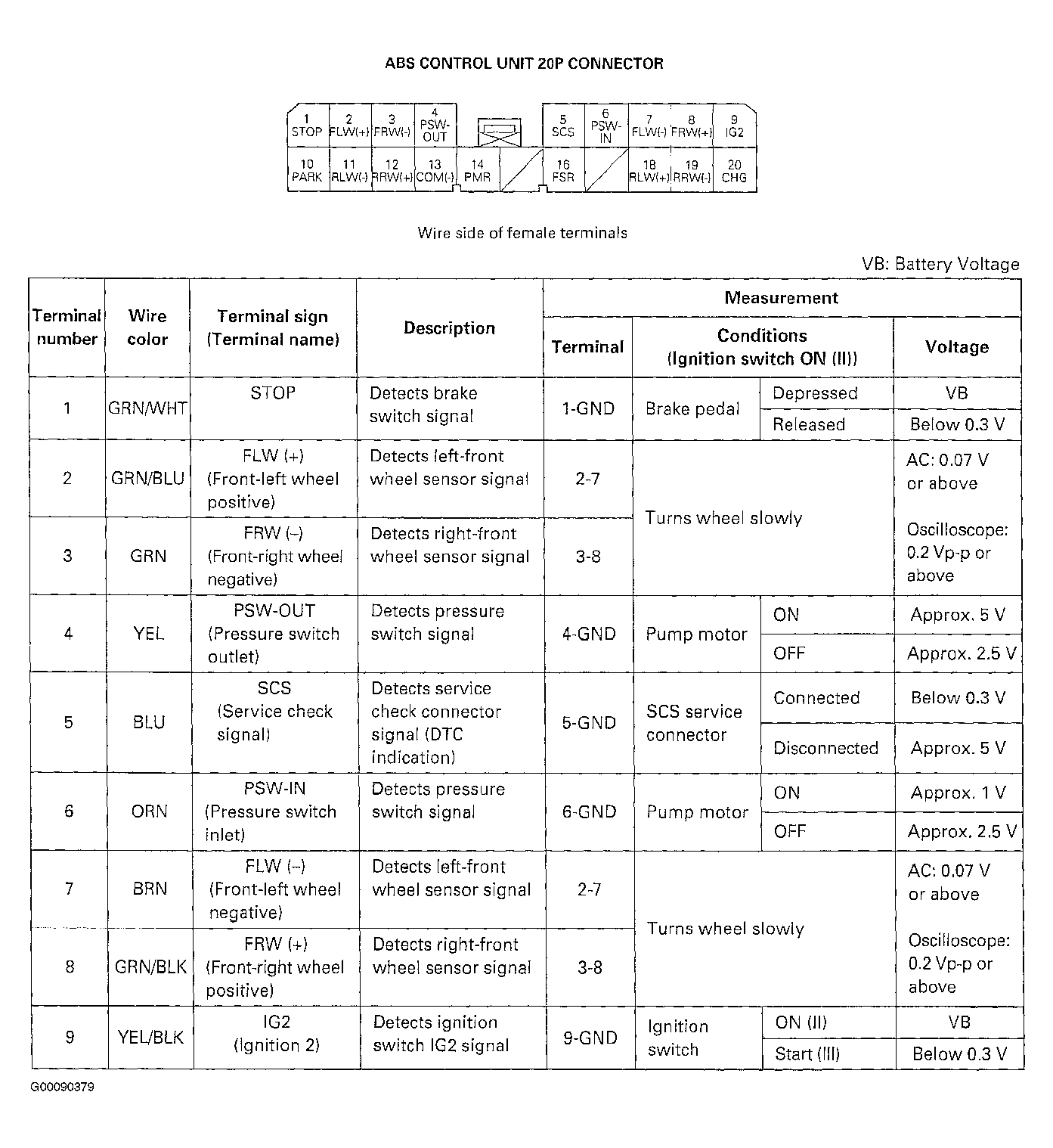

Fig 1: ABS Control Unit 20-P Connector Terminals No. 1-9 (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

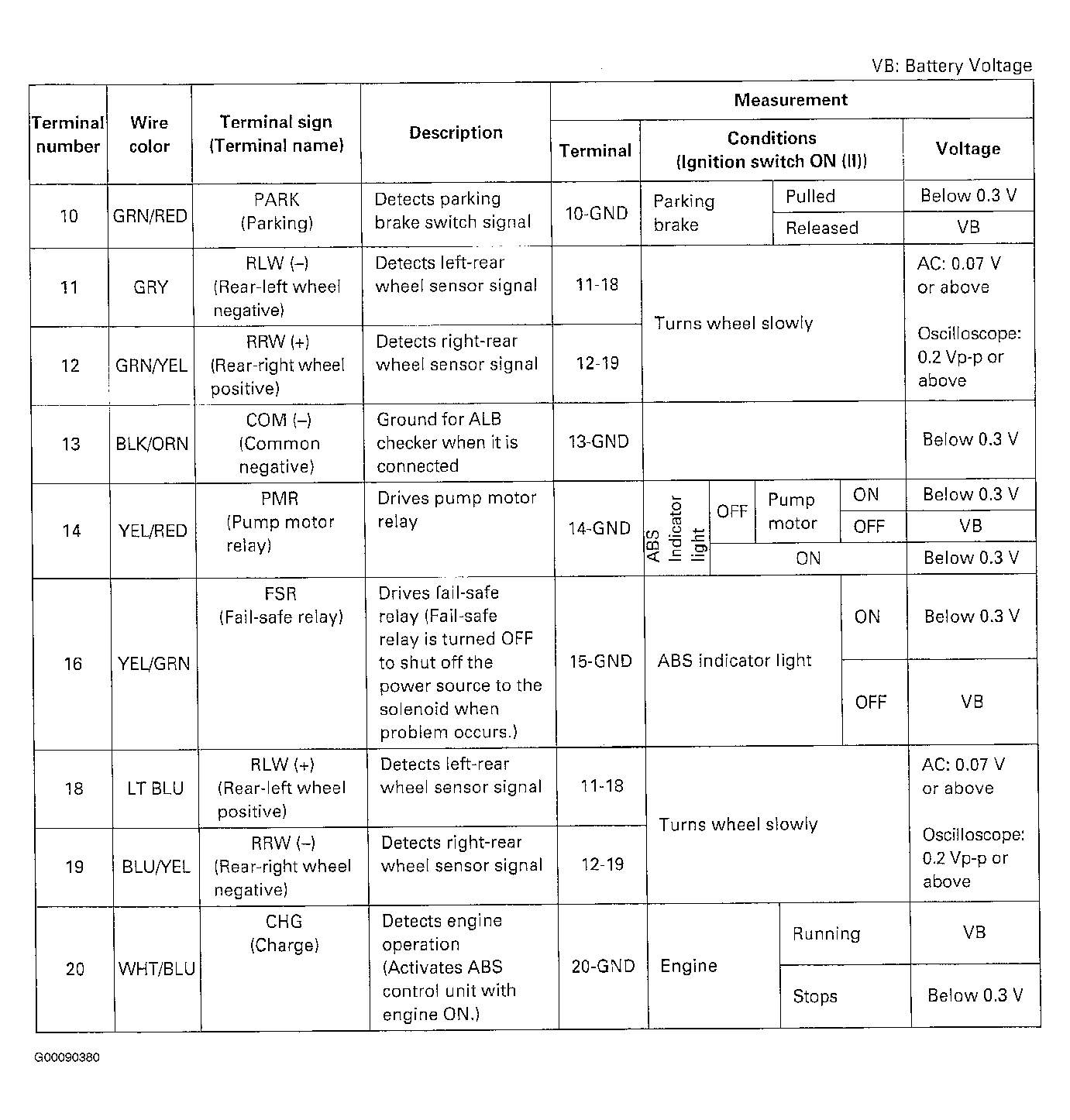

Fig 2: ABS Control Unit 20-P Connector Terminals No. 10-20 (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

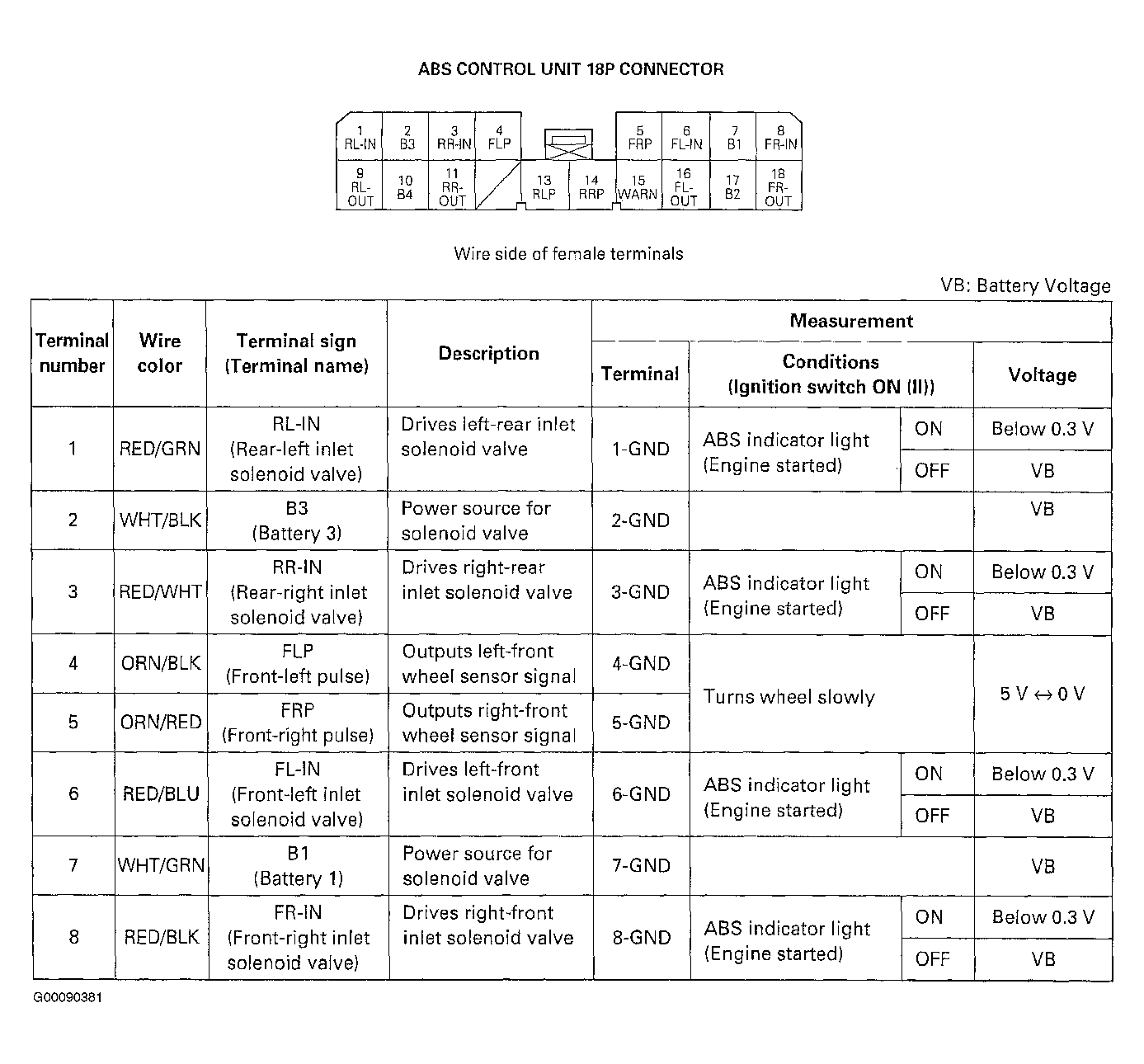

Fig 3: ABS Control Unit 18-P Connector Terminals No. 1-8 (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

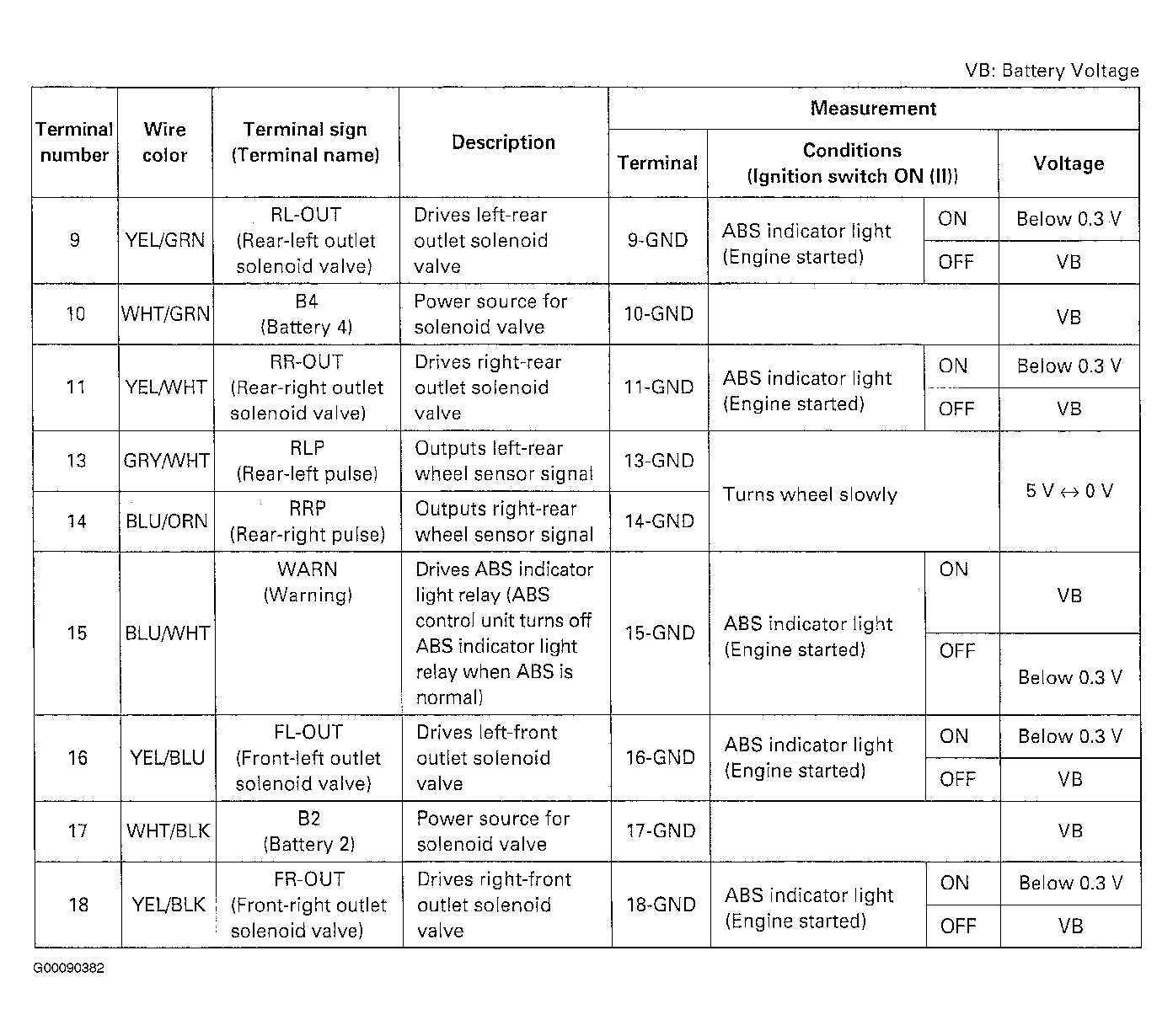

Fig 4: ABS Control Unit 18-P Connector Terminals No. 9-18 (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
