Fuse Box

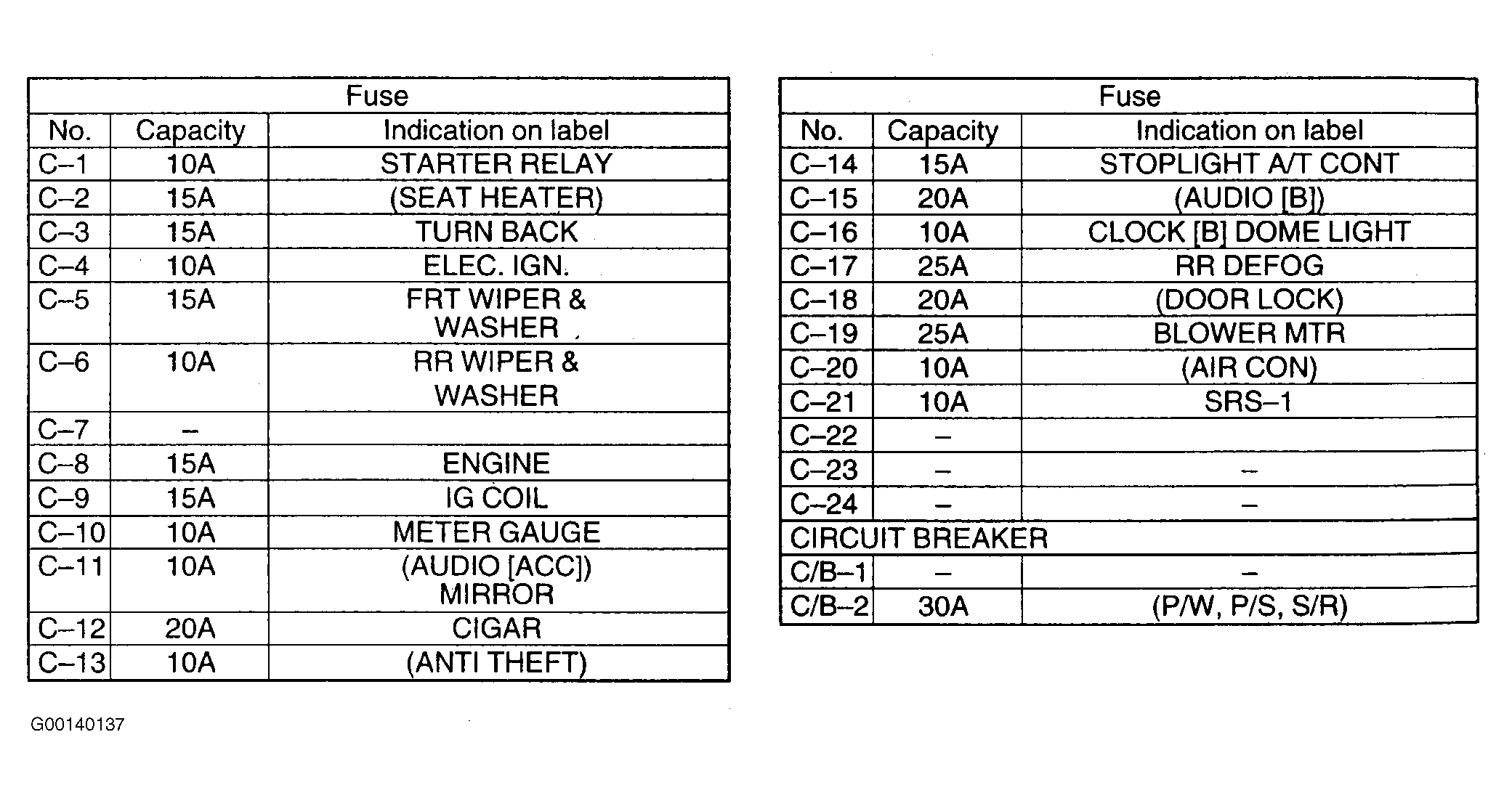

Fig 1: Identifying Fuse Box Components

G00140137

Courtesy of ISUZU MOTOR CO.

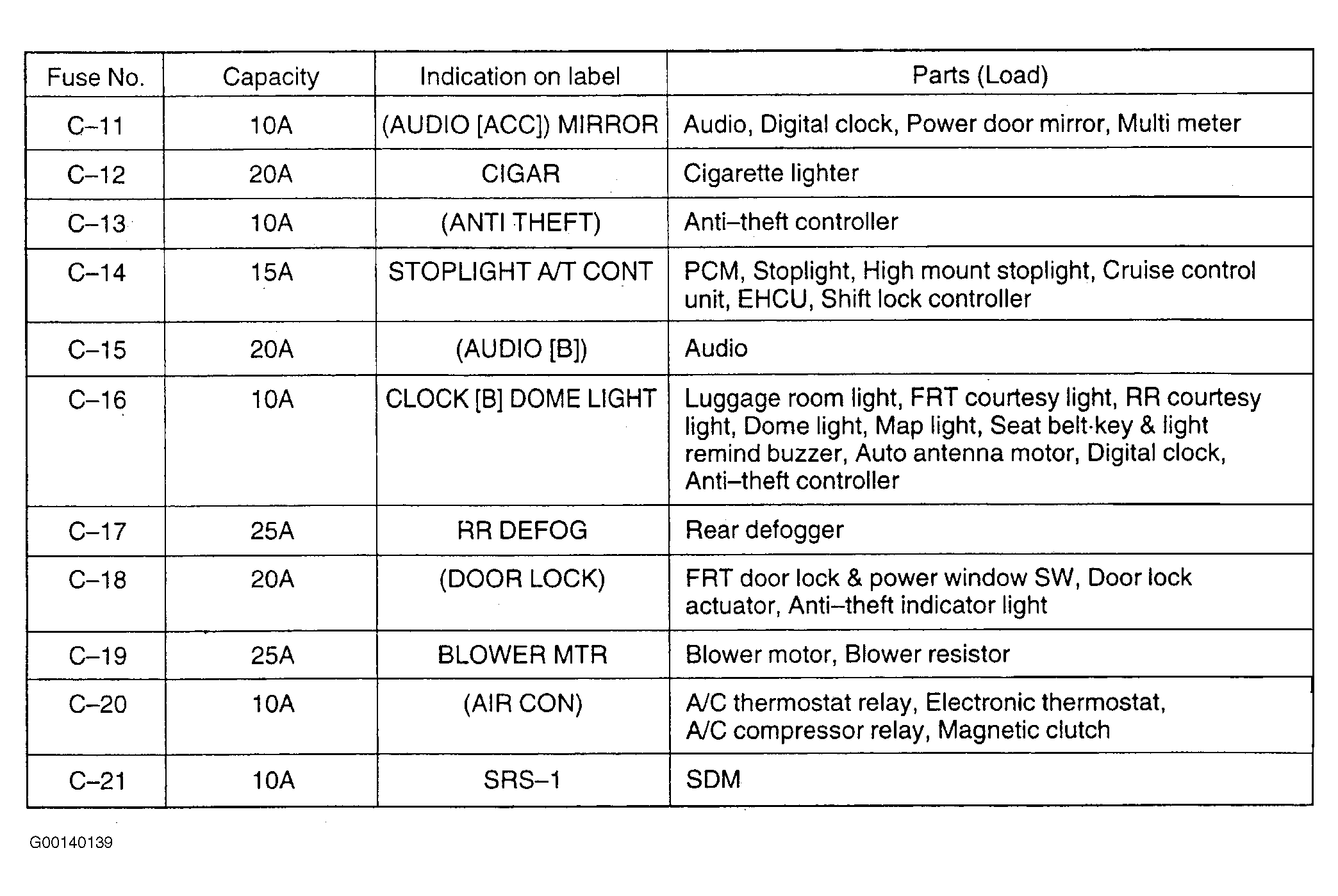

Fig 2: Identifying Fuse Box Circuits (2 Of 2)

G00140139

Courtesy of ISUZU MOTOR CO.

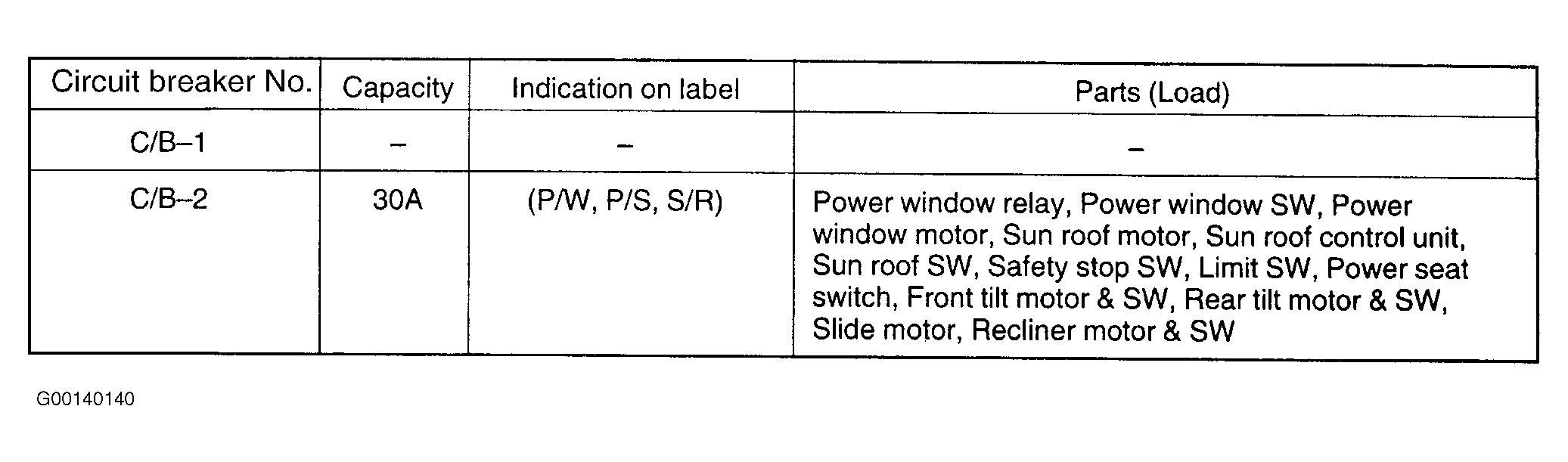

Fig 3: Identifying Fuse Box Circuit Breakers

G00140140

Courtesy of ISUZU MOTOR CO.
