Component Locations
Component Locations

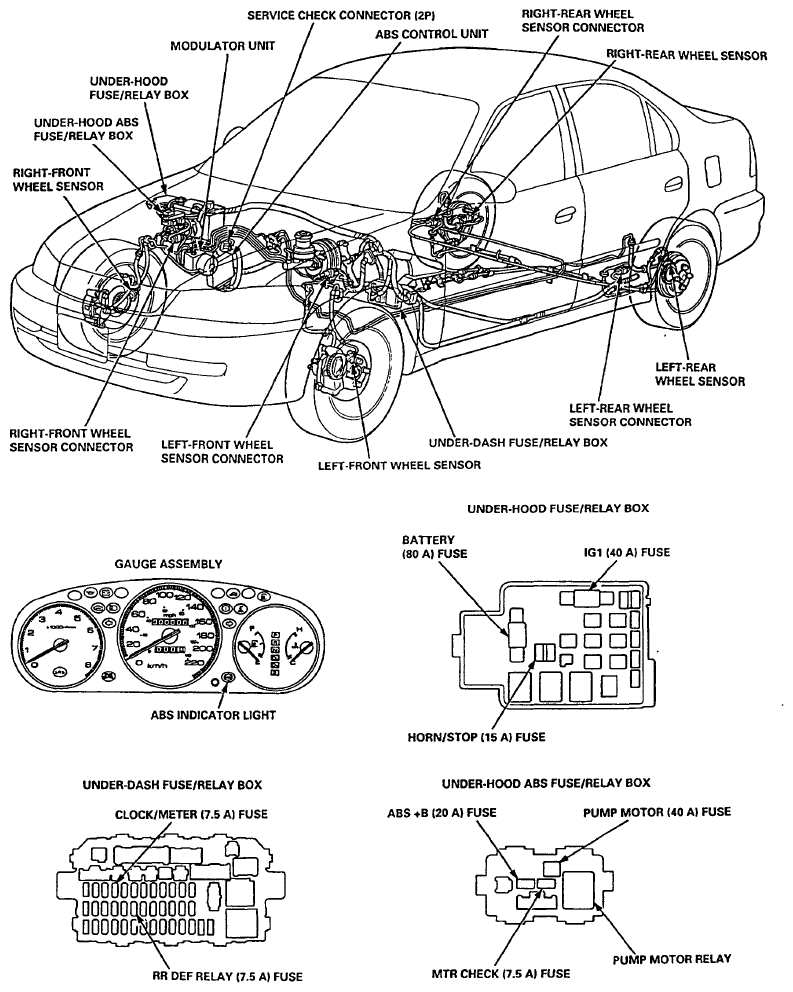

Fig 1: Identifying Anti-Lock Brake System (ABS) Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
