1997 Model

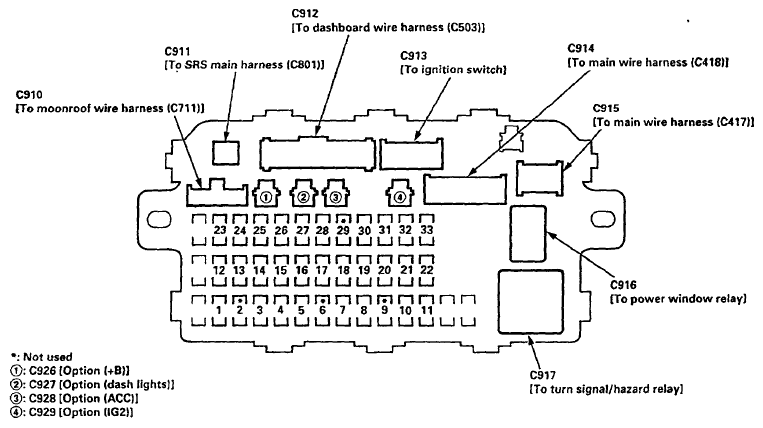

Fig 1: Identifying Under-Dash Fuse/Relay Box

G06290925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: View from the backside of the under-dash fuse/relay box.

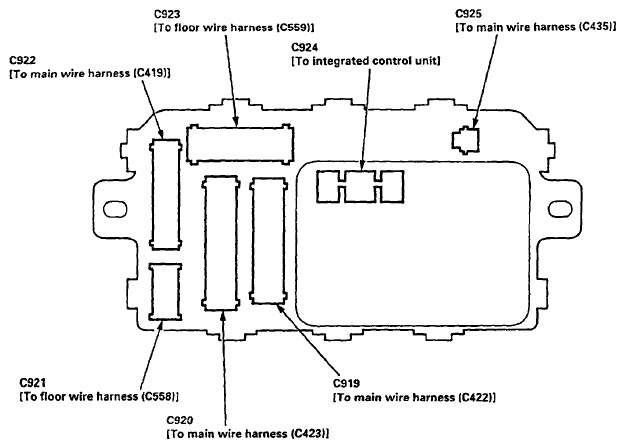

Fig 2: Identifying C923, C924, C925, C921, C920 And C919

G06290926

Courtesy of AMERICAN HONDA MOTOR CO., INC.
