1998-2000 Model
1998-2000 Model

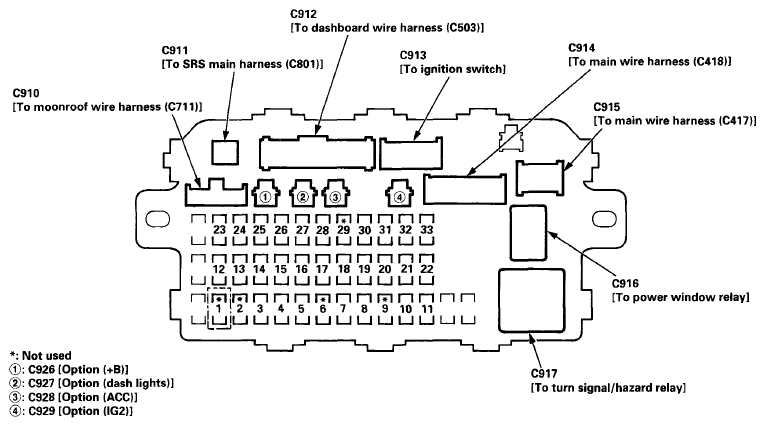

Fig 1: Identifying Under-Dash Fuse/Relay Box

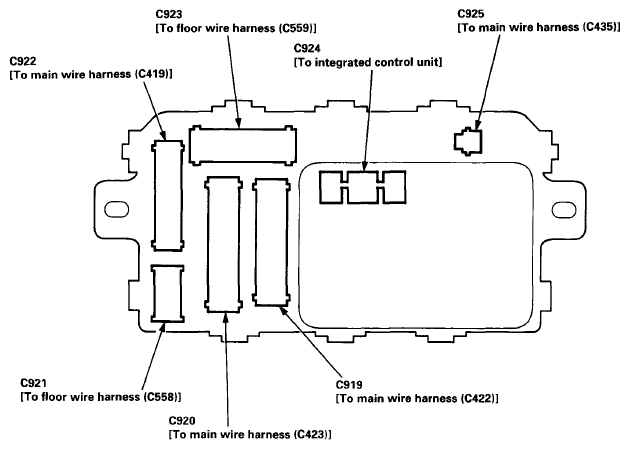

NOTE:
View from the backside of the under-dash fuse/relay box.
Fig 2: Identifying Under-Dash Fuse/Relay Box
