Three Way Catalytic Converter (TWC)
›
Troubleshooting Flowchart
Troubleshooting Flowchart

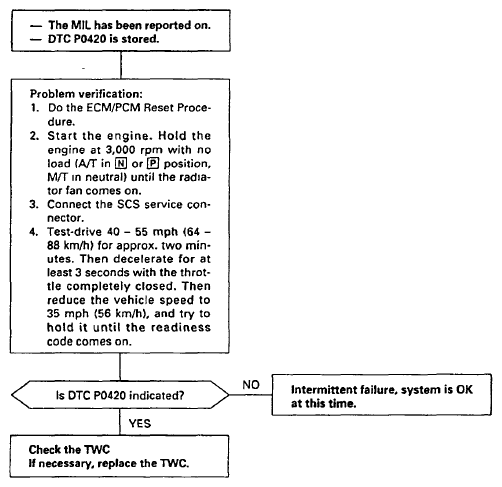

Fig 1: Troubleshooting Flow Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
