Troubleshooting Flowcharts
›
Air Conditioning Signal
›
1997-98 Models
1997-98 Models

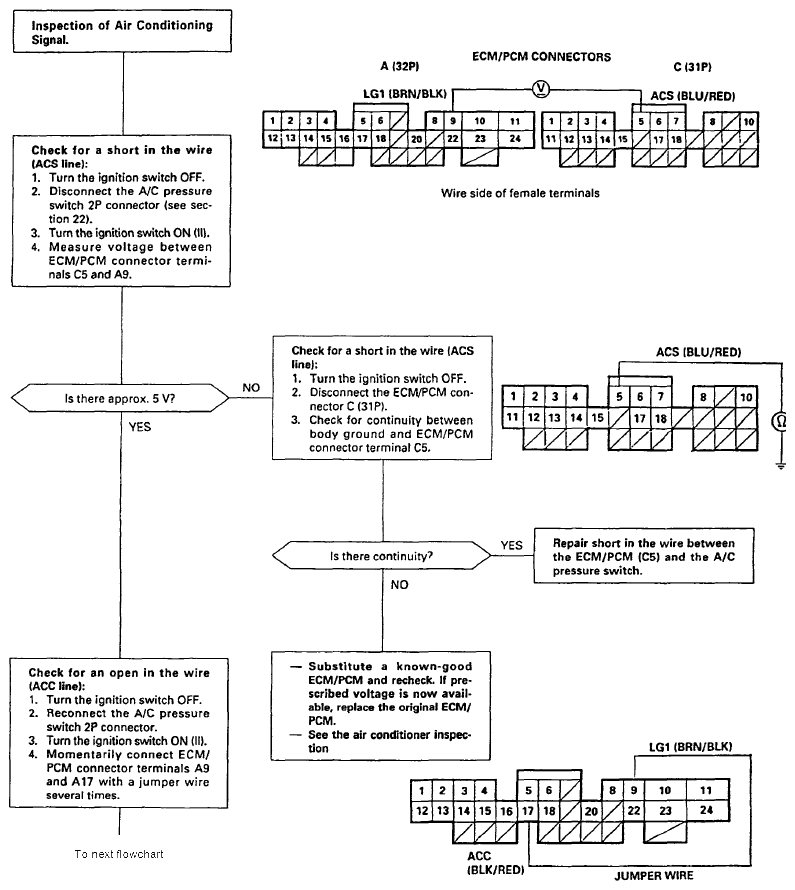

Fig 1: Air Conditioning Signal Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

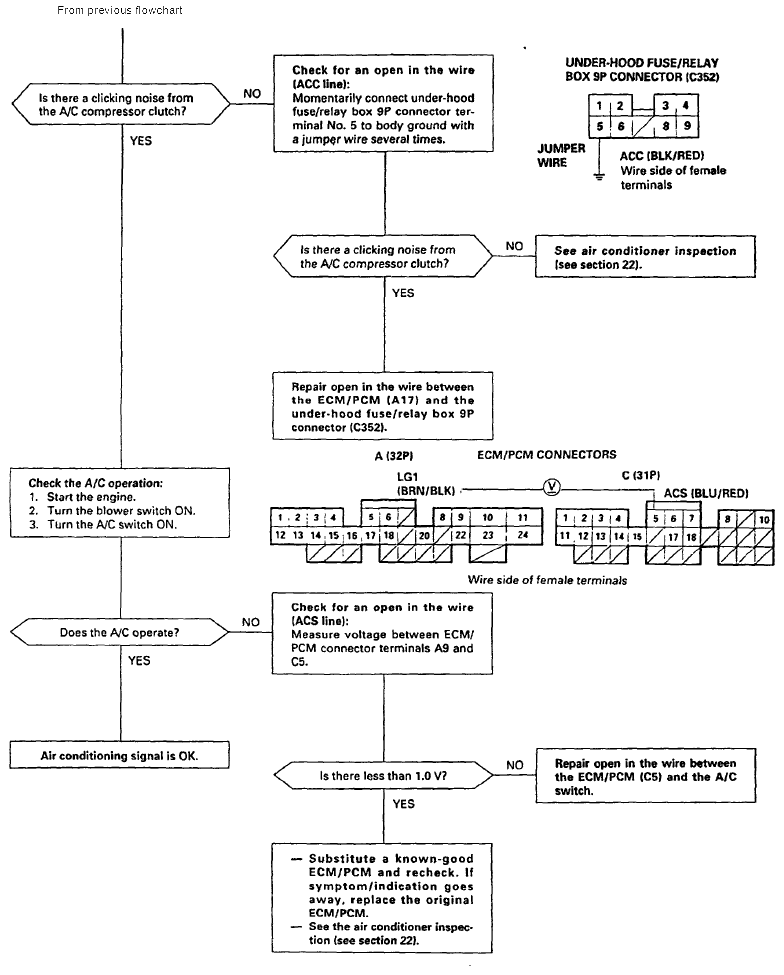

Fig 2: Air Conditioning Signal Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
