Engine Control Module/Powertrain Control Module (ECM/PCM)
Engine Control Module/Powertrain Control Module (ECM/PCM)

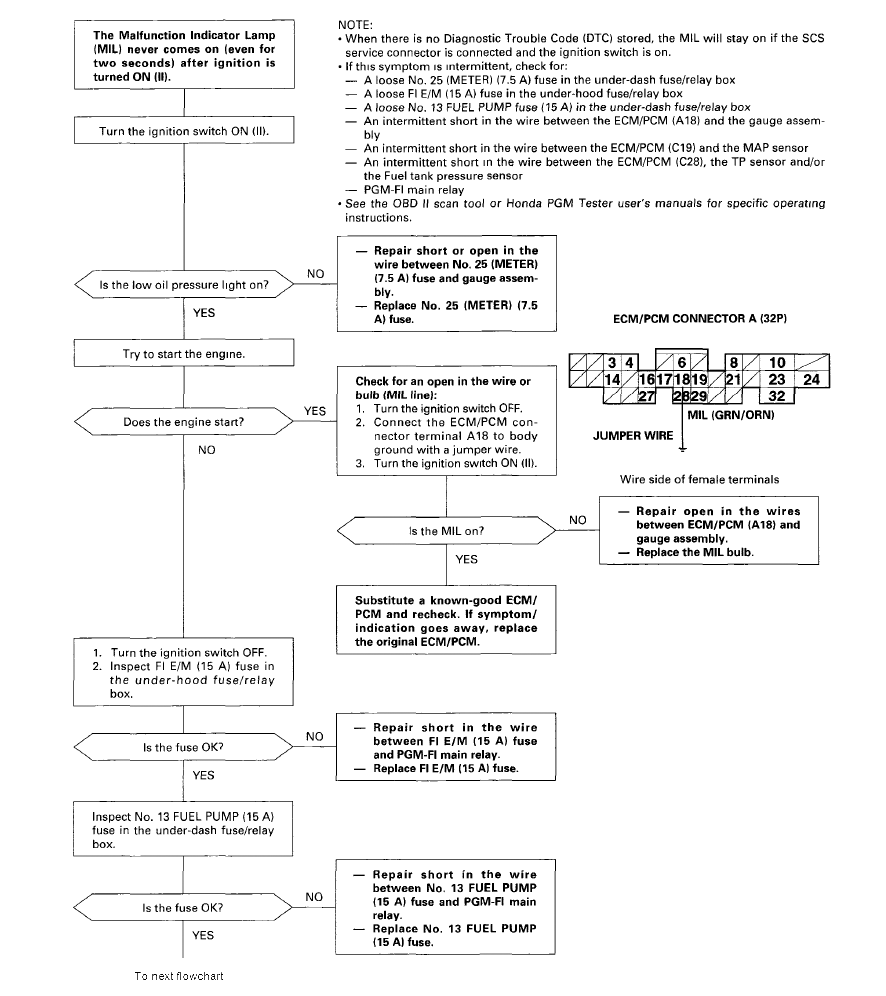

Fig 1: ECM/PCM Troubleshooting Flowchart (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

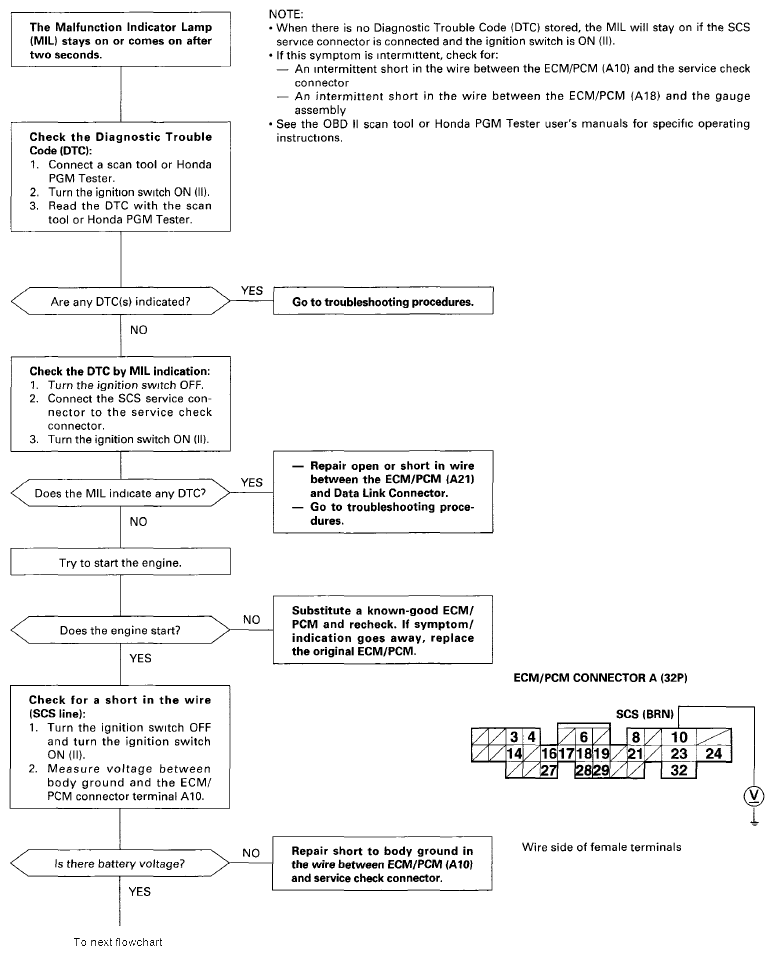

Fig 2: ECM/PCM Troubleshooting Flowchart (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

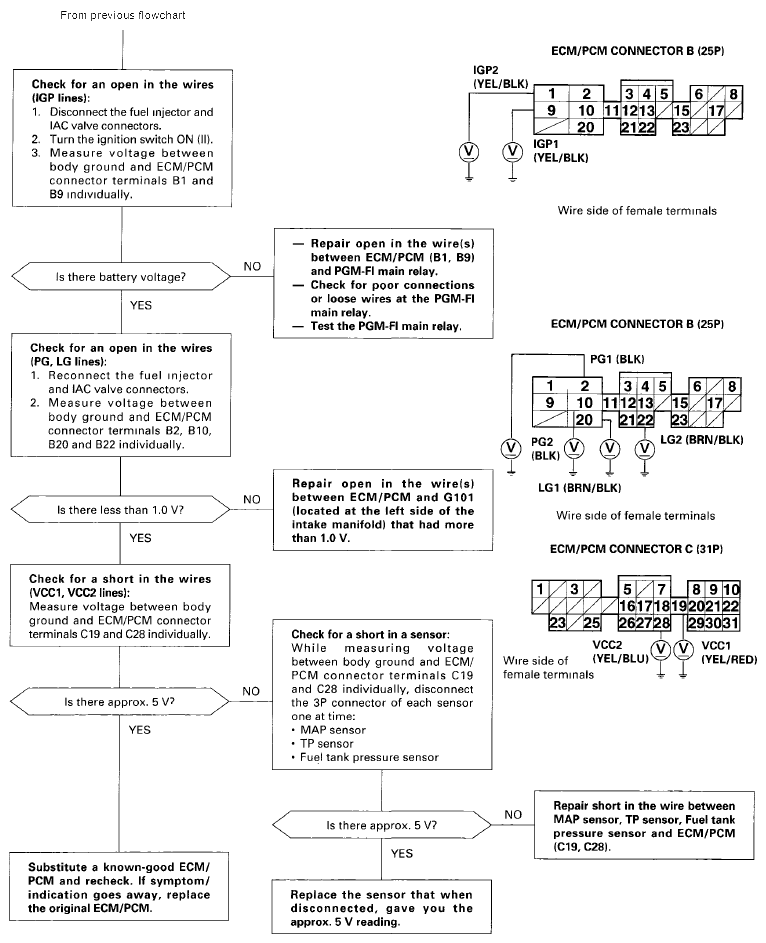

Fig 3: ECM/PCM Troubleshooting Flowchart (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

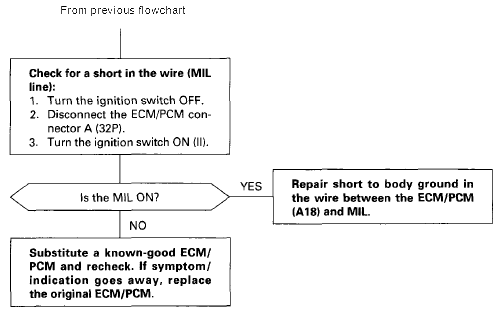

Fig 4: ECM/PCM Troubleshooting Flowchart (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
