Idle Control System
›
Troubleshooting Flowcharts
›
Idle Control System
›
DTC P0505
›
Troubleshooting Flowchart
Troubleshooting Flowchart

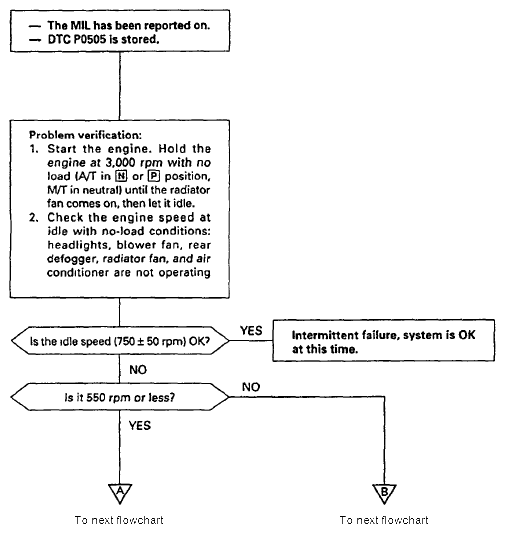

Fig 1: Idle Control System - Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

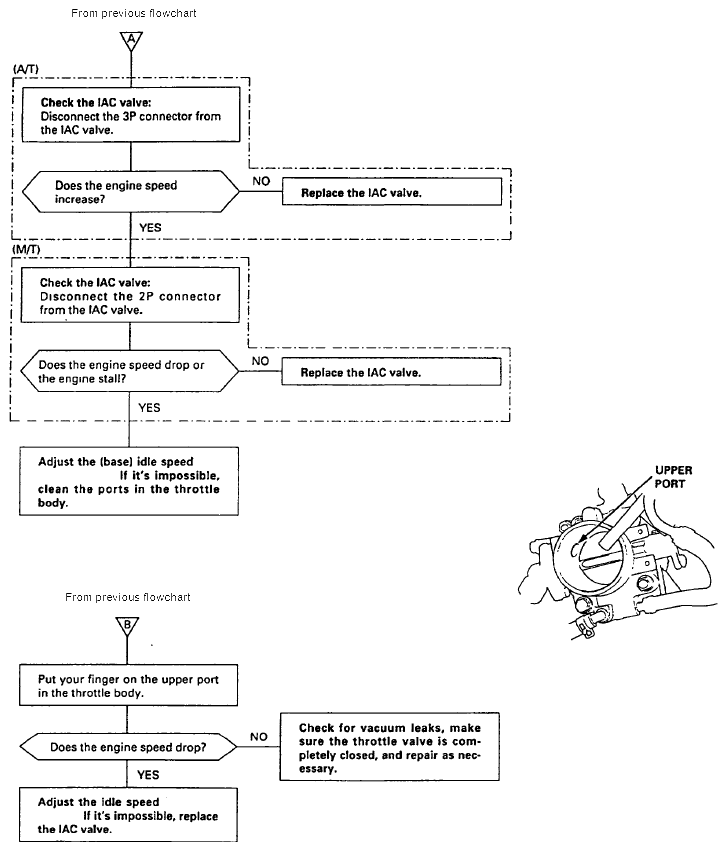

Fig 2: Idle Control System - Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
