Piston Pins: Installation

  1. Use a hydraulic press for installation.
    • When pressing the pin in or out, be sure you position the recessed flat on the piston against the lugs on the base attachment.
      Fig 1: Identifying Connecting Rod Oil Hole
      G06289378Courtesy of AMERICAN HONDA MOTOR CO., INC.

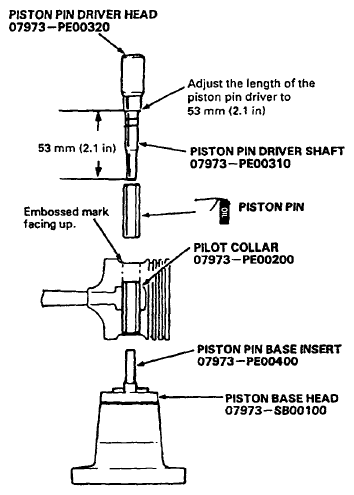

      Fig 2: Identifying Special Tool
      G06289379Courtesy of AMERICAN HONDA MOTOR CO., INC.
