Alternator (ALT) FR Signal
›
1997-98 Models
1997-98 Models

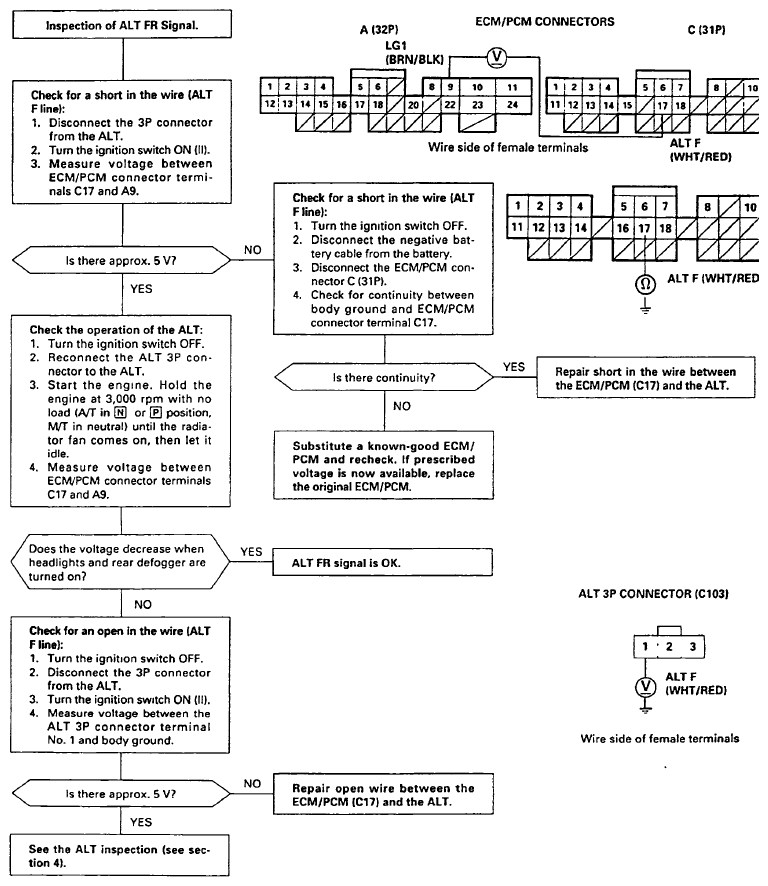

Fig 1: Alternator FR Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
