[P] Position

Hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft.

The countershaft is locked by the parking pawl interlocking the parking gear.

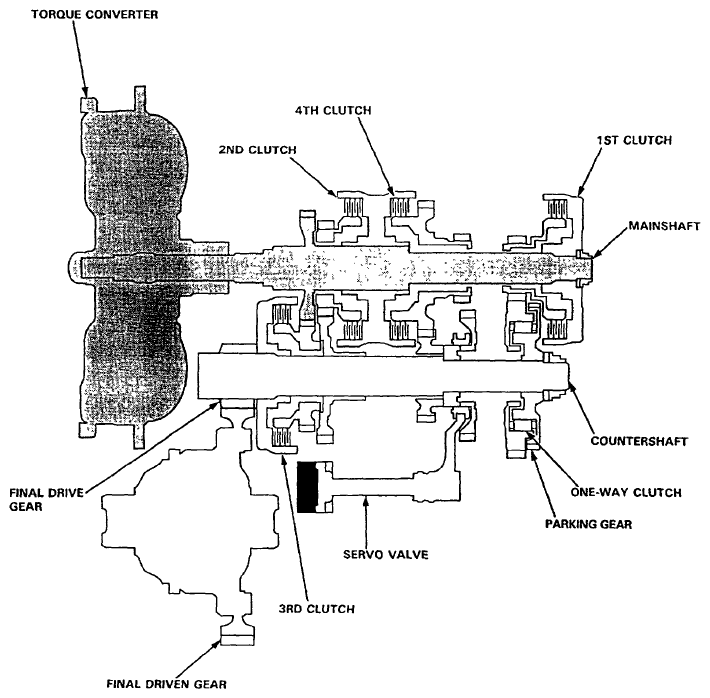

Fig 1: Power Flow Diagram - P Position
G06288179Courtesy of AMERICAN HONDA MOTOR CO., INC.
