Automatic Transmission
›
Description
›
Power Flow
›
Notes
Power Flow: Notes

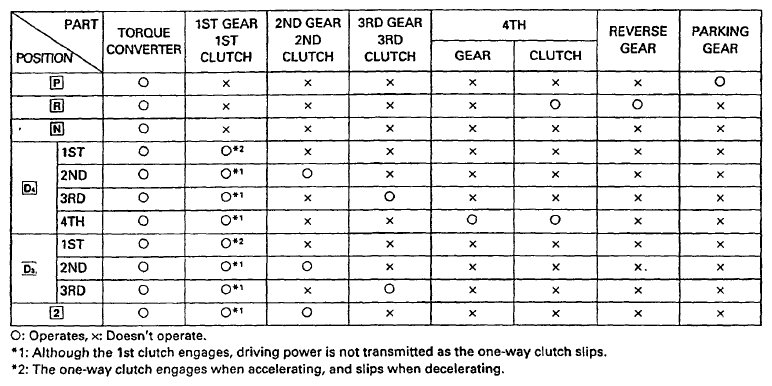

Fig 1: Gear Position Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
